GF-161 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE 3PDT 3A 125V
| Part | Switch Travel | Mechanical Life | Electrical Life | Actuator Material | Actuator Length [x] | Actuator Type | Contact Timing | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Voltage Rating - AC | Voltage Rating - DC | Mounting Type | Switch Function | Contact Material | Current Rating (Amps) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 3.61 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 5.08 mm | Standard | Not Specified | Solder Lug | -10 °C | 104 °C | 3PDT | 125 V | 125 VDC | Panel Mount | On-On | Copper | 3 A 500 mA | Silver |
 CW Industries | 3.61 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 5.08 mm | Standard | Not Specified | Solder Lug | -10 °C | 104 °C | 3PDT | 125 V | 125 VDC | Panel Mount | On-On | Copper | 500 mA | Silver |

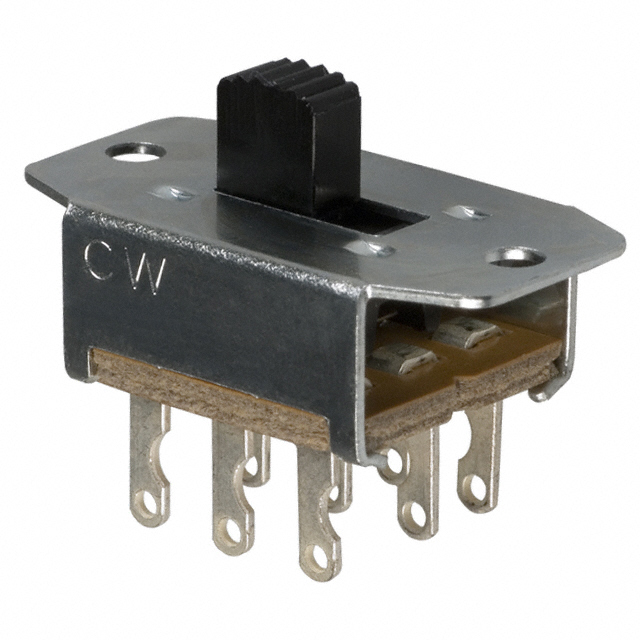

CW Industries | 3.61 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 1.52 mm | Screwdriver Slot | Not Specified | Solder Lug | -10 °C | 104 °C | 3PDT | 125 V | 125 VDC | Panel Mount | On-On (Line Voltage Selector) | Copper | 500 mA | Silver |

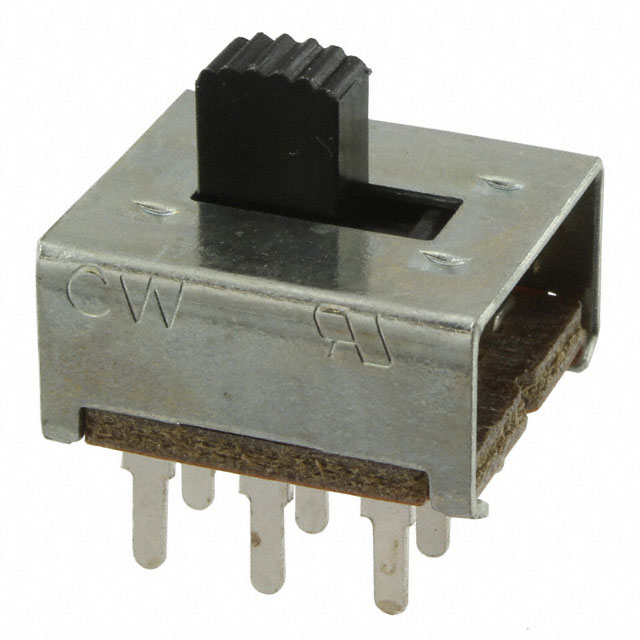

 CW Industries | 3.61 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 5.08 mm | Standard | Not Specified | PC Pin | -10 °C | 104 °C | 3PDT | 125 V | 125 VDC | Through Hole | On-On | Copper | 500 mA | Silver |
CW Industries | 3.61 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 5.08 mm | Standard | Not Specified | PC Pin | -10 °C | 104 °C | 3PDT | 125 V | 125 VDC | Panel Mount | On-On | Copper | 500 mA | Silver |
CW Industries | 3.61 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | 8.33 mm | Standard | Not Specified | PC Pin | -10 °C | 104 °C | 3PDT | 125 V | 125 VDC | Panel Mount | On-On | Copper | 500 mA | Silver |
