DFK-PC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 2 POS 7.62MM PITCH FEED THROUGH HEADER

Part	Rear Panel Wire Connection	Front Panel Wire Connection	Number of Levels	Features	Width [x]	Width [x]	Voltage - UL	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Pitch	Pitch	Current - UL	Color	Positions Per Level	Panel Mount Type	Wire Gauge [Max]	Wire Gauge [Min]	Width	Width	Width [y]	Width [y]
Phoenix Contact 1716069	PCB Pins - Right Angle	Header Male Pins	1	Shield Connection Feedthrough Threaded Mating Lock	49.86 mm	1.963 in	300 V	1 mm	3 mm	0.118 in	0.039 in	0.3 in	7.62 mm	41 A	Green	2	2 Piece Snap Lock - Front Flange
Phoenix Contact 1716726	PCB Pins - Right Angle	Header Male Pins	1	Shield Connection Feedthrough Threaded Mating Lock	49.86 mm	1.963 in		1 mm	3 mm	0.118 in	0.039 in	0.3 in	7.62 mm	41 A	Green	2	2 Piece Snap Lock - Front Flange	24 AWG	8 AWG

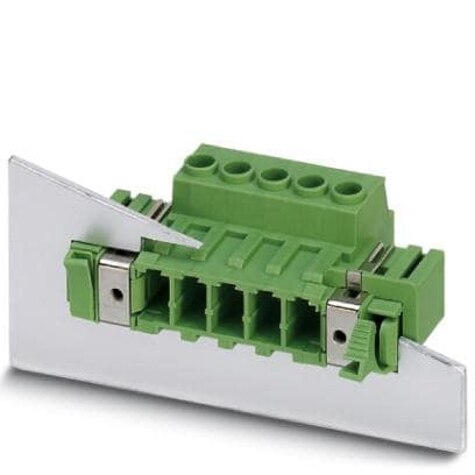

Phoenix Contact 1716632	Bolt/Screw Clamp - Wire Entry Parallel to Panel	Header Male Pins	1	Shield Connection Front Side Threaded Mating Lock				1 mm	3 mm	0.118 in	0.039 in	0.3 in	7.62 mm	41 A	Green	4	2 Piece Snap Lock - Front Flange	24 AWG	8 AWG	2.563 in	65.1 mm
Phoenix Contact 1703645	Bolt/Screw Clamp - Wire Entry 90° to Panel	Header Male Pins	1	Shield Connection Feedthrough Threaded Mating Lock				1 mm	3 mm	0.118 in	0.039 in	0.4 in	10.16 mm	55 A	Green	5	2 Piece Snap Lock - Front Flange	20 AWG	6 AWG			3.392 "	86.16 mm

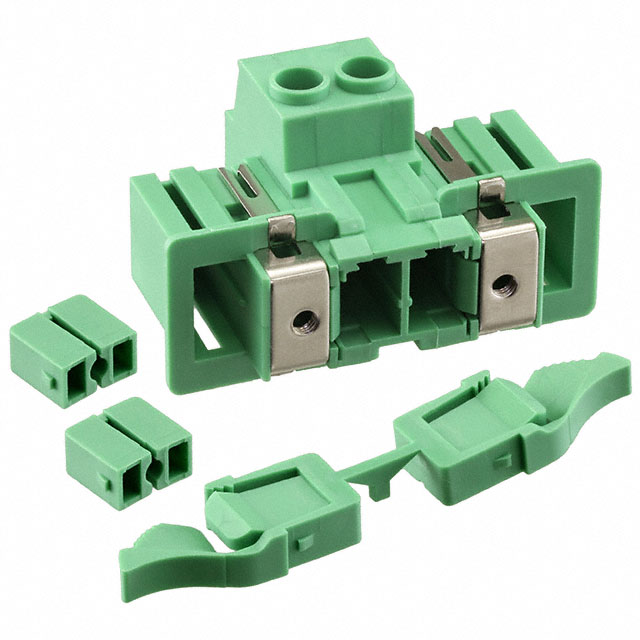

Phoenix Contact 1716616	Bolt/Screw Clamp - Wire Entry Parallel to Panel	Header Male Pins	1	Shield Connection Front Side Threaded Mating Lock	49.86 mm	1.963 in		1 mm	3 mm	0.118 in	0.039 in	0.3 in	7.62 mm	41 A	Green	2	2 Piece Snap Lock - Front Flange	24 AWG	8 AWG

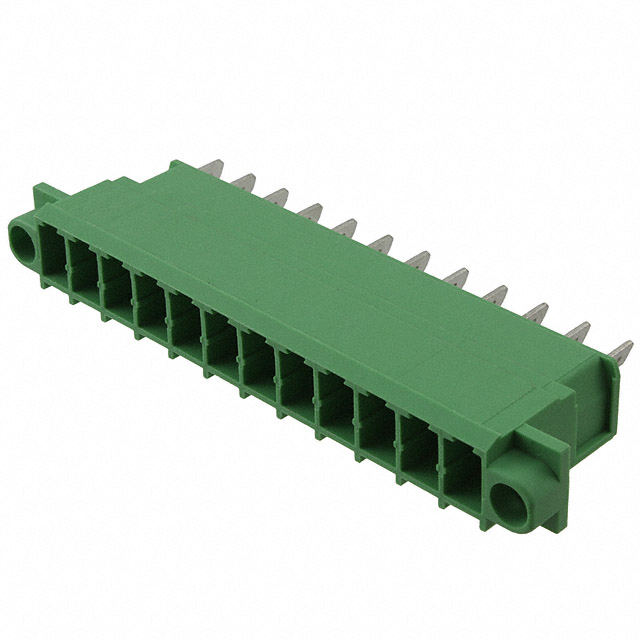

Phoenix Contact 1861251		Header Male Pins	1	Threaded Mating Lock			300 V	1 mm	5 mm	0.197 in	0.039 in	0.3 in	7.62 mm	20 A	Green	12	Screw Mount - Front Flange			4.199 in	106.66 mm

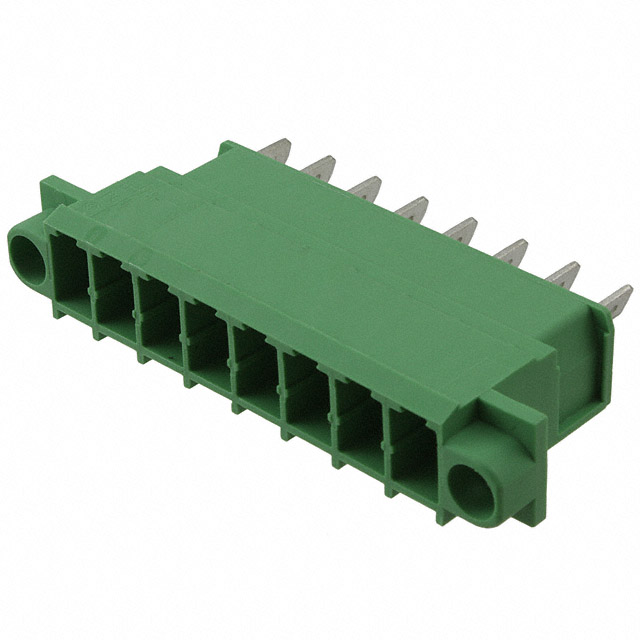

Phoenix Contact 1861219		Header Male Pins	1	Threaded Mating Lock	76.18 mm	2.999 in	300 V	1 mm	5 mm	0.197 in	0.039 in	0.3 in	7.62 mm	20 A	Green	8	Screw Mount - Front Flange

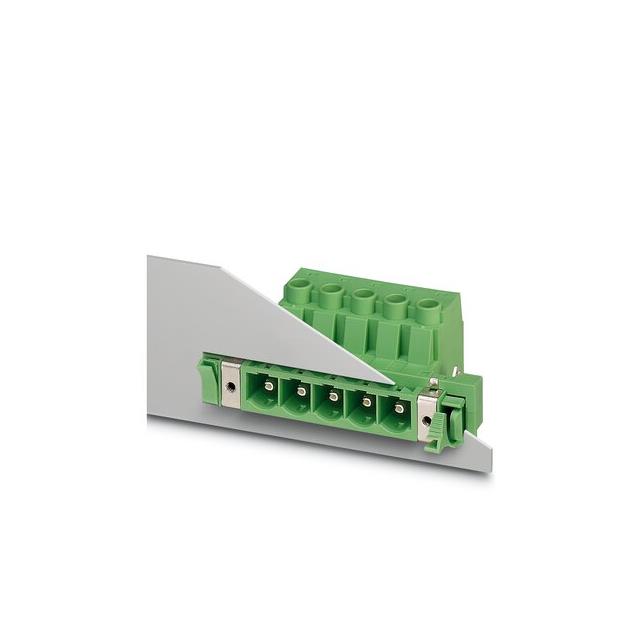

Phoenix Contact 1703658	Bolt/Screw Clamp - Wire Entry 90° to Panel	Header Male Pins	1	Shield Connection Feedthrough Threaded Mating Lock	96.32 mm	3.792 "		1 mm	3 mm	0.118 in	0.039 in	0.4 in	10.16 mm	55 A	Green	6	2 Piece Snap Lock - Front Flange	20 AWG	6 AWG
Phoenix Contact 1727676	PCB Pins - Right Angle	Header Male Pins	1		109.32 mm	4.304 in	300 V	1 mm	3 mm	0.118 in	0.039 in	0.3 in	7.62 mm	41 A	Green	11	2 Piece Snap Lock - Front Flange

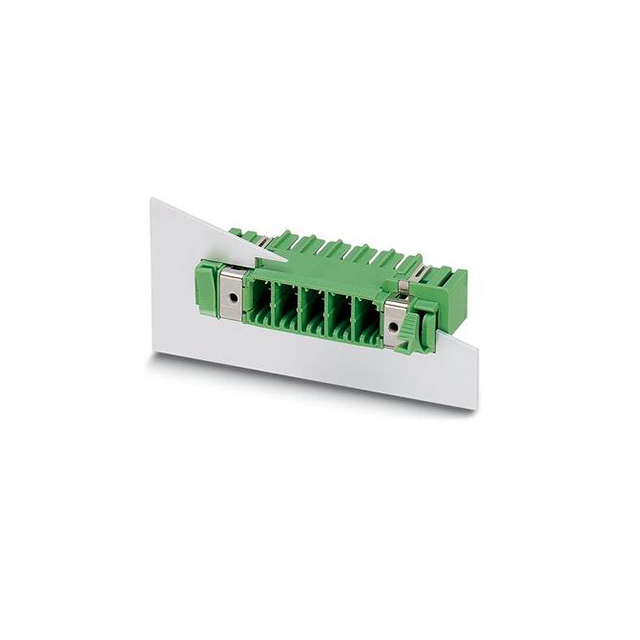

Phoenix Contact 1727760	PCB Pins - Right Angle	Header Male Pins	1	Shield Connection Front Side Threaded Mating Lock	103.2 mm	4.063 in	300 V	1 mm	3 mm	0.118 in	0.039 in	0.3 in	7.62 mm	41 A	Green	9	2 Piece Snap Lock - Front Flange
