SKN.M1 Series
Manufacturer: LEMO
Beta
⌘K

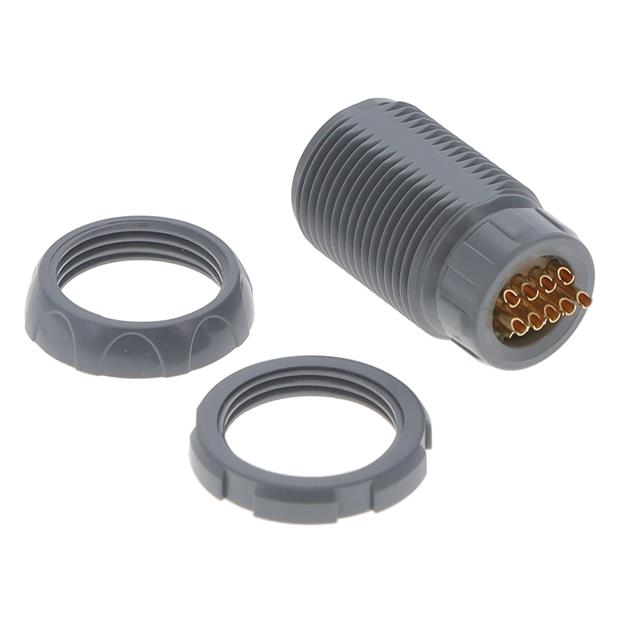

CONN RCPT FMALE 13P SOLDER CUP
| Part | Applications | Ingress Protection | Color | Shell Material | Current Rating (Amps) | Shielding | Primary Material | Contact Finish - Mating | Number of Positions | Insert Material | Orientation | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Fastening Type | Mounting Feature | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Gray | Sulfone | 4 A | Unshielded | Plastic | Gold | 13 | Polyetheretherketone (PEEK) | N (Normal) | M13 | 170 °C | -50 °C | Panel Mount | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets | |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Blue Gray | Sulfone | 4.2 A | Unshielded | Plastic | Gold | 10 | Polyetheretherketone (PEEK) | N (Normal) | M10 | 170 °C | -50 °C | Panel Mount Right Angle Through Hole | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets | Solder |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Gray | Sulfone | 4 A | Unshielded | Plastic | Gold | 13 | Polyetheretherketone (PEEK) | N (Normal) | M13 | 170 °C | -50 °C | Panel Mount | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets | Crimp |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Black | Sulfone | 3 A | Unshielded | Plastic | Gold | 16 | Polyetheretherketone (PEEK) | N (Normal) | M16 | 170 °C | -50 °C | Panel Mount | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets | |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Gray | Sulfone | 2.5 A | Unshielded | Plastic | Gold | 18 | Polyetheretherketone (PEEK) | N (Normal) | M18 | 170 °C | -50 °C | Panel Mount | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets | |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Gray | Sulfone | 4.2 A | Unshielded | Plastic | Gold | 10 | Polyetheretherketone (PEEK) | N (Normal) | M10 | 170 °C | -50 °C | Panel Mount Through Hole | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets | Solder |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Gray | Sulfone | 4 A | Unshielded | Plastic | Gold | 13 | Polyetheretherketone (PEEK) | N (Normal) | M13 | 170 °C | -50 °C | Panel Mount Right Angle Through Hole | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets | Solder |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Gray | Sulfone | 4 A | Unshielded | Plastic | Gold | 13 | Polyetheretherketone (PEEK) | N (Normal) | M13 | 170 °C | -50 °C | Panel Mount Through Hole | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets | Solder |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | White | Sulfone | 4 A | Unshielded | Plastic | Gold | 13 | Polyetheretherketone (PEEK) | N (Normal) | M13 | 170 °C | -50 °C | Panel Mount | Push-Pull | Front and Rear Side Nut | Receptacle Female Sockets |
