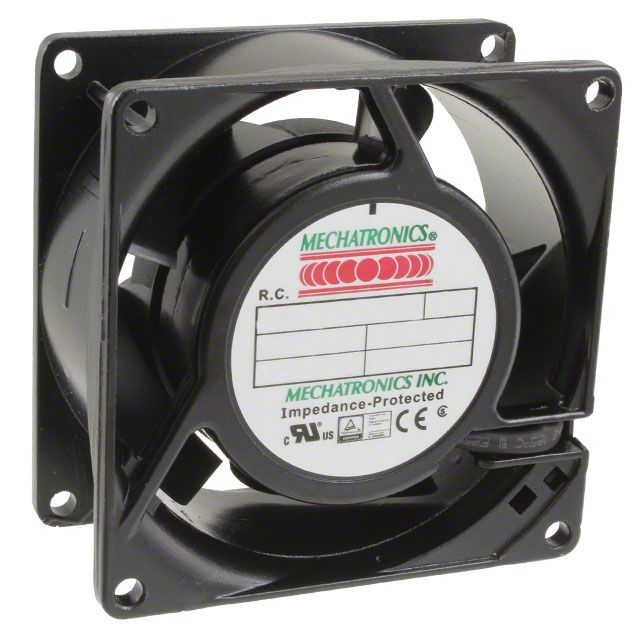

UF80A Series

Catalog

FAN AXIAL 80X38MM 230VAC WIRE

Part	Current Rating (Amps)	Material - Blade	Material - Frame	Air Flow	Air Flow	Voltage - Rated	Termination	Width [y]	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Noise	Fan Type	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Termination	Features	Weight	Weight
Mechatronics Fan Group UF80A23-SWHR	60 mA	Polybutylene Terephthalate (PBT)	Aluminum	30 CFM	0.84 mł/min	230 VAC	2 Wire Leads	38 mm	0.617 lb	279.87 g	54.8 Pa	0.22 in H2O	36 dB	Tubeaxial	CE cUL TUV UL	80 mm	80 mm	Sleeve	12 W	-40 C	70 °C	70 °C	-40 °C	3000 RPM
Mechatronics Fan Group UF80AM12-BTHR-F		Metal	Aluminum	34 CFM	0.952 m³/min	115 VAC		38 mm			64.8 Pa	0.26 in H2O	40 dB(A)	Tubeaxial		80 mm	80 mm	Ball	11 W	-40 C		90 °C		3250 RPM	2

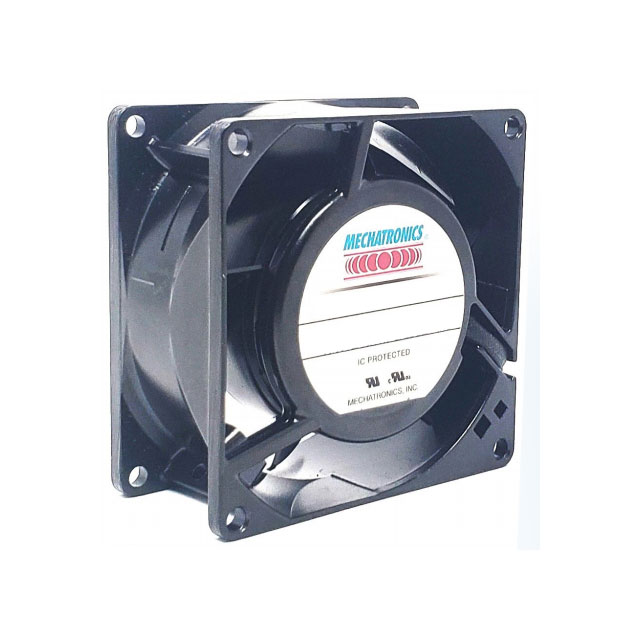

Mechatronics Fan Group UF80AM23-BTHR-F	70 mA	Metal	Aluminum	34 CFM	0.952 m³/min	230 VAC		38 mm			64.8 Pa	0.26 in H2O	40 dB(A)	Tubeaxial		80 mm	80 mm	Ball	11 W	-40 C		90 °C		3250 RPM	2
Mechatronics Fan Group UF80A12-BWHR-T1	120 mA	Polybutylene Terephthalate (PBT)		30 CFM	0.84 mł/min	115 VAC	2 Wire Leads	38 mm			54.8 Pa	0.22 in H2O	36 dB	Tubeaxial	CE cUL TUV UL	80 mm	80 mm	Ball	9 W	-40 C	70 °C	70 °C	-40 °C	3000 RPM		Thermal Overload Protector (TOP)	0.617 lb	280 g
Mechatronics Fan Group UF80A23-BTLR	50 mA	Polybutylene Terephthalate (PBT)	Aluminum	25 CFM	0.7 mł/min	230 VAC		38 mm	0.617 lb	279.87 g	39.8 Pa	0.16 in H2O	32 dB	Tubeaxial	CE cUL TUV UL	80 mm	80 mm	Ball	12 W	-40 C	70 °C	70 °C	-40 °C	2400 RPM	2

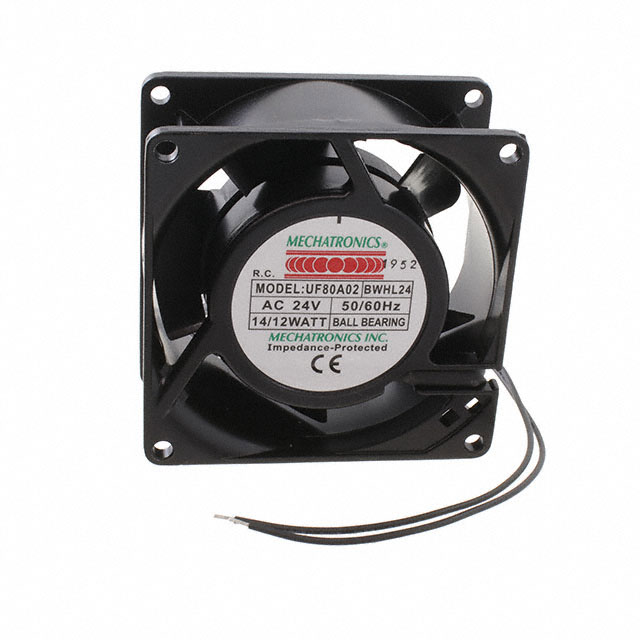

Mechatronics Fan Group UF80A02-BWHR-L24		Polybutylene Terephthalate (PBT)				24 VAC	2 Wire Leads	38 mm						Tubeaxial	CE	80 mm	80 mm	Ball		-40 C	70 °C	70 °C	-40 °C
Mechatronics Fan Group UF80A12-BWLR	100 mA	Polybutylene Terephthalate (PBT)	Aluminum	25 CFM	0.7 mł/min	115 VAC	2 Wire Leads	38 mm	0.617 lb	279.87 g	39.8 Pa	0.16 in H2O	32 dB	Tubeaxial	CE cUL TUV UL	80 mm	80 mm	Ball	9 W	-40 C	70 °C	70 °C	-40 °C	2400 RPM

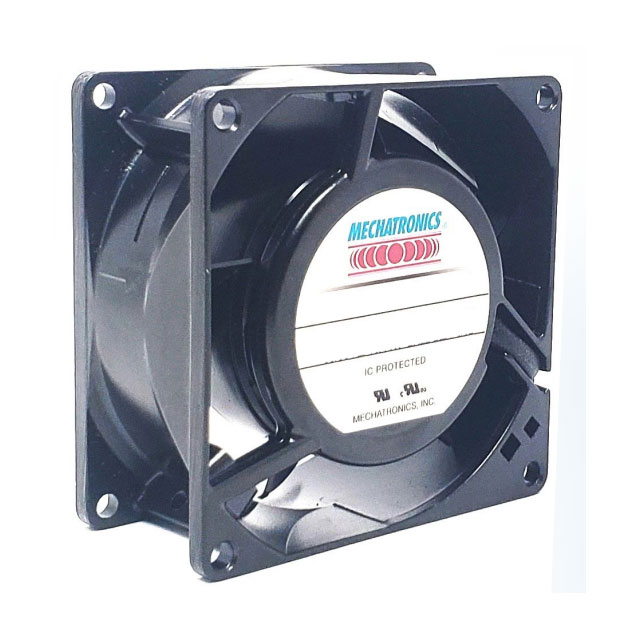

Mechatronics Fan Group UF80AM12-BWHR-F		Metal	Aluminum	34 CFM	0.952 m³/min	115 VAC	2 Wire Leads	38 mm			64.8 Pa	0.26 in H2O	40 dB(A)	Tubeaxial		80 mm	80 mm	Ball	11 W	-40 C		90 °C		3250 RPM
Mechatronics Fan Group UF80A12-BWHR	120 mA	Polybutylene Terephthalate (PBT)	Aluminum	30 CFM	0.84 mł/min	115 VAC	2 Wire Leads	38 mm	0.617 lb	279.87 g	54.8 Pa	0.22 in H2O	36 dB	Tubeaxial	CE cUL TUV UL	80 mm	80 mm	Ball	9 W	-40 C	70 °C	70 °C	-40 °C	3000 RPM
Mechatronics Fan Group UF80A12-BTLR	100 mA	Polybutylene Terephthalate (PBT)	Aluminum	25 CFM	0.7 mł/min	115 VAC		38 mm	0.617 lb	279.87 g	39.8 Pa	0.16 in H2O	32 dB	Tubeaxial	CE cUL TUV UL	80 mm	80 mm	Ball	9 W	-40 C	70 °C	70 °C	-40 °C	2400 RPM	2
