3360P Series
Manufacturer: Bourns Inc.
Beta
⌘K

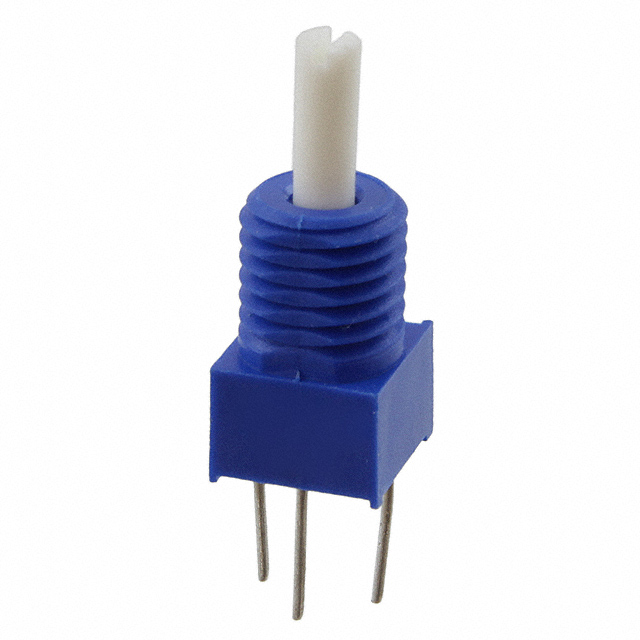

POT 1K OHM 1/4W PLASTIC LINEAR
| Part | Termination Style | Rotation | Resistive Material | Built in Switch | Resistance (Ohms) | Power (Watts) | Power (Watts) | Tolerance | Number of Turns | Taper | Adjustment Type | Actuator Type | Actuator Length [x] | Actuator Length [x] | Mounting Type | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Temperature Coefficient | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Bushing Thread | Number of Gangs | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 1k | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | 1 MΩ | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | 20 kOhms | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 100k | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | 500 kOhms | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 10k | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | 2 kOhms | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | 20 kOhms | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 1k | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | |
Bourns Inc. | PC Pins | 310 ° | Conductive Plastic | None | 0.25 W | 0.25 W | 20 % | 1 | Linear | Top Adjustment | Slotted | 12.7 mm | 0.5 in | Panel Mount | 6.4 mm | 0.252 " | 0.264 " | 6.7 mm | 1000 ppm/°C | 0.093 in | 2.36 mm | 1/4-32 | 1 | 1 MΩ |
