PPTC102 Series

Catalog

CONN HDR 20POS 0.1 TIN PCB R/A

Part	Insulation Material	Contact Material	Contact Shape	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Post	Connector Type	Insulation Color	Number of Positions	Material Flammability Rating	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Current Rating (Amps)	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

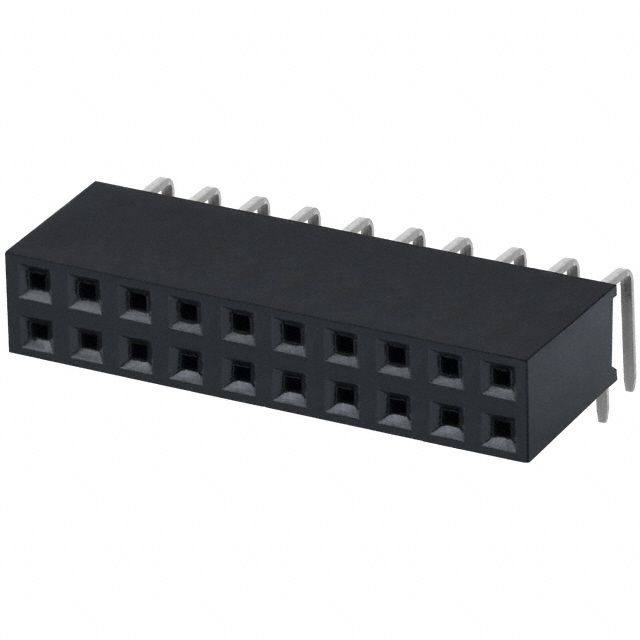

Sullins Connector Solutions PPTC102LJBN-RC	Polyester	Phosphor Bronze	Square	Right Angle Through Hole	-40 C	105 ░C	0.124 in	3.15 mm	Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Push-Pull	Tin	Header	Black	20	UL94 V-0	2	0.2 in	5.08 mm	250 V	3 A	Female Socket

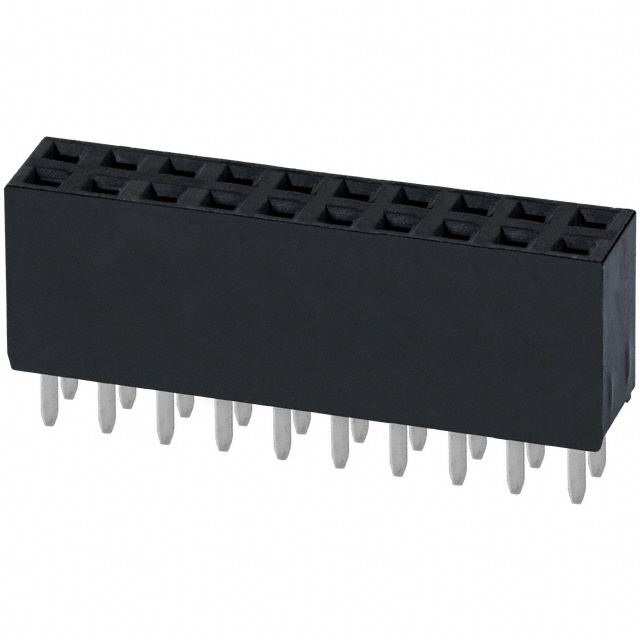

Sullins Connector Solutions PPTC102LFBN	Polyester	Phosphor Bronze	Square	Through Hole	-40 C	105 ░C			Solder	0.1 in	2.54 mm	All	0.1 "	2.54 mm	Push-Pull	Tin	Header	Black	20	UL94 V-0	2			250 V	3 A	Female Socket	0.126 "	3.2 mm	0.335 "	8.51 mm
