CTM-14 Series

Catalog

LED COB CTM14 WHITE

Part	Configuration	Luminous Flux @ Current/Temperature	Current - Max [Max]	Type	Voltage - Forward (Vf) (Typ)	Height [z]	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Color	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	CCT (K)	Temperature - Test	Lens Type	CCT (K) [Min]	CCT (K) [Max]	Current - Test	Lumens/Watt @ Current - Test	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	CCT (K)	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Wavelength

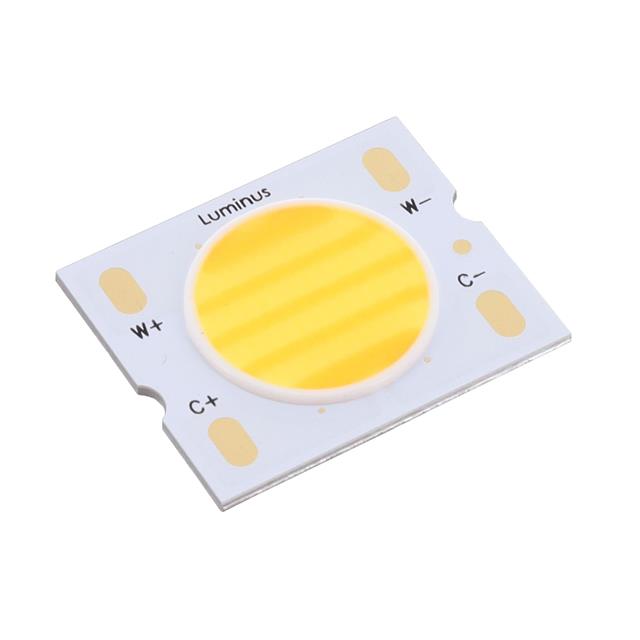

Luminus Devices Inc. CTM-14-6527-90-36-TWD2	Rectangle	3040 lm 3500 lm	900 mA	Chip On Board (COB)	33 V	1.4 mm	90	9.3 mm	White Cool White Warm	15 mm	12 mm	130 °	2700K 6500K	85 °C	Flat

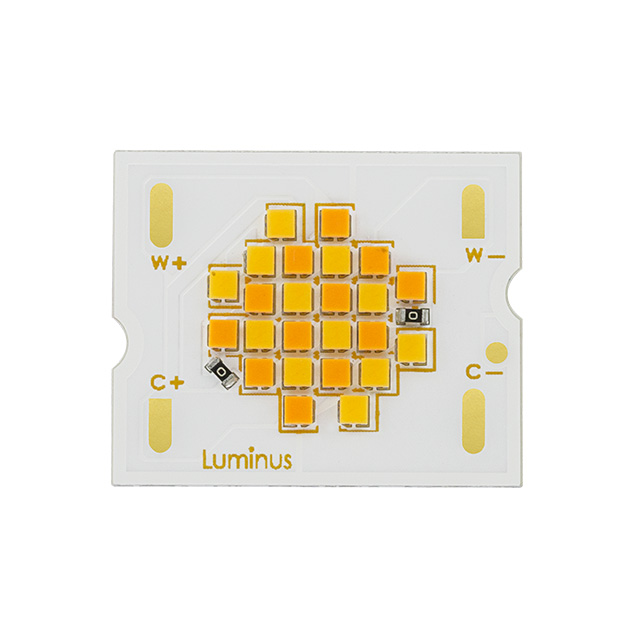

Luminus Devices Inc. CTM-14-6527-90-36-TW01	Rectangle	1255 lm 1420 lm	440 mA	LED Module	37 V	1.58 mm	90	14.5 mm	White Cool White Warm	24 mm	20 mm	130 °		85 °C	Flat	2700 K	6500 K	400 mA	85 lm/W 96 lm/W

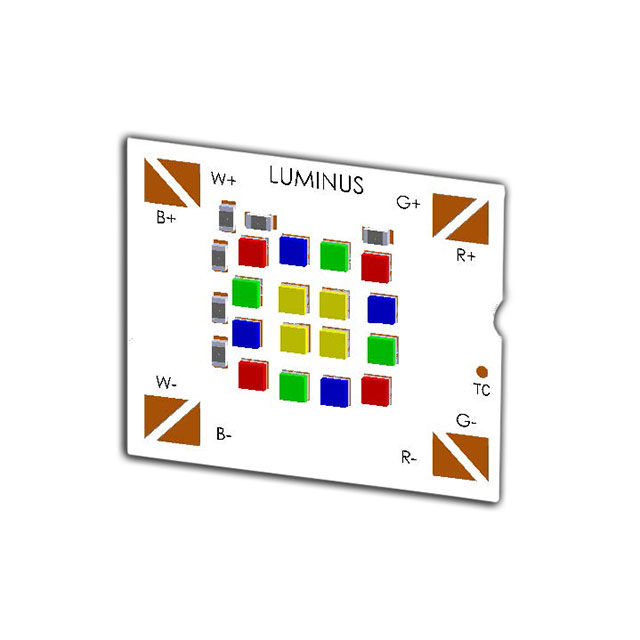

Luminus Devices Inc. CTM-14-RGBW-24-TW01	Rectangle		250 mA	LED Module	24 V	1.58 mm	90	14.5 mm	Blue Green Red White	24 mm	20 mm	130 °		85 °C	Flat				20 lm/W 24 lm/W 91 lm/W 135 lm/W	200 mA	200 mA	200 mA	200 mA	2700 K	436 lm	115 lm	94 lm	650 lm	458 nm 530 nm 625 nm
