078048 Series
Manufacturer: Molex
Beta
⌘K

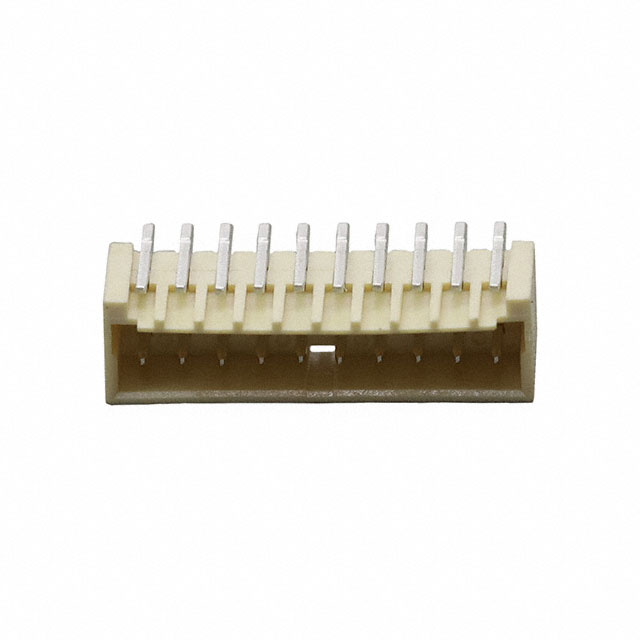

CONN HEADER SMD R/A 10POS 1.5MM
| Part | Termination | Mounting Type | Insulation Height | Insulation Height | Connector Type | Insulation Color | Contact Material | Contact Type | Number of Rows | Style | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Material Flammability Rating | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Number of Positions | Number of Positions Loaded | Fastening Type | Voltage Rating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Solder | Surface Mount Right Angle | 4.45 mm | 0.175 in | Header | Beige | Brass Alloy | Male Pin | 1 | Board to Cable/Wire | Shrouded - 4 Wall | 105 ░C | -55 °C | 2.54 çm | 100 çin | Tin | UL94 V-0 | 2.5 A | 0.106 in | 2.7 mm | 10 | All | Push-Pull | 250 VAC | Square |
Molex | Solder | Surface Mount Right Angle | 4.45 mm | 0.175 in | Header | Beige | Brass Alloy | Male Pin | 1 | Board to Cable/Wire | Shrouded - 4 Wall | 105 ░C | -55 °C | 2.54 çm | 100 çin | Tin | UL94 V-0 | 2.5 A | 0.106 in | 2.7 mm | 4 | All | Push-Pull | 250 VAC | Square |
