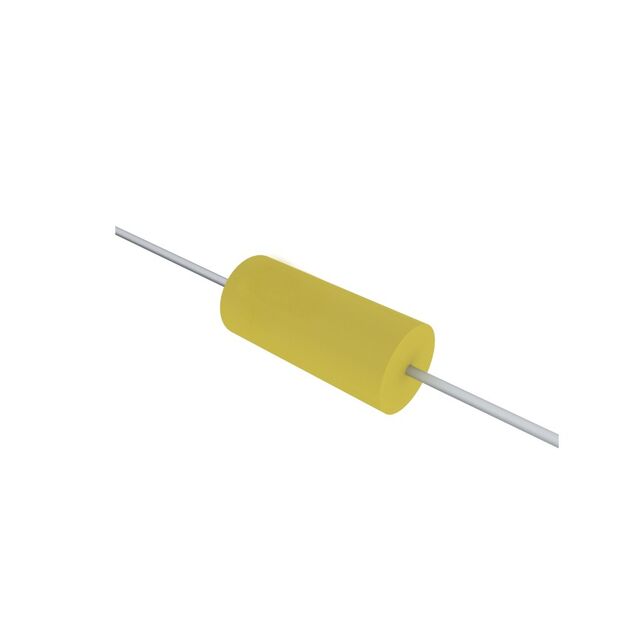

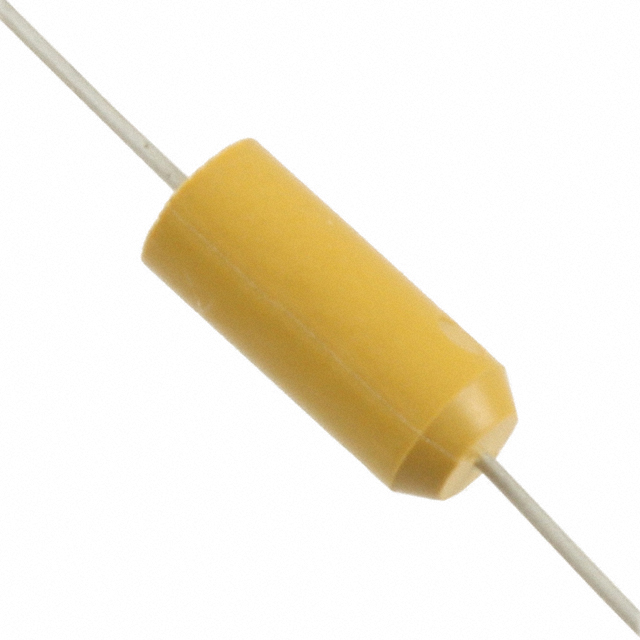

T322D Series

Manufacturer: KEMET

Catalog

CAP TANT 15UF 10% 25V AXIAL

Part	Tolerance	Mounting Type	ESR (Equivalent Series Resistance)	Voltage - Rated	Capacitance	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Features	Type	Manufacturer Size Code	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
KEMET T322D156K025AS	10 %	Through Hole	2 Ohms	25 VDC	15 µF	0.42 in	0.18 in	4.57 mm	10.67 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D476K006AT	10 %	Through Hole	2 Ohms	6 VDC	47 µF	0.42 in	0.18 in	4.57 mm	10.67 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D685K035AT	10 %	Through Hole	2.5 Ohm	35 V	6.8 µF	0.42 in	0.18 in	4.57 mm	10.67 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D336K010AT	10 %	Through Hole	2.1 Ohm	10 V	33 ÁF	0.42 in	0.18 in	4.57 mm	10.67 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D156M020AT	20 %	Through Hole	2.3 Ohm	20 V	15 µF	0.18 in	0.18 in	4.57 mm	4.57 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D106K035AS	10 %	Through Hole	2 Ohms	35 V	10 µF	0.42 in	0.18 in	4.57 mm	10.67 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D226K020AT	10 %	Through Hole	1.8 Ohm	20 V	22 µF	0.42 in	0.18 in	4.57 mm	10.67 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D106M035AT	20 %	Through Hole	2 Ohms	35 V	10 µF	0.42 in	0.18 in	4.57 mm	10.67 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D106M035AS	20 %	Through Hole	2000 mOhm	35 V	10 µF	0.18 in	0.18 in	4.57 mm	4.57 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
KEMET T322D475K050AS	10 %	Through Hole	2.5 Ohm	50 VDC	4.7 µF	0.42 in	0.18 in	4.57 mm	10.67 mm	General Purpose	Molded	D	Axial	-55 C	125 °C
