FDSD036 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC 125UM SINGLEMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Tensile Strength | Style | Cladding Diameter [diameter] | Jacket Color | Core Diameter [diameter] | Features | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

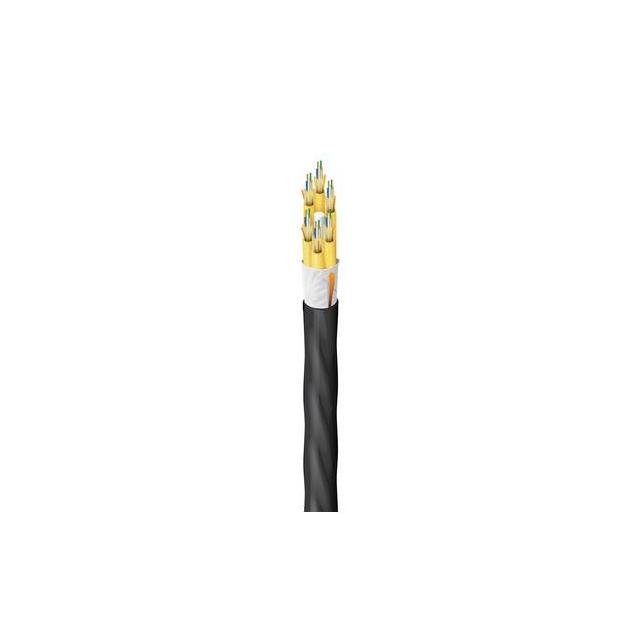

 Belden Inc. | 70 °C | -40 C | Singlemode | Poly-Vinyl Chloride (PVC) | 0.632 in | 16.05 mm | OFNP | 81.6 kg | Multiple Fibers | 125 µm | Black | 9 µm | 36 Fibers Rip Cord | |

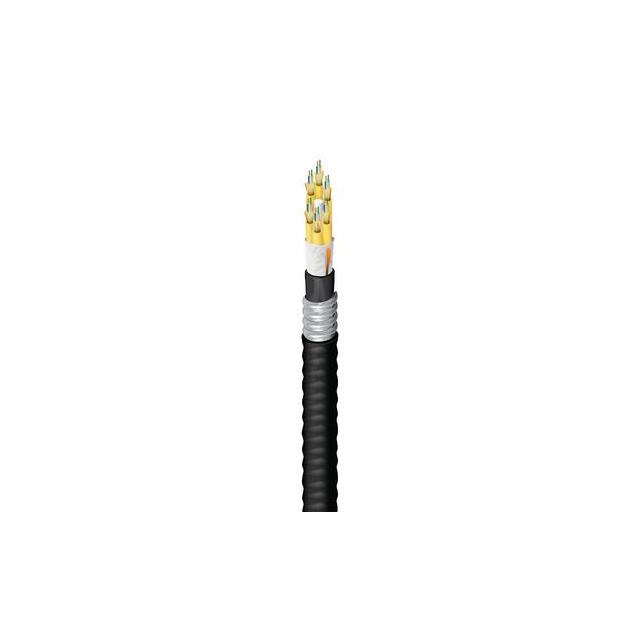

 Belden Inc. | 70 °C | -40 C | Singlemode | Poly-Vinyl Chloride (PVC) | 1.03 in | 26.16 mm | OFCR | 81.6 kg | Multiple Fibers | 125 µm | Black | 9 µm | Armored | 36 Cells |
 Belden Inc. | ||||||||||||||
Belden Inc. | 70 °C | -40 C | Singlemode | Poly-Vinyl Chloride (PVC) | 0.986 in | 25.04 mm | OFCP | 81.6 kg | Multiple Fibers | 125 µm | Black | 9 µm | Armored | 36 Cells |
Belden Inc. | 70 °C | -40 C | Singlemode | Poly-Vinyl Chloride (PVC) | 0.634 in | 16.1 mm | OFNR | 81.6 kg | Multiple Fibers | 125 µm | Black | 9 µm | 36 Fibers Rip Cord |
