895-055 Series
Manufacturer: EDAC Inc.
Beta
⌘K

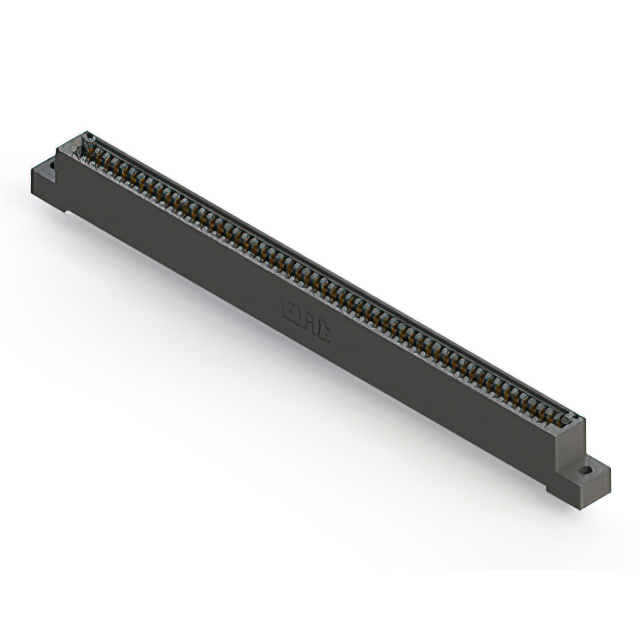

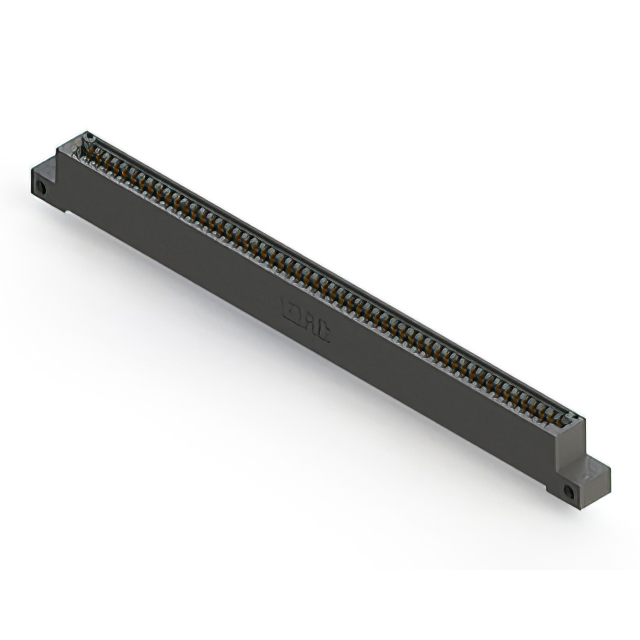

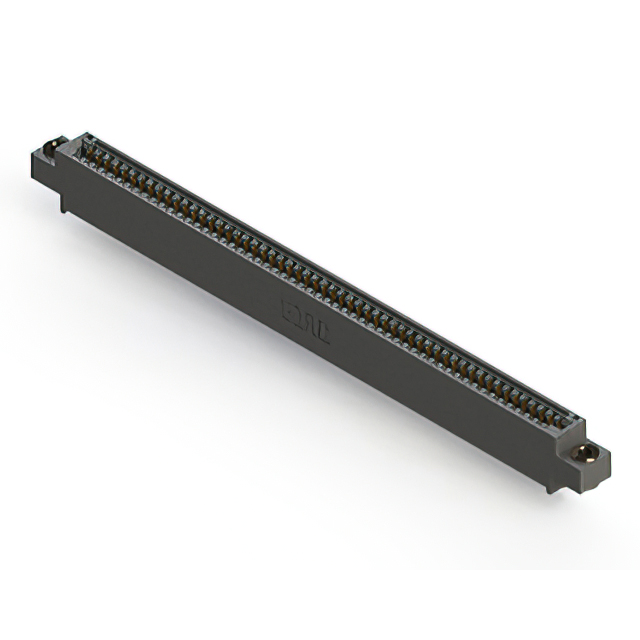

CONN EDGE SINGLE FML 55POS 0.100
| Part | Material - Insulation | Termination Rows | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Type | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Termination | Gender | Color | Read Out | Contact Finish | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.156 " | 3.96 mm | 55 | Wire Wrap | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.128 " | 3.25 mm | 55 | Wire Wrap | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.128 " | 3.25 mm | 55 | Wire Wrap | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.128 " | 3.25 mm | 55 | Solder | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.128 " | 3.25 mm | 55 | Solder | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | Side Mount Opening Unthreaded |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 55 | Solder | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.116 " | 2.95 mm | 55 | Solder | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | Floating Bobbin Top Mount Opening |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.116 " | 2.95 mm | 55 | Solder | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | Floating Bobbin Top Mount Opening |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.156 " | 3.96 mm | 55 | Solder | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 55 | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Cantilever | Non Specified - Single Edge | 0.116 " | 2.95 mm | 55 | Solder | Female | Black | Single | Gold | Copper Alloy | Through Hole | 125 °C | -40 C | Floating Bobbin Top Mount Opening |
