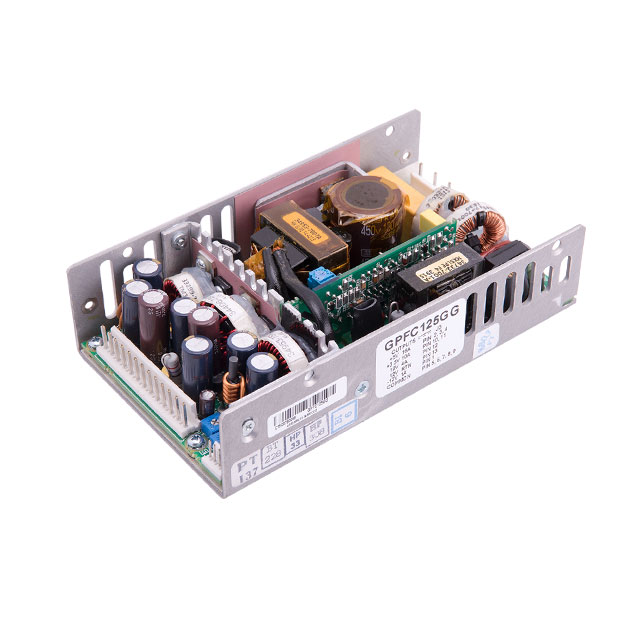

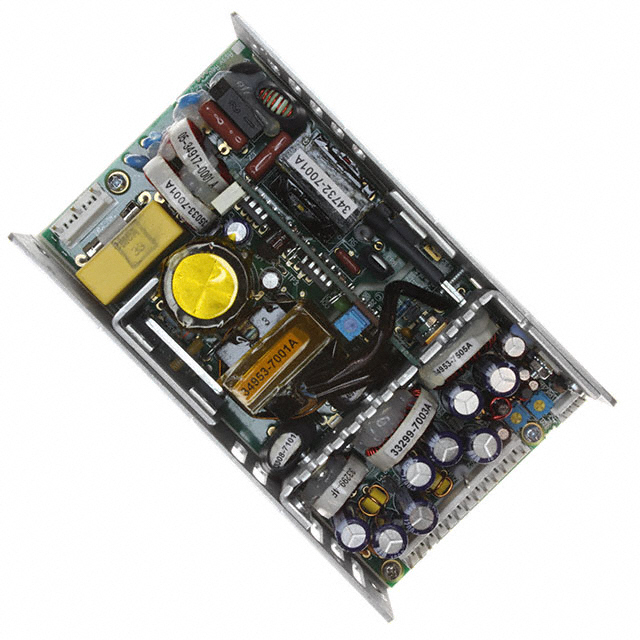

GPFC125 Series

Catalog

AC/DC CNVRTR 3.3V 5V +/-12V 125W

Part	Operating Temperature [Max]	Current - Output 1	Applications	Number of Outputs	Current - Output 4	Mounting Type	Voltage - Output 4	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Current - Output 2	Features	Voltage - Output 3	Power (Watts)	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 3	Voltage - Output 2	Approval Agency	Efficiency	Type
SL POWER / Advanced Energy GPFC125HG	50 °C	9 A	ITE (Commercial)	4	300 mA	Chassis Mount	-12 V	88.9 mm	152.4 mm	3.5 "	1.5 in	6 "	38.1 mm	4 A	Adjustable Output PFC Remote Sense Universal Input	12 V	125 W	3.3 V	264 VAC	90 VAC	2.5 A	5 V	CE	72 %	Open Frame

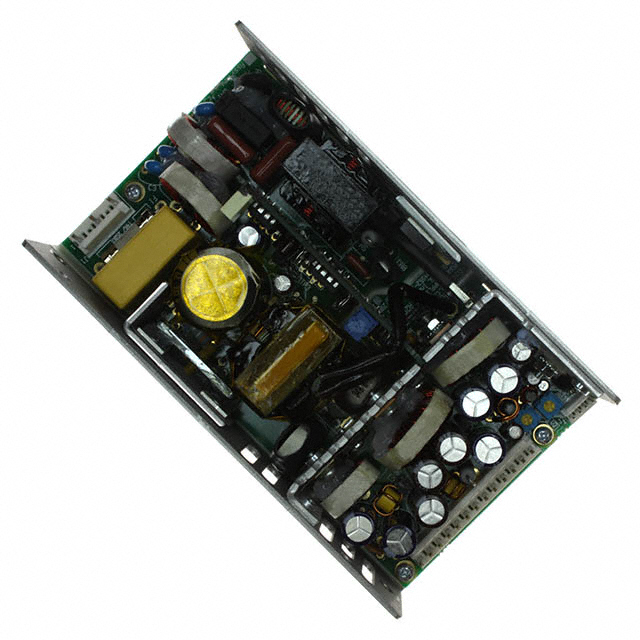

SL POWER / Advanced Energy GPFC125DG	50 °C	9 A	ITE (Commercial)	4	300 mA	Chassis Mount	-12 V	88.9 mm	152.4 mm	3.5 "	1.5 in	6 "	38.1 mm	3 A	Adjustable Output PFC Remote Sense Universal Input	12 V	125 W	5 V	264 VAC	90 VAC	2.5 A	24 V	CE	72 %	Open Frame

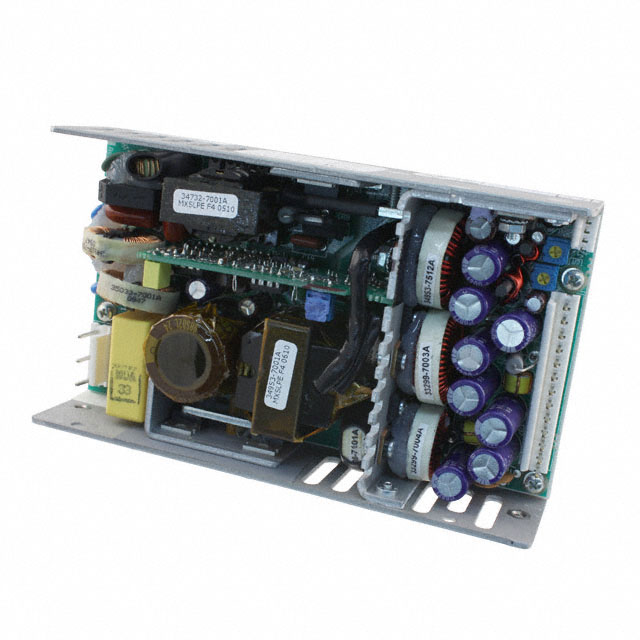

SL POWER / Advanced Energy GPFC125AG	50 °C	9 A	ITE (Commercial)	4	300 mA	Chassis Mount	-12 V	88.9 mm	152.4 mm	3.5 "	1.5 in	6 "	38.1 mm	4 A	Adjustable Output PFC Remote Sense Universal Input	12 V	125 W	5 V	264 VAC	90 VAC	2.5 A	12 V	CE	72 %	Open Frame
SL POWER / Advanced Energy GPFC125FG	50 °C	9 A	ITE (Commercial)	4	300 mA	Chassis Mount	-5 V	88.9 mm	152.4 mm	3.5 "	1.5 in	6 "	38.1 mm	3.5 A	Adjustable Output PFC Remote Sense Universal Input	15 V	125 W	5 V	264 VAC	90 VAC	2.5 A	15 V	CE	72 %	Open Frame
