INA233 Series

36V, 16-bit, ultra-precise i2c & pmbus output current/voltage/power/energy monitor w/alert

Catalog

36V, 16-bit, ultra-precise i2c & pmbus output current/voltage/power/energy monitor w/alert

Part	Package / Case	Package / Case [x]	Package / Case [x]	Sensing Method	Supplier Device Package	Current - Output	Function	Operating Temperature [Min]	Operating Temperature [Max]	Accuracy	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Type	Utilized IC / Part	Supplied Contents	Embedded
Texas Instruments INA233AIDGST	10-MSOP 10-TFSOP	3 mm	0.118 in	High/Low-Side	10-VSSOP	10 mA	Current Monitor	-40 °C	125 °C	0.1 %	0 V	36 V	Surface Mount

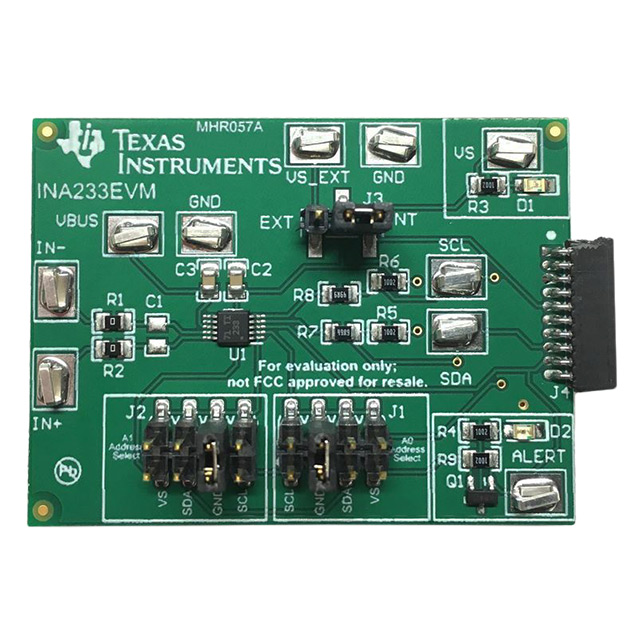

Texas Instruments INA233EVM							Current Power Voltage Monitor							Power Management	INA233	Board(s) Cable(s)

Catalog

36V, 16-bit, ultra-precise i2c & pmbus output current/voltage/power/energy monitor w/alert

Key Features

• Senses Bus Voltages From 0V to 36VHigh-Side or Low-Side SensingReports Current, Voltage, and PowerIntegrated Power Accumulator for Energy and Average Power MonitoringHigh Accuracy:0.1% Gain Error (Max)10µV Offset (Max)Configurable Averaging OptionsIndependent Alert Limits for Current, Bus Voltage, and Power1.8V Compliant I2C, SMBus, PMBus Interface16 Programmable AddressesOperates From a 2.7V to 5.5V Power Supply10-Pin, DGS (VSSOP) PackageSenses Bus Voltages From 0V to 36VHigh-Side or Low-Side SensingReports Current, Voltage, and PowerIntegrated Power Accumulator for Energy and Average Power MonitoringHigh Accuracy:0.1% Gain Error (Max)10µV Offset (Max)Configurable Averaging OptionsIndependent Alert Limits for Current, Bus Voltage, and Power1.8V Compliant I2C, SMBus, PMBus Interface16 Programmable AddressesOperates From a 2.7V to 5.5V Power Supply10-Pin, DGS (VSSOP) Package

Description

The INA233 device is a current, voltage, and power monitor with an I2C-, SMBus-, and PMBus-compatible interface that is compliant with digital bus voltages from 1.8V to 5.0V. The device monitors and reports values for current, voltage, and power. The integrated power accumulator can be used for energy or average power calculations. Programmable calibration value, conversion times, and averaging when combined with an internal multiplier enable direct readouts of current in amperes and power in watts. The INA233 senses current on common-mode bus voltages that can vary from 0V to 36V, independent of the supply voltage. The device operates from a single 2.7V to 5.5V supply, drawing a typical supply current of 310µA in normal operation. The device can be placed in a low-power standby mode where the typical operating current is only 2µA. The device is specified over the operating temperature range between –40°C and +125°C and features up to 16 programmable addresses. The INA233 device is a current, voltage, and power monitor with an I2C-, SMBus-, and PMBus-compatible interface that is compliant with digital bus voltages from 1.8V to 5.0V. The device monitors and reports values for current, voltage, and power. The integrated power accumulator can be used for energy or average power calculations. Programmable calibration value, conversion times, and averaging when combined with an internal multiplier enable direct readouts of current in amperes and power in watts. The INA233 senses current on common-mode bus voltages that can vary from 0V to 36V, independent of the supply voltage. The device operates from a single 2.7V to 5.5V supply, drawing a typical supply current of 310µA in normal operation. The device can be placed in a low-power standby mode where the typical operating current is only 2µA. The device is specified over the operating temperature range between –40°C and +125°C and features up to 16 programmable addresses.
