sm Series

Catalog

MICROSWITCH SNAP ACTION; 1A/125VAC; 1A/30VDC; SPDT; ON-(ON); SM

Part	Pretravel	Pretravel	Actuator Type	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Operating Position	Operating Position	Voltage Rating - AC	Operating Force	Differential Travel	Differential Travel	Current Rating (Amps)	Voltage Rating - DC	Circuit	Termination Style	Release Force	Operating Position [custom]	Operating Position [custom]
Honeywell Sensing and Productivity Solutions 311SM68-T	2.16 mm	0.085 in	Lever Roller	10000000 Cycles	0.018 "	0.45 mm	Chassis Mount	-55 C	125 °C	On-Mom	0.56 in	14.2 mm	125 V	40 gf	0.5 mm	0.02 in	1 A	30 V	SPDT	Solder Turret

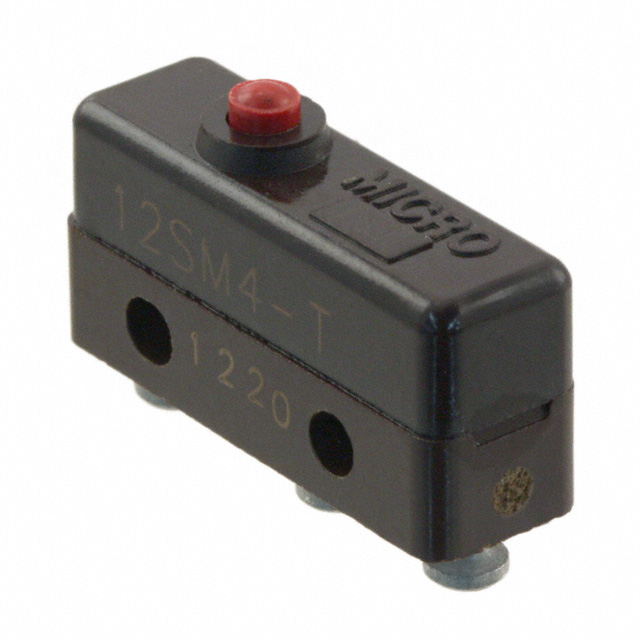

Honeywell Sensing and Productivity Solutions 12SM4-T	0.5 mm	0.02 in	Round (Pin Plunger)	1000000 Cycles	0.003 "	0.076 mm	Chassis Mount	-55 C	125 °C	On-Mom	0.33 in	8.4 mm	125 V	141 gf	0.1 mm	0.004 in	1 A	30 V	SPDT	Solder Turret	28 gf

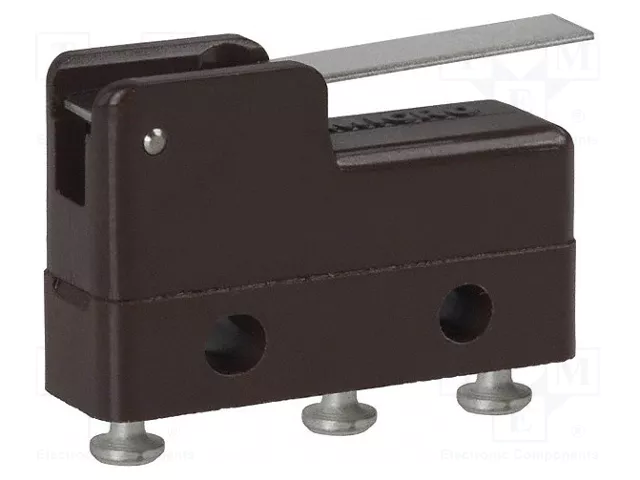

Honeywell Sensing and Productivity Solutions 311SM1-T	2.16 mm	0.085 in	Lever Straight	10000000 Cycles	0.02 "	0.5 mm	Chassis Mount	-55 C	125 °C	On-Mom			250 V	40 gf	0.5 mm	0.02 in	5 A	30 V	SPDT	Solder Turret		8.6 mm	0.34 in
