EN3P4M Series

Catalog

CONN RCPT MALE 4POS GOLD CRIMP

Part	Ingress Protection	Connector Type	Fastening Type	Primary Material	Current Rating (Amps)	Orientation	Number of Positions	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Material Flammability Rating	Contact Material	Termination	Voltage Rating	Applications	Color	Mounting Feature	Insert Material	Mounting Type
Switchcraft Inc. EN3P4MCKX	IP66/IP68	Male Pins Receptacle	Bayonet Lock	Plastic	7.5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Crimp	250 VAC	General Purpose Instrumentation Marine Medical	Black	Bulkhead - Front Side Nut	Elastomer

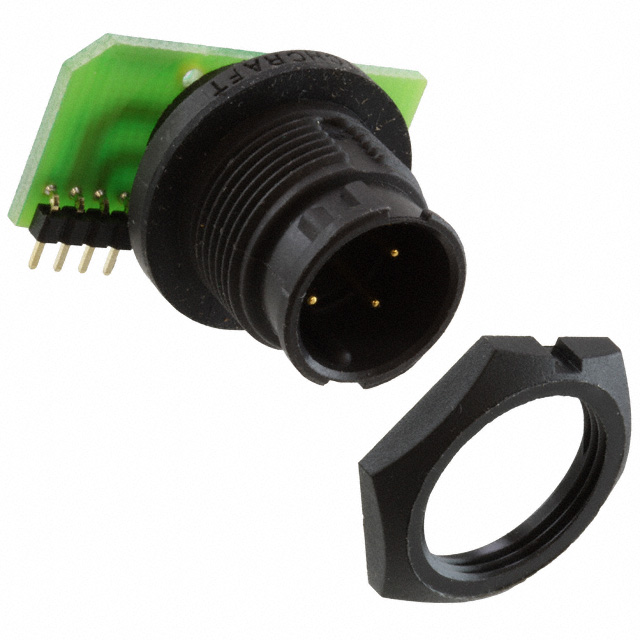

Switchcraft Inc. EN3P4MRAPCBW	IP66/IP68	Male Pins Receptacle	Bayonet Lock	Plastic	5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Circuit Board Solder	250 VAC	General Purpose Instrumentation Marine Medical	Black	Bulkhead - Front Side Nut	Elastomer	Panel Mount Right Angle Through Hole
Switchcraft Inc. EN3P4MKX	IP66/IP68	Male Pins Receptacle	Bayonet Lock	Plastic	7.5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy		250 VAC	General Purpose Instrumentation Marine Medical	Black	Bulkhead - Front Side Nut	Elastomer

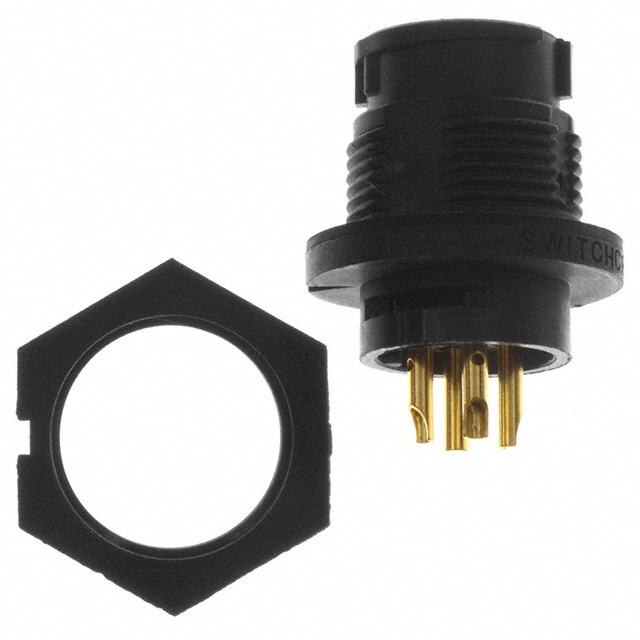

Switchcraft Inc. EN3P4MX	IP66/IP68	Male Pins Receptacle	Bayonet Lock	Plastic	7.5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy		250 VAC	General Purpose Instrumentation Marine Medical	Black	Bulkhead - Front Side Nut	Elastomer
Switchcraft Inc. EN3P4MRAPCX	IP66/IP68	Male Pins Receptacle	Bayonet Lock	Plastic	5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Solder	250 VAC	General Purpose Instrumentation Marine Medical	Black	Bulkhead - Front Side Nut	Elastomer	Panel Mount Right Angle Through Hole

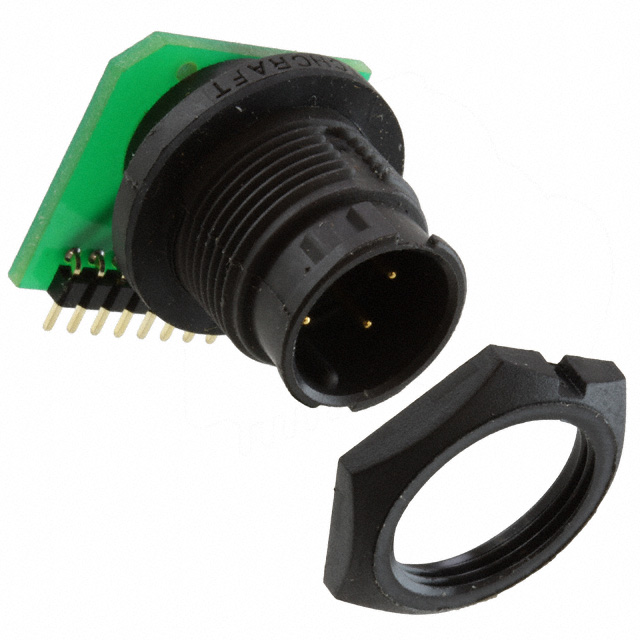

Switchcraft Inc. EN3P4MRAPCBN	IP66/IP68	Male Pins Receptacle	Bayonet Lock	Plastic	5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Circuit Board Solder	250 VAC	General Purpose Instrumentation Marine Medical	Black	Bulkhead - Front Side Nut	Elastomer	Panel Mount Right Angle Through Hole
