225389 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

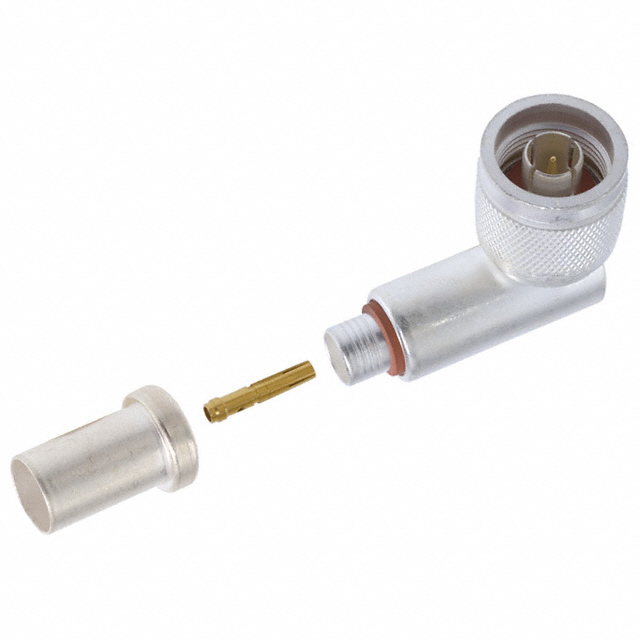

SERIES N RT ANG PLUG W/PROOF
| Part | Mating Cycles | Shield Termination | Connector Type | Number of Ports | Center Contact Plating | Housing Color | Contact Termination | Voltage Rating | Cable Group | Impedance | Includes | Mounting Type | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Ingress Protection | Body Material | Frequency - Max [Max] | Body Finish | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | |||||||||||||||||||||
 TE Connectivity Aerospace, Defense and Marine | 500 | Crimp | Male Pin Plug | 1 | Gold | Silver | Crimp | 1000 VDC | RG-213 | 50 Ohms | 1 Connector 1 Contact 1 Ferrule | Free Hanging (In-Line) Right Angle | Beryllium Copper | -65 ░C | 165 °C | N Type | Weatherproof | Brass | 11 GHz | Silver | Polytetrafluoroethylene (PTFE) |
TE Connectivity Aerospace, Defense and Marine | Crimp | Male Pin Plug | 1 | Gold | Silver | Crimp | RG-393 | 50 Ohms | Free Hanging (In-Line) Right Angle | N Type | Weatherproof | Fluoropolymer (FP) | |||||||||
TE Connectivity Aerospace, Defense and Marine |
