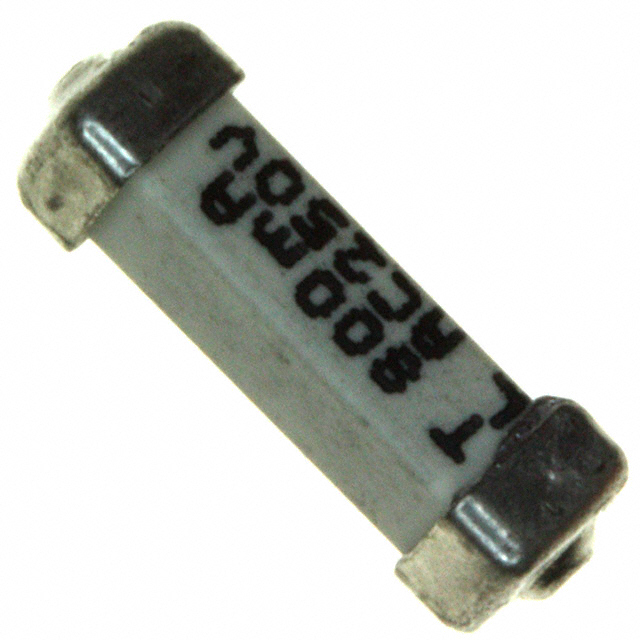

3403.0165 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FUSE BRD MNT 800MA 250VAC 125VDC
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - AC | Voltage Rating - DC | Melting I²t | Breaking Capacity @ Rated Voltage | Fuse Type | Current Rating (Amps) | Response Time | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 2-SMD Square End Block | -55 C | 125 °C | 0.118 in | 0.118 in | 0.398 in | 3 mm | 10.1 mm | 3 mm | 250 V | 125 VDC | 1.4 I²t | 35 A 200 A | Board Mount (Cartridge Style Excluded) | 800 mA | Slow Blow | CQC cURus KC UL VDE | Surface Mount |
