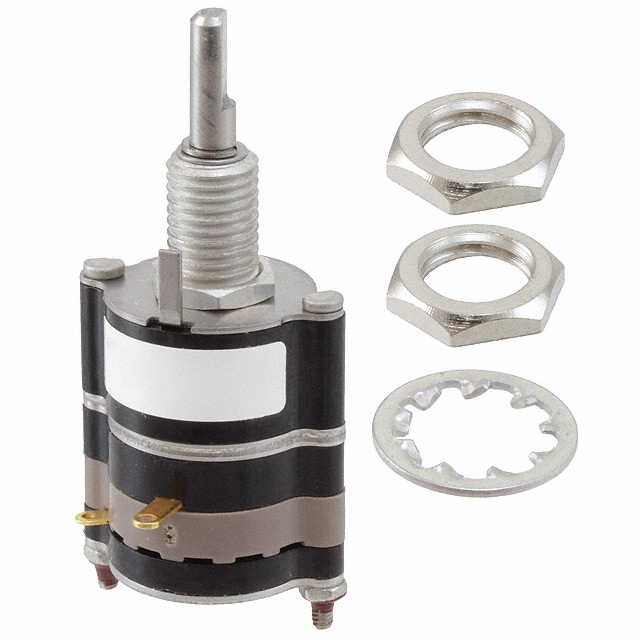

093101 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 2POS 250MA 115V
| Part | Number of Poles per Deck | Depth Behind Panel [z] | Circuit per Deck | Current Rating (Amps) | Number of Decks [custom] | Contact Timing | Actuator Type | Mounting Type | Voltage Rating - AC | Angle of Throw | Number of Positions | Contact Material | Contact Finish | Index Stops | Actuator Length [x] | Voltage Rating - DC | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 2 | 24.38 mm | DPDT | 250 mA | 1 | Non-Shorting (BBM) | Flatted (3.17mm Dia) | Panel Mount | 115 V | 30 ° | 2 | Silver Alloy | Gold | Fixed | 9.53 mm | 28 V | Solder Lug |
Grayhill Inc. | 24.38 mm | 4PDT | 250 mA | 1 | Non-Shorting (BBM) | Flatted (3.17mm Dia) | Panel Mount | 115 V | 30 ° | 2 | Silver Alloy | Gold | Fixed | 9.53 mm | 28 V | Solder Lug | |
 Grayhill Inc. | 1 | 24.38 mm | SP4T | 250 mA | 1 | Non-Shorting (BBM) | Flatted (3.17mm Dia) | Panel Mount | 115 V | 30 ° | 4 | Silver Alloy | Gold | Fixed | 9.53 mm | 28 V | Solder Lug |
Grayhill Inc. | 5 | 24.38 mm | 5PDT | 250 mA | 1 | Non-Shorting (BBM) | Flatted (3.17mm Dia) | Panel Mount | 115 V | 30 ° | 2 | Silver Alloy | Gold | Fixed | 9.53 mm | 28 V | Solder Lug |
Grayhill Inc. | 1 | 24.38 mm | SP3T | 250 mA | 1 | Non-Shorting (BBM) | Flatted (3.17mm Dia) | Panel Mount | 115 V | 30 ° | Silver Alloy | Gold | Fixed | 9.53 mm | 28 V | Solder Lug | |
Grayhill Inc. | 6 | 24.38 mm | 6PDT | 250 mA | 1 | Shorting (MBB) | Flatted (3.17mm Dia) | Panel Mount | 115 V | 30 ° | 2 | Silver Alloy | Gold | Fixed | 9.53 mm | 28 V | Solder Lug |
Grayhill Inc. | 1 | 24.38 mm | SP5T | 250 mA | 1 | Non-Shorting (BBM) | Flatted (3.17mm Dia) | Panel Mount | 115 V | 30 ° | 5 | Silver Alloy | Gold | Fixed | 9.53 mm | 28 V | Solder Lug |
