19407030 Series
Manufacturer: HARTING
Beta
⌘K
3A HPR HOOD TOP ENTRY, TOGGLE LOCKING, EPOXY, M25
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Housing Color | Size | Ingress Protection | Ingress Protection | Ingress Protection | Housing Material | Lock Location | Thread Size | Style | Connector Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 125 °C | -40 C | Powder Coated | Black | 3 A | Dust Tight Water Resistant Waterproof | IP68 | IP65 | Zinc Die Cast | Screw Locks on Hood | M25 | Top Entry | Hood | ||||||

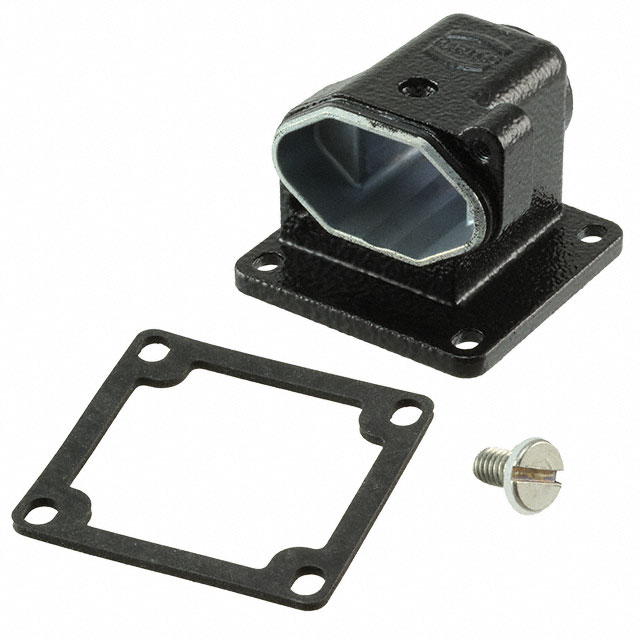

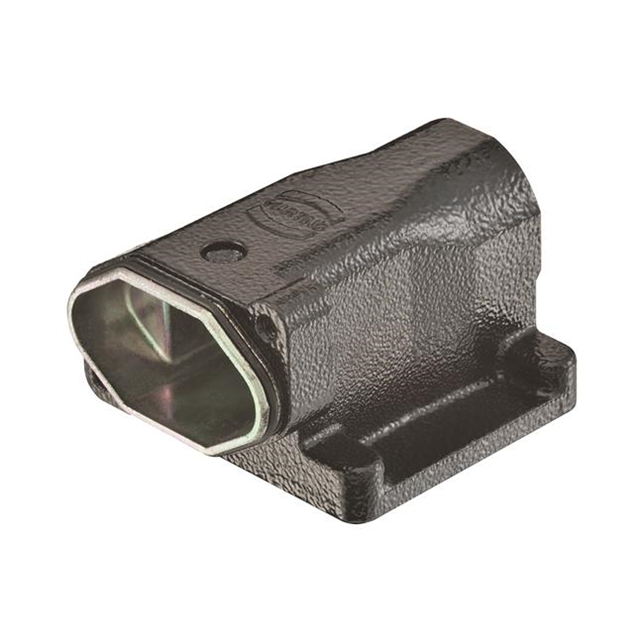

 HARTING | 125 °C | -40 C | Powder Coated | Black | 3 A | Zinc Die Cast | Screw Locks on Hood | M20 | Side Entry | Base - Panel Mount 90° | |||||||||
 HARTING | 125 °C | -40 C | Powder Coated | Black | 3 A | Zinc Die Cast | Screw Locks on Hood | M25 | Side Entry | Base - Panel Mount 90° | |||||||||
 HARTING | 125 °C | -40 C | Epoxy Powder Paint | Black | 3 A | Zinc Die Cast | Screw Locks on Hood | M25 | Top Entry | Hood | 60 mm | 45.5 mm | 32.4 mm | 1.791 " | 2.362 in | 1.276 " |
