1334A Series
Manufacturer: Belden Inc.
Beta
⌘K

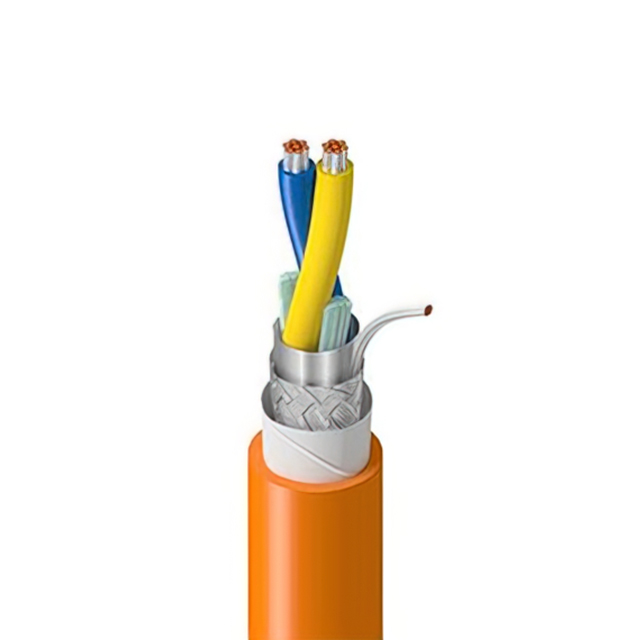

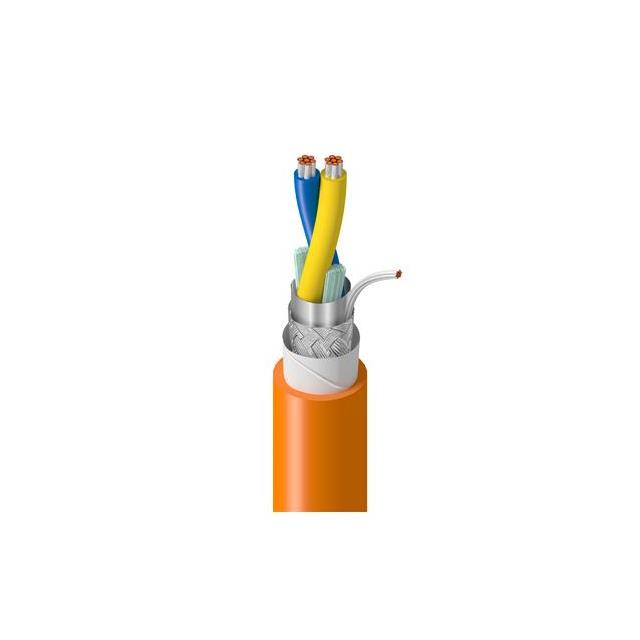

CABLE 2CON 18AWG BLUE SHLD
| Part | Shield Coverage | Shield Material | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket Color | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Insulation | Conductor Insulation | Length | Length | Wire Gauge | Features | Conductor Material | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | -30 ░C | 90 °C | 0.287 in | 7.29 mm | 300 VDC | Blue | 2 | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | 304.8 m | 1000 ft | 18 AWG | Drain Wire Rip Cord | Copper Tinned | Multi-Conductor |
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | -30 ░C | 90 °C | 0.287 in | 7.29 mm | 300 VDC | Orange | 2 | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | 304.8 m | 1000 ft | 18 AWG | Drain Wire Rip Cord | Copper Tinned | Multi-Conductor |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | -30 ░C | 90 °C | 0.287 in | 7.29 mm | 300 VDC | Orange | 2 | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | 1000 m | 3281 ' | 18 AWG | Drain Wire Rip Cord | Copper Tinned | Multi-Conductor |
