PXPLCP12 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
SENSOR CONN, FEMALE, 8POS, M12, SMT ROHS COMPLIANT: YES
| Part | Orientation [x] | Mounting Type | Fastening Type | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Shielding | Current Rating (Amps) | Voltage Rating | Applications | Termination | Shell Size - Insert | Number of Positions | Primary Material | Connector Type | Contact Finish - Mating | Contact Material | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

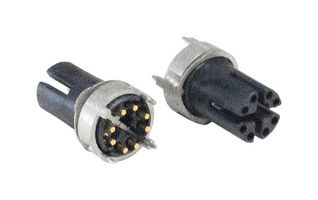

 BULGIN LIMITED | X | Right Angle Surface Mount | Threaded | Liquid Crystal Polymer (LCP) | -25 °C | 80 °C | IP67 - Dust Tight Waterproof | Unshielded | 2 A | 30 VDC | Industrial Instrumentation Medical | Solder | M12-8 | 8 | Plastic | Plug Female Sockets | Gold | Phosphor Bronze | |
 BULGIN LIMITED | Right Angle Surface Mount | Threaded | Liquid Crystal Polymer (LCP) | -25 °C | 80 °C | IP67 - Dust Tight Waterproof | Unshielded | 4 A | 250 V | Industrial Instrumentation Medical | Solder | M12-4 | 4 | Plastic | Receptacle Male Pins | Gold | Brass | A | |
 BULGIN LIMITED | Right Angle Surface Mount | Threaded | Liquid Crystal Polymer (LCP) | -25 °C | 80 °C | IP67 - Dust Tight Waterproof | Unshielded | 4 A | 60 VDC | Industrial Instrumentation Medical | Solder | M12-5 | 5 | Plastic | Receptacle Male Pins | Gold | Brass | A | |

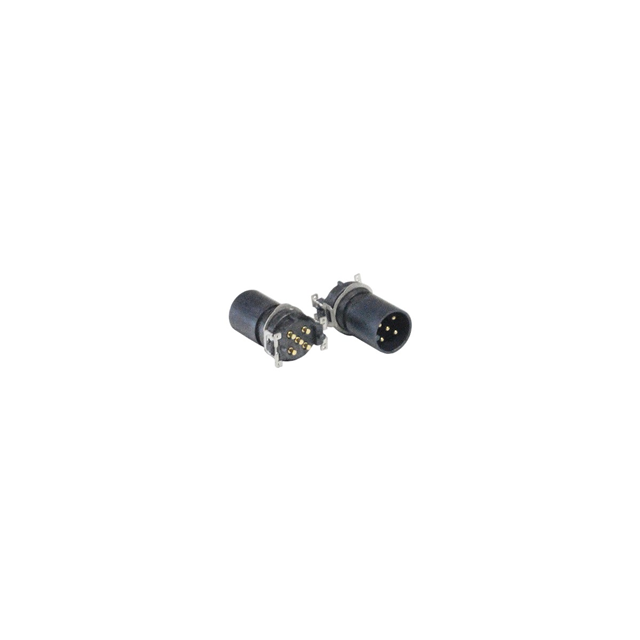

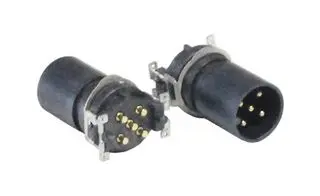

 BULGIN LIMITED | Right Angle Surface Mount | Threaded | Liquid Crystal Polymer (LCP) | -25 °C | 80 °C | IP67 - Dust Tight Waterproof | Unshielded | 2 A | 30 VDC | Industrial Instrumentation Medical | Solder | M12-8 | 8 | Plastic | Receptacle Male Pins | Gold | Brass | A | |

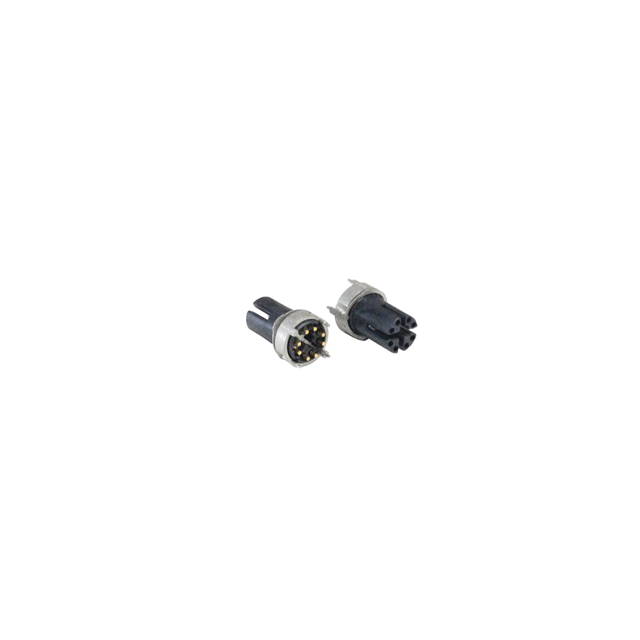

 BULGIN LIMITED | Right Angle Surface Mount | Threaded | Liquid Crystal Polymer (LCP) | -25 °C | 80 °C | IP67 - Dust Tight Waterproof | Unshielded | 2 A | 30 VDC | Industrial Instrumentation Medical | Solder | M12-8 | 8 | Plastic | Plug Female Sockets | Gold | Phosphor Bronze | A | |

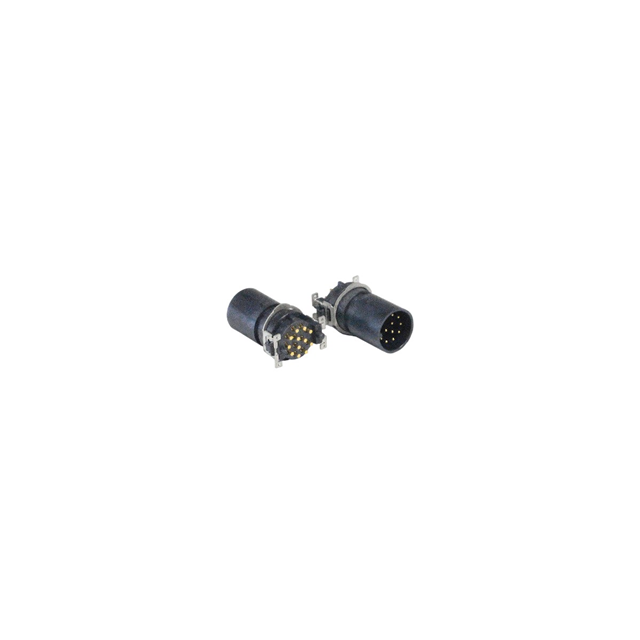

 BULGIN LIMITED | Right Angle Surface Mount | Threaded | Liquid Crystal Polymer (LCP) | -25 °C | 80 °C | IP67 - Dust Tight Waterproof | Unshielded | 1.5 A | 60 VDC | Industrial Instrumentation Medical | Solder | M12-12 | 12 | Plastic | Receptacle Male Pins | Gold | Brass | A |
