396-064 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 64POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Contact Material | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Mounting Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Number of Positions | Gender | Contact Type | Pitch | Pitch | Color | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

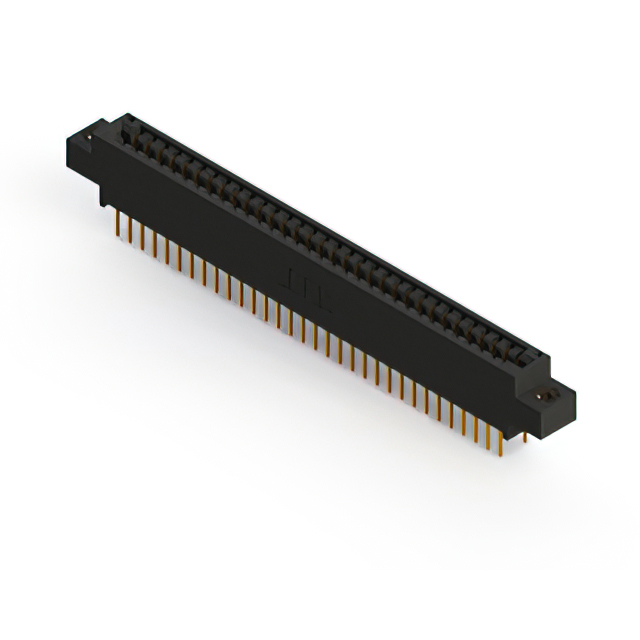

 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Solder | |

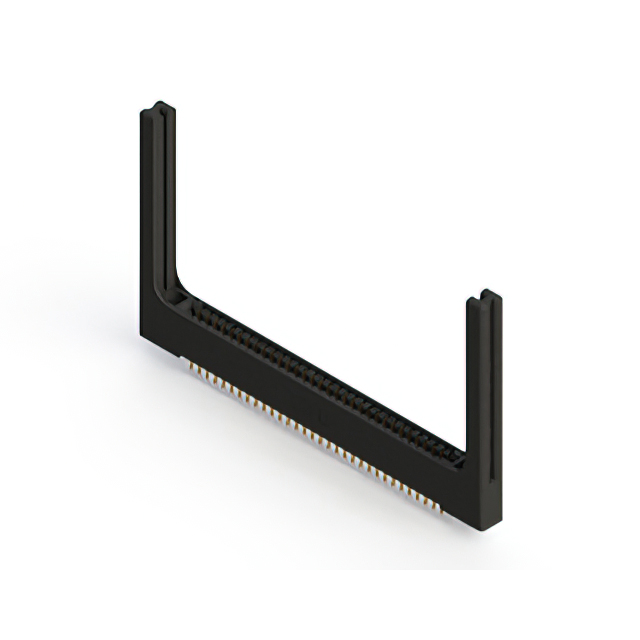

 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Solder | Card Guides | ||

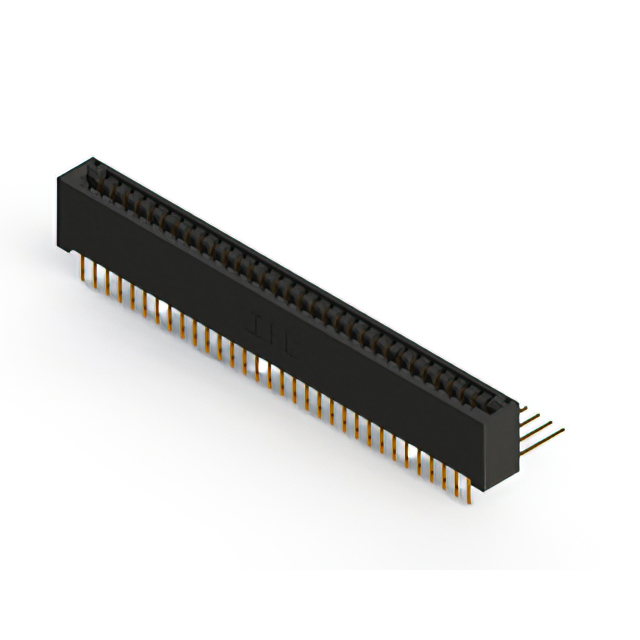

 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | -40 C | 105 ░C | Non Specified - Dual Edge | Right Angle Through Hole | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Solder Wire Wrap | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Flush Mount M3 Threaded Insert Top Opening | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Wire Wrap | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Wire Wrap | |||

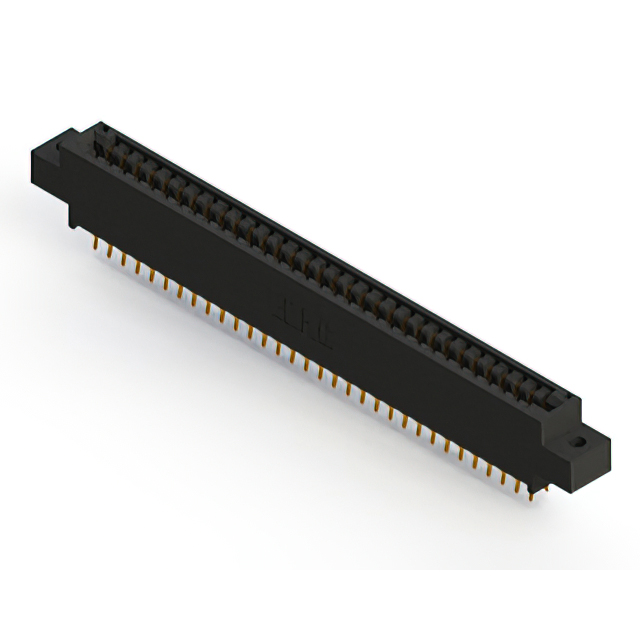

 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Board Edge Straddle Mount | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Solder | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.128 " | 3.25 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Board Edge Straddle Mount | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Solder | Card Extender | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Wire Wrap | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Solder | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.156 " | 3.96 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Through Hole | Dual | 0.25 Ám | 10 Áin | 32 | 64 | Female | Cantilever | 3.18 mm | 0.125 in | Black | Solder |
