M2112TC Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Illumination Type, Color	Features	Termination Style	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Bushing Thread	Circuit	Illumination	Actuator Type	Actuator Length [x]	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - AC

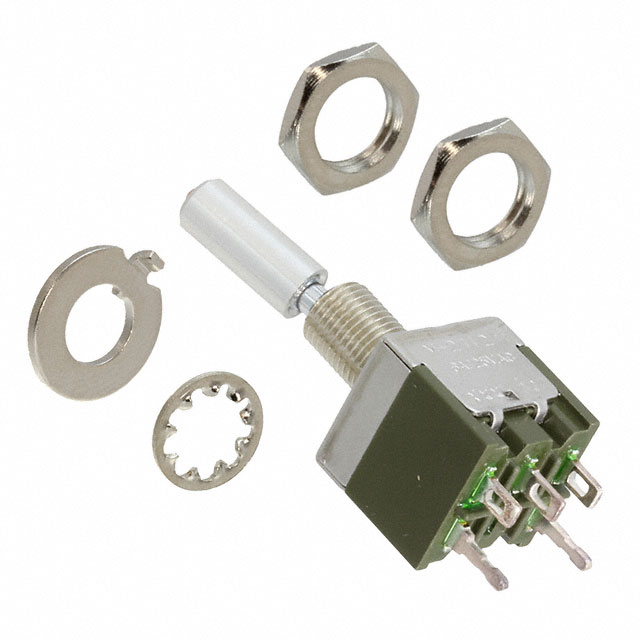

NKK Switches M2112TCW01/U	25000 Steps	LED Red	Epoxy Sealed Terminals	Solder Lug	2.2 VDC	55 °C	-10 °C	30 V	On-On	1/4-40	SPDT	Illuminated	Standard Round	14.7 mm	Panel Mount	6.5 mm	3 A 6 A	125 V
NKK Switches M2112TCW03	25000 Steps	LED Red	Epoxy Sealed Terminals	PC Pin	2.2 VDC	55 °C	-10 °C	30 V	On-On	1/4-40	SPDT	Illuminated	Standard Round	14.7 mm	Panel Mount	6.5 mm	3 A 6 A	125 V

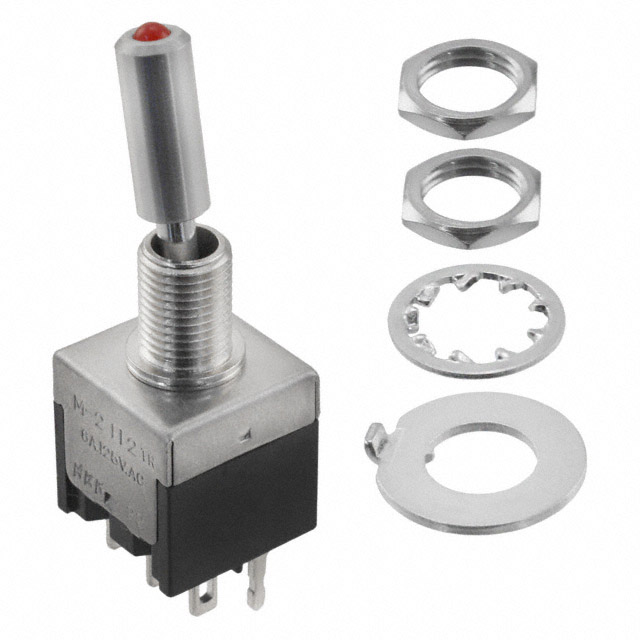

NKK Switches M2112TCW01	25000 Steps	LED Red	Epoxy Sealed Terminals	Solder Lug	2.2 VDC	55 °C	-10 °C	30 V	On-On	1/4-40	SPDT	Illuminated	Standard Round	14.7 mm	Panel Mount	6.5 mm	3 A 6 A	125 V
NKK Switches M2112TCFG01	25000 Steps	Green/Red LED	Epoxy Sealed Terminals	Solder Lug	1.7 VDC 2 VDC	55 °C	-10 °C	28 V	On-On	Unthreaded	SPDT	Illuminated	Standard Round	14.7 mm	Panel Mount	6.5 mm	0.4 VA	28 V
NKK Switches M2112TCFW03	25000 Steps	Green/Red LED	Epoxy Sealed Terminals	PC Pin	1.7 VDC 2 VDC	55 °C	-10 °C	30 V	On-On	1/4-40	SPDT	Illuminated	Standard Round	14.7 mm	Panel Mount	6.5 mm	3 A 6 A	125 V

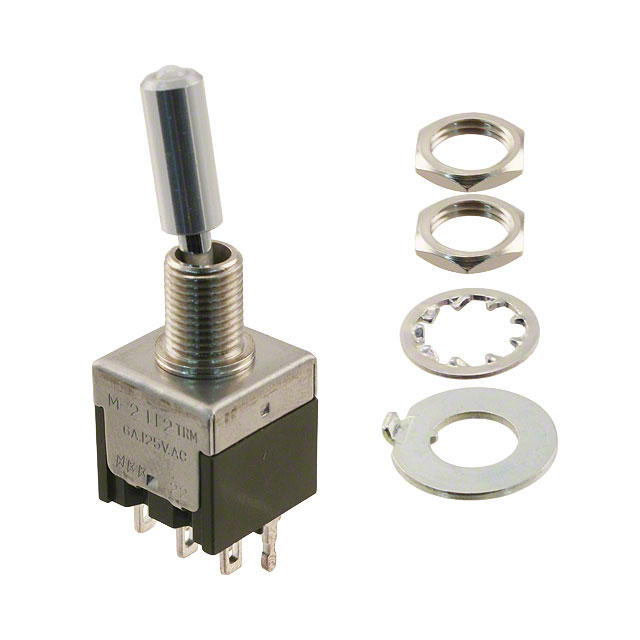

NKK Switches M2112TCFW01	25000 Steps	Green/Red LED	Epoxy Sealed Terminals	Solder Lug	1.7 VDC 2 VDC	55 °C	-10 °C	30 V	On-On	1/4-40	SPDT	Illuminated	Standard Round	14.7 mm	Panel Mount	6.5 mm	3 A 6 A	125 V
NKK Switches M2112TCFW13	25000 Steps	Green/Red LED	Epoxy Sealed Terminals	PC Pin	1.7 VDC 2 VDC	55 °C	-10 °C	30 V	On-On	Unthreaded	SPDT	Illuminated	Standard Round	14.7 mm	Through Hole		3 A 6 A	125 V
NKK Switches M2112TCW01/CUL	25000 Steps	LED Red	Epoxy Sealed Terminals	Solder Lug	2.2 VDC	55 °C	-10 °C	30 V	On-On	1/4-40	SPDT	Illuminated	Standard Round	14.7 mm	Panel Mount	6.5 mm	3 A 6 A	125 V

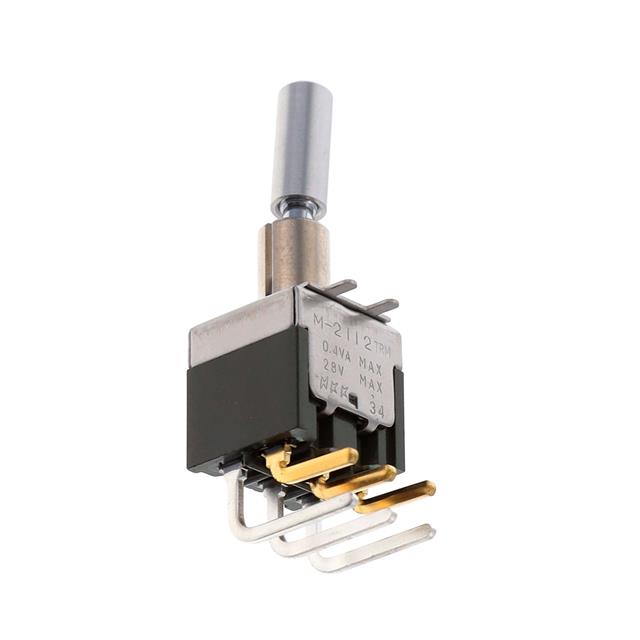

NKK Switches M2112TCFG30	25000 Steps	Green/Red LED	Epoxy Sealed Terminals	PC Pin	1.7 VDC 2 VDC	55 °C	-10 °C	28 V	On-On	Unthreaded	SPDT	Illuminated	Standard Round	14.7 mm	Right Angle Through Hole		0.4 VA	28 V

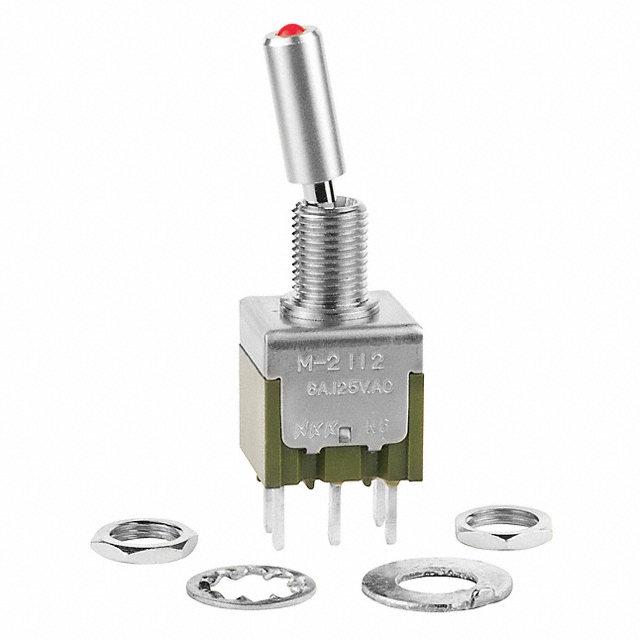

NKK Switches M2112TCW02	25000 Steps	LED Red	Epoxy Sealed Terminals	Quick Connect - 0.062" (1.5mm)	2.2 VDC	55 °C	-10 °C	30 V	On-On	1/4-40	SPDT	Illuminated	Standard Round	14.7 mm	Panel Mount	6.5 mm	3 A 6 A	125 V
