MAXM17905 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
4.5V TO 24V, 300MA HIMALAYA USLIC STEP-DOWN POWER MODULE
| Part | Package / Case | Current - Output (Max) [Max] | Supplier Device Package | Voltage - Input (Max) [Max] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Mounting Type | Voltage - Output 1 | Type | Applications | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Utilized IC / Part | Regulator Topology | Contents | Frequency - Switching | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

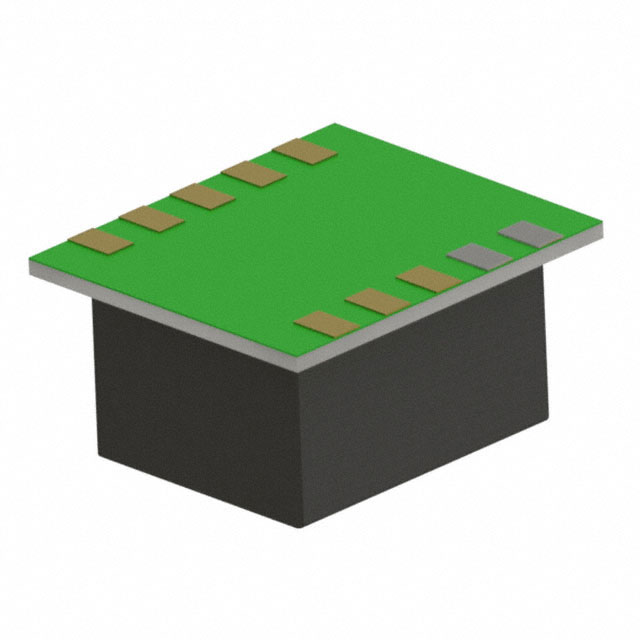

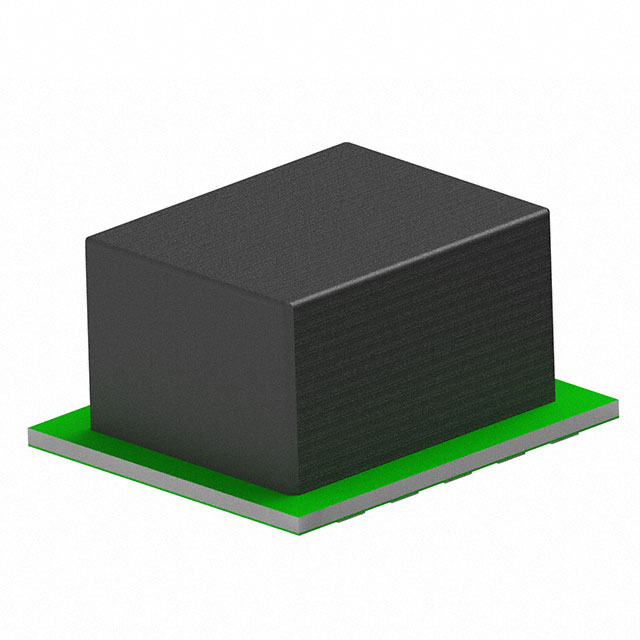

 Analog Devices Inc./Maxim Integrated | 10-SMD Module | 0.3 A | 10-eMGA (3x2.6) | 24 V | OCP OTP | 125 °C | -40 C | 1 | Surface Mount | 5 V | Non-Isolated PoL Module | ITE (Commercial) | 4.5 V | 0.12 inches | 2.6 mm | 0.06 " | 0.1 in | 1.5 mm | 3 mm | |||||||||||||
 Analog Devices Inc./Maxim Integrated | 10-SMD Module | 0.3 A | 10-eMGA (3x2.6) | 24 V | OCP OTP | 125 °C | -40 C | 1 | Surface Mount | 5 V | Non-Isolated PoL Module | ITE (Commercial) | 4.5 V | 0.12 inches | 2.6 mm | 0.06 " | 0.1 in | 1.5 mm | 3 mm | |||||||||||||

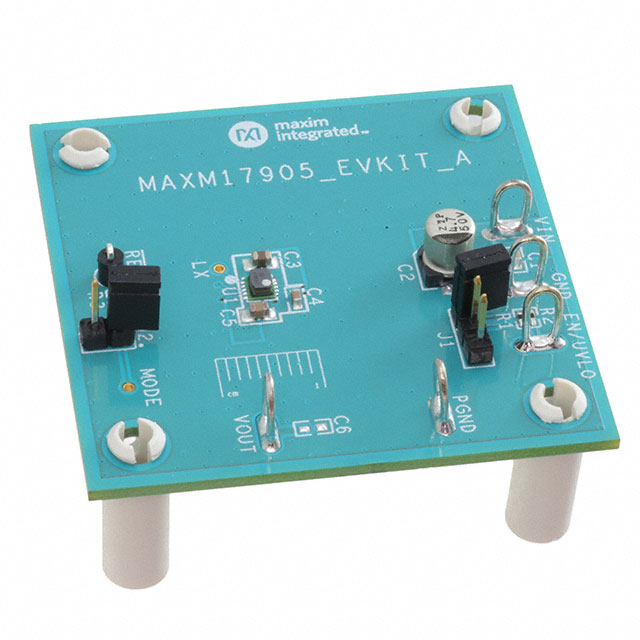

 Analog Devices Inc./Maxim Integrated | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | MAXM17905 | Buck | Board(s) | 550 kHz | 300 mA | 24 V | 8.5 V | DC/DC Step Down | 5 V |
