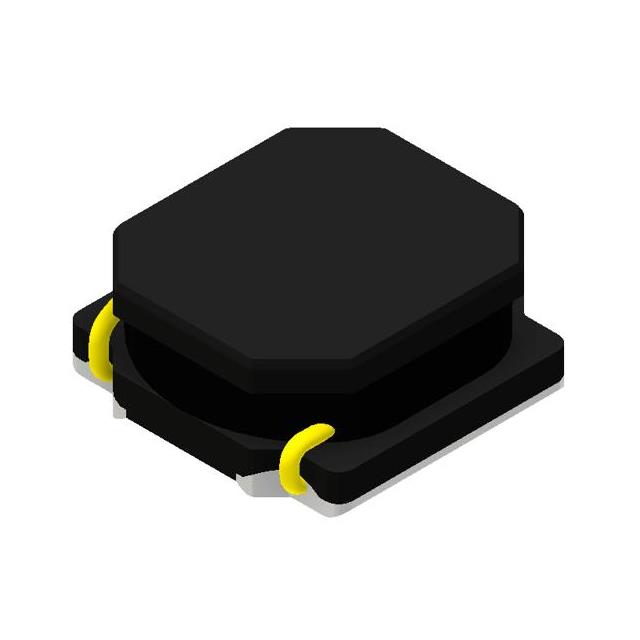

HPC 4018BMV Series
Manufacturer: TAI-TECH Advanced Electronics Co., Ltd.
Beta
⌘K
FIXED IND 3.3UH 2A 0.055OHM SMD
| Part | DC Resistance (DCR) | Current - Saturation (Isat) | Mounting Type | Package / Case | Tolerance | Type | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | Supplier Device Package | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Ratings | Current Rating (Amps) | Inductance | Shielding | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TAI-TECH Advanced Electronics Co., Ltd. | 55 mOhm | 2.3 A | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 2 A | 3.3 µH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 70 mOhm | 2 A | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 1.7 A | 4.7 ÁH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 98 mOhm | 1.6 A | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 1.45 A | 6.8 µH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 150 mOhm | 1.3 A | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 1.2 A | 10 µH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 1.45 Ohm | 420 mA | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 0.28 A | 100 µH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 650 mOhm | 0.6 A | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 0.44 A | 47 µH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 42 mOhms | 3 A | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 2.2 A | 2.2 µH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 460 mOhm | 700 mA | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 0.55 A | 33 µH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 290 mOhm | 900 mA | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 0.72 A | 22 µH | Shielded | 100 kHz |
TAI-TECH Advanced Electronics Co., Ltd. | 27 mOhm | 4 A | Surface Mount | 1616 (4040 Metric) | 20 % | Wirewound | -55 C | 125 °C | Ferrite | 4018 | 0.157 " | 4 mm | 0.157 in | 4 mm | 1.8 mm | 0.071 in | AEC-Q200 | 3.2 A | 1 µH | Shielded | 100 kHz |
