2823370 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

12P,2MM,SHRD HDR,DRVT,SMD,0.76AU

Part	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Number of Rows	Connector Type	Insulation Material	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Number of Positions Loaded	Contact Finish - Mating	Number of Positions	Termination	Mounting Type	Contact Type	Contact Shape	Contact Material	Voltage Rating	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Features	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions

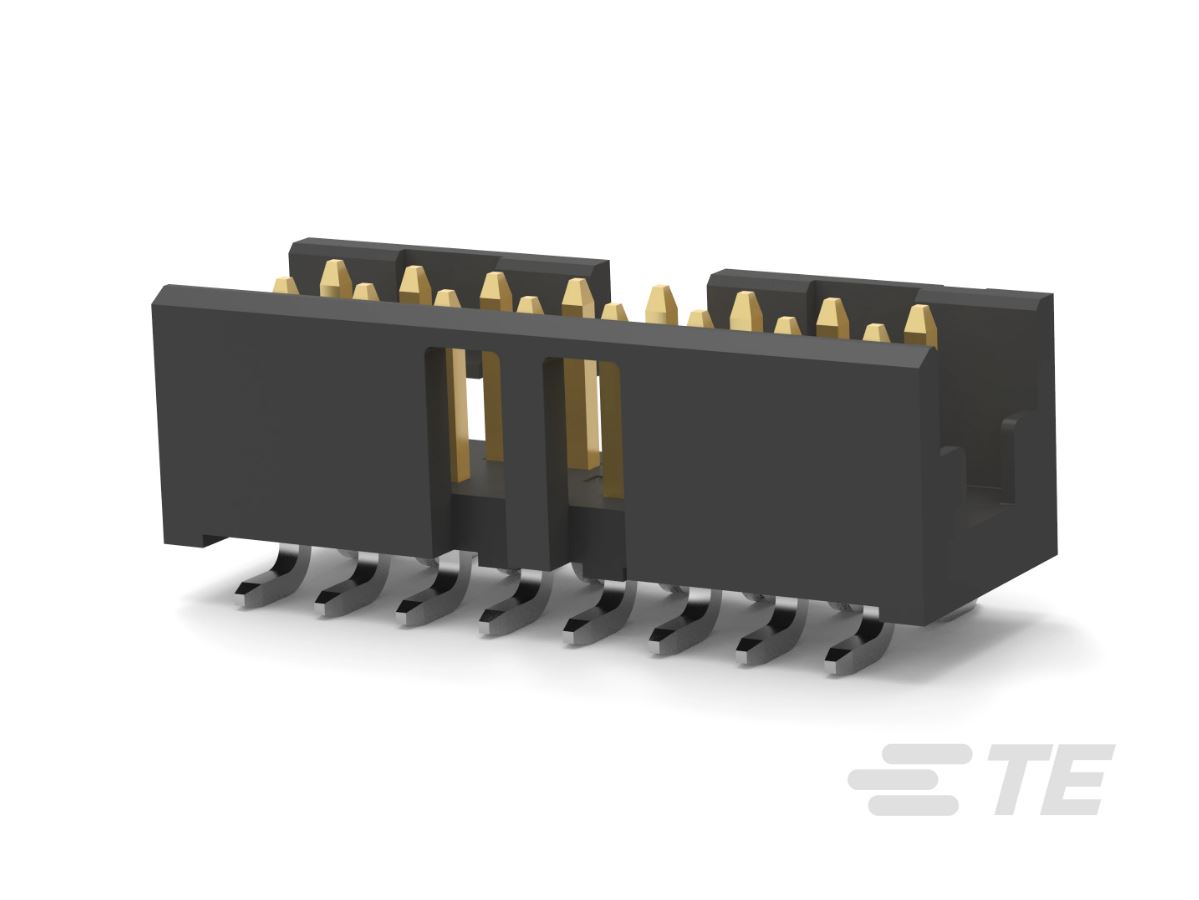

TE Connectivity Raychem Cable Protection 1-2823370-2	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	12	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black

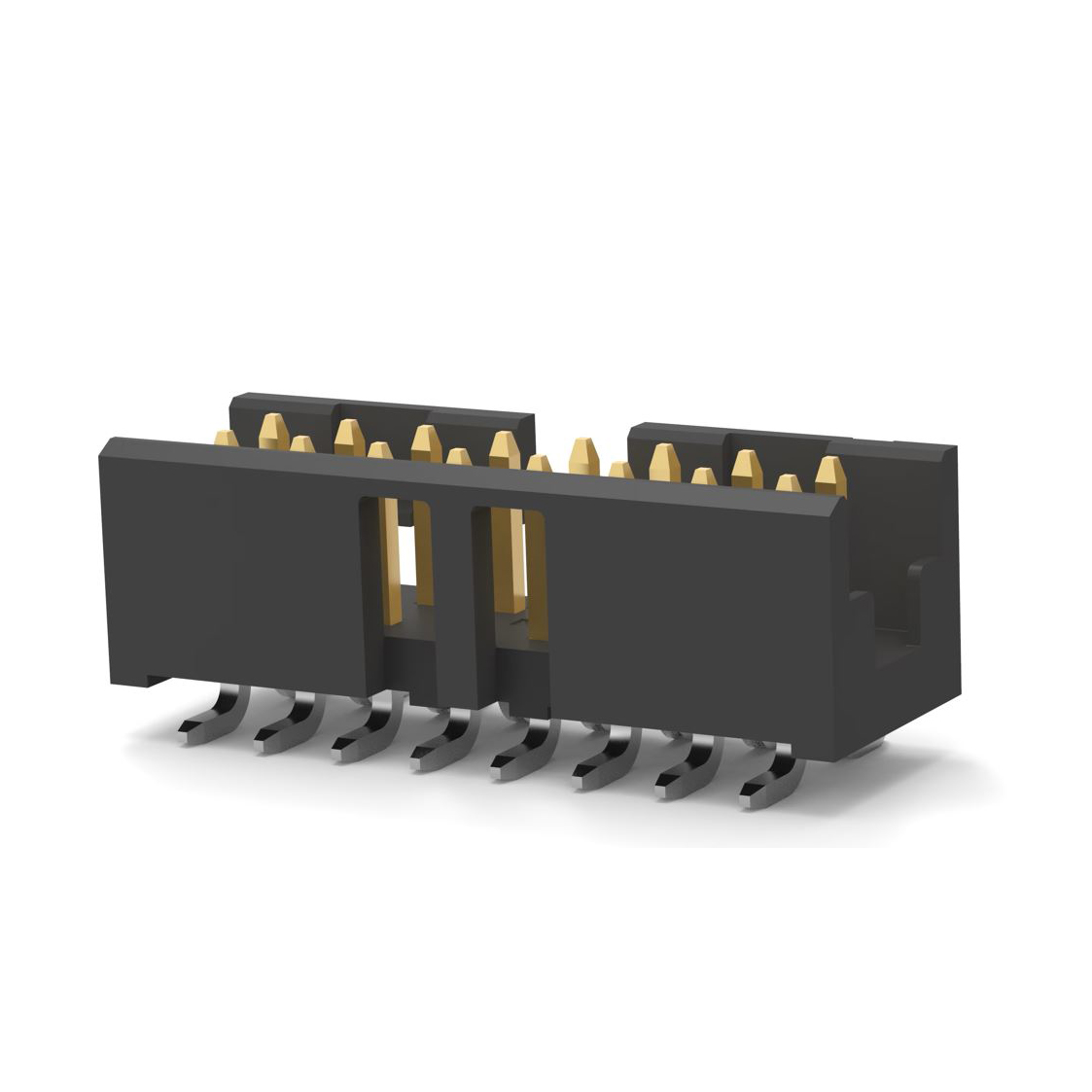

TE Connectivity Raychem Cable Protection 2823370-4	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	4	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black

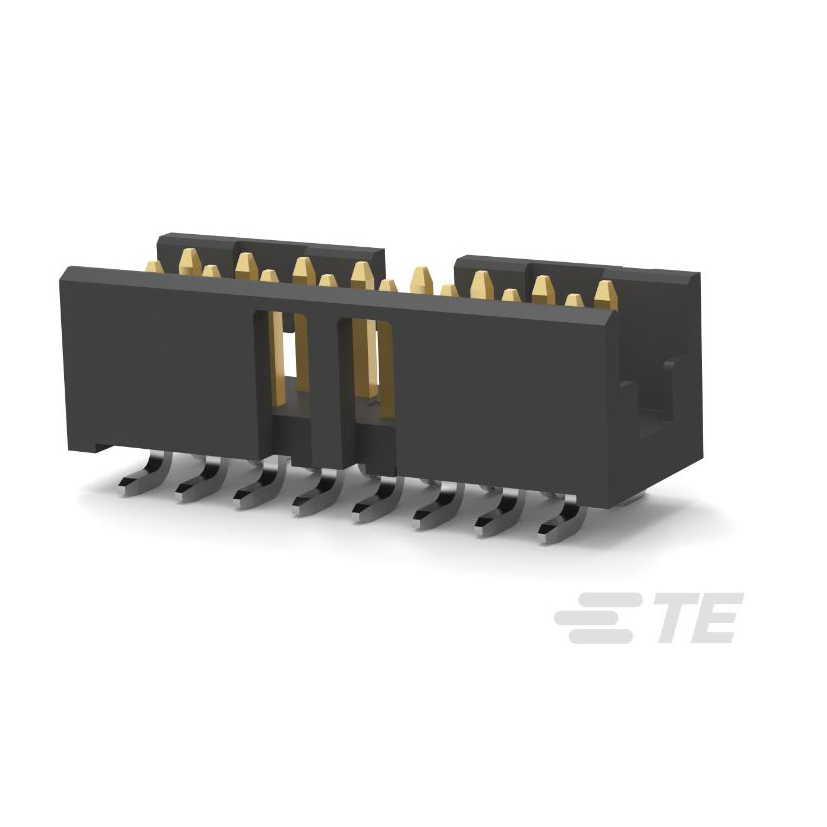

TE Connectivity Raychem Cable Protection 2823370-8	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	8	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black

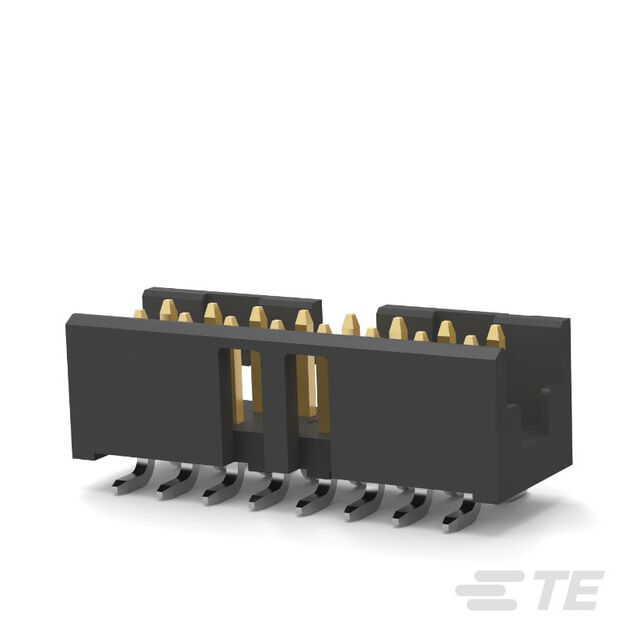

TE Connectivity Raychem Cable Protection 2823370-6	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	6	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black

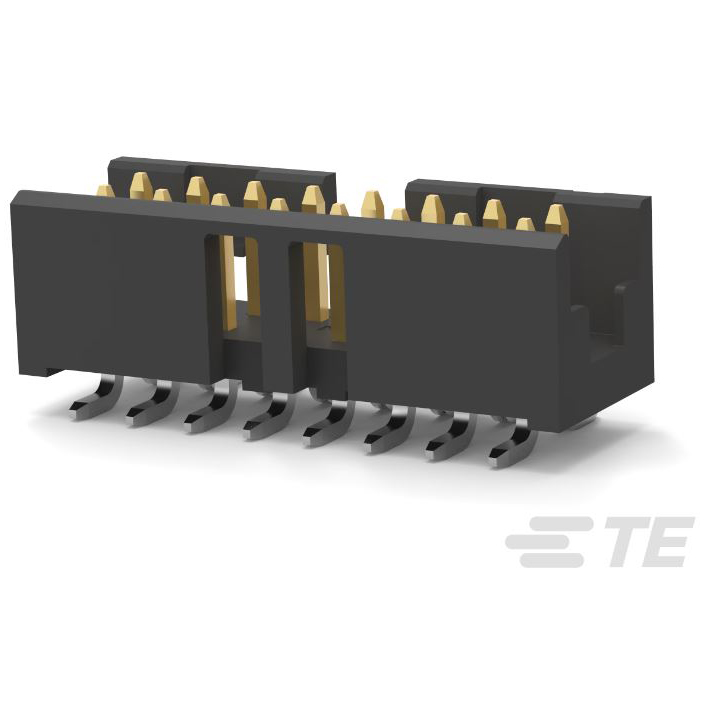

TE Connectivity Raychem Cable Protection 2-2823370-0	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	20	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black

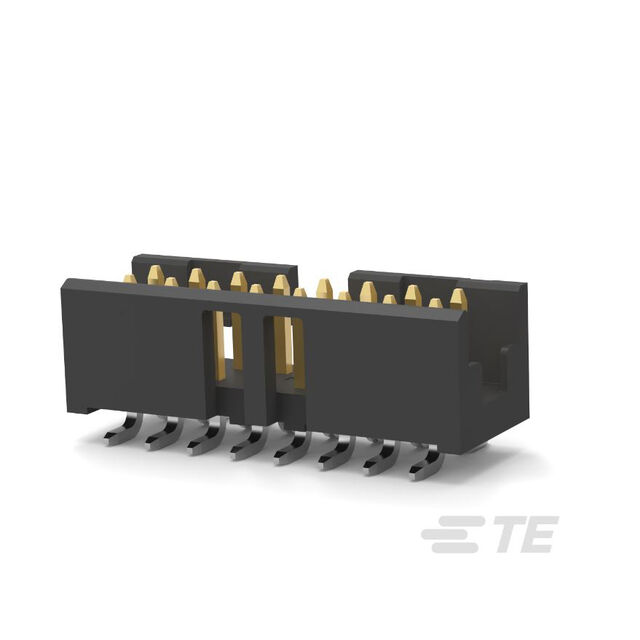

TE Connectivity Raychem Cable Protection 2-2823370-4	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	24	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black
TE Connectivity Raychem Cable Protection 1-2823370-4	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	14	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black

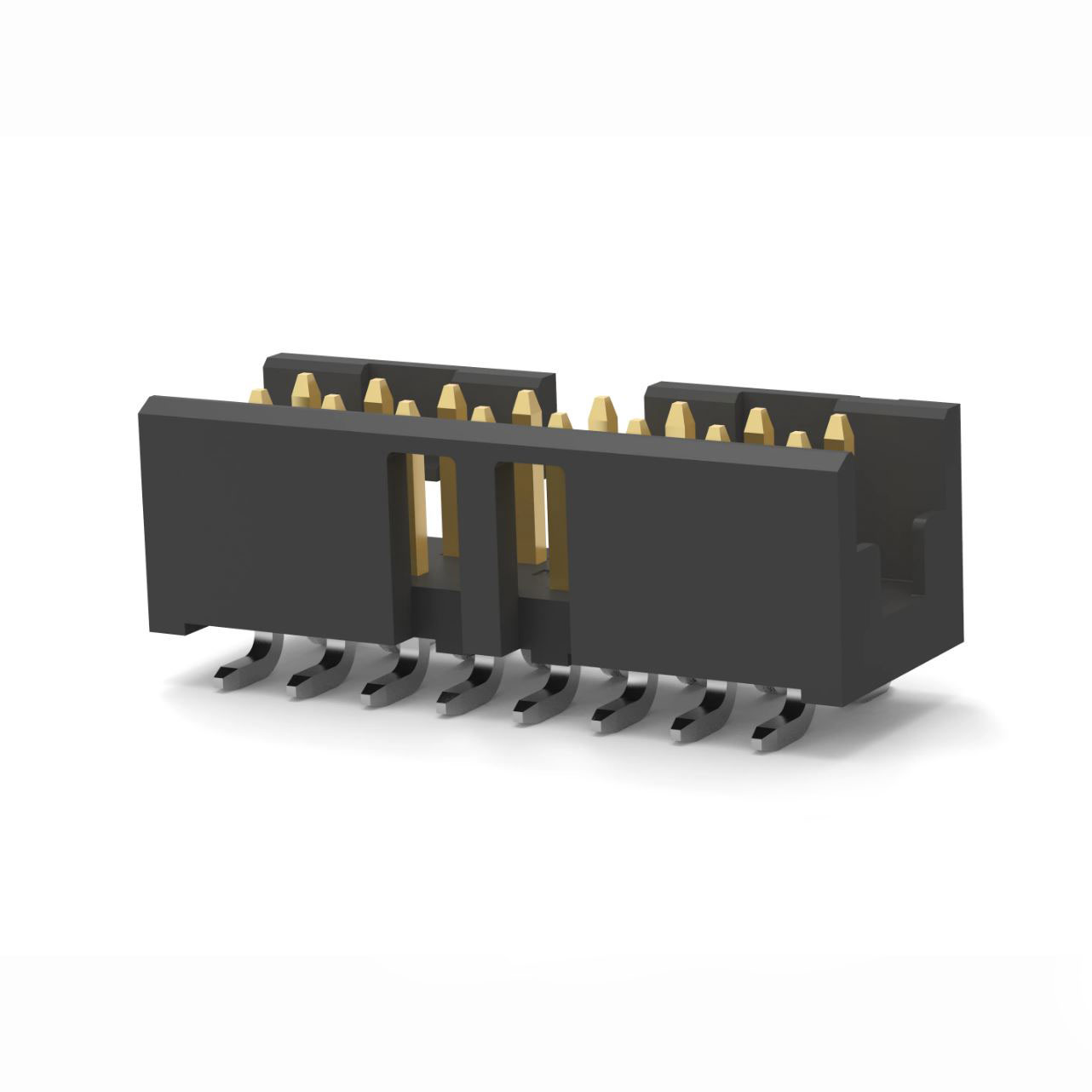

TE Connectivity Raychem Cable Protection 1-2823370-6	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold		Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black	16
TE Connectivity Raychem Cable Protection 1-2823370-0	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	10	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black
TE Connectivity Raychem Cable Protection 3-2823370-0	0.079 in	2 mm	Detent Lock	2	Header	Thermoplastic	UL94 V-0	5.51 mm	0.217 in	157.5 Áin	4 Ám	2 A	All	Gold	30	Solder	Surface Mount	Male Pin	Square	Phosphor Bronze	125 VAC	Shrouded - 2 Wall	0.079 in	2 mm	125 °C	-40 °C	Tin	Pick and Place	4 mm	0.157 in	30 Áin	0.76 Ám	Black
