504070 Series

Manufacturer: Molex

Catalog

0.20MM PITCH EASY-ON BACK FLIP FPC CONNECTOR, 0.95MM HEIGHT, 3.00MM WIDTH, DUAL CONTACT, RIGHT-ANGLE, SURFACE MOUNT, ZIF, 71 CIRCUITS

Part	Current Rating (Amps)	Housing Color	Mating Cycles	Material Flammability Rating	Housing Material	Height Above Board	Height Above Board	Contact Material	Voltage Rating	Actuator Material	Flat Flex Type	Pitch	Pitch	Cable End Type	Locking Feature	Contact Finish	Mounting Type	FFC, FCB Thickness [custom]	Number of Positions	Connector/Contact Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Color

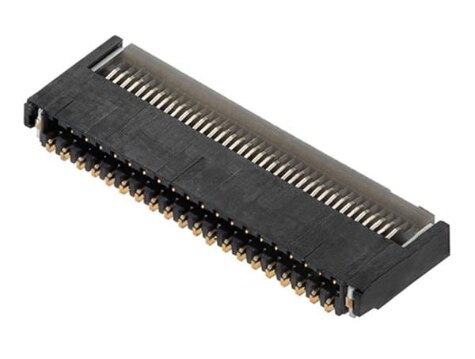

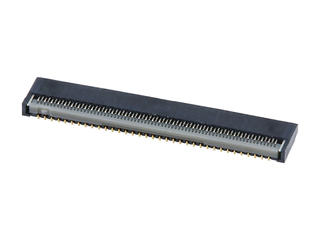

Molex 5040707181	0.2 A	Black	10	UL94 V-0	Thermoplastic	0.037 in	0.95 mm	Phosphor Bronze	50 V	Thermoplastic	FPC	0.2 mm	0.008 in	Tapered	Backlock Flip Lock	Gold	Surface Mount	0.2 mm	71	Contacts Top and Bottom	Solder	85 °C	-25 °C

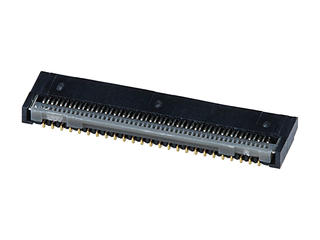

Molex 5040705191	0.2 A	Black	10	UL94 V-0	Glass Filled Liquid Crystal Polymer (LCP)	0.037 in	0.95 mm	Phosphor Bronze	50 V	Glass Filled Nylon Polyamide (PA)	FPC	0.2 mm	0.008 in	Tapered	Backlock Flip Lock	Gold	Right Angle Surface Mount	0.2 mm	51	Contacts Top and Bottom	Solder	85 °C	-25 °C	Gray
Molex 5040706191	0.2 A	Black	10	UL94 V-0	Glass Filled Liquid Crystal Polymer (LCP)	0.037 in	0.95 mm	Phosphor Bronze	50 V	Glass Filled Nylon Polyamide (PA)	FPC	0.2 mm	0.008 in	Tapered	Backlock Flip Lock	Gold	Right Angle Surface Mount	0.2 mm	61	Contacts Top and Bottom	Solder	85 °C	-25 °C	Gray
Molex 5040703991				UL94 V-0	Glass Filled Liquid Crystal Polymer (LCP)	0.037 in	0.95 mm	Phosphor Bronze	50 V	Glass Filled Nylon Polyamide (PA)	FPC	0.2 mm	0.008 in	Tapered	Backlock Flip Lock	Gold	Right Angle Surface Mount	0.2 mm	39	Contacts Top and Bottom	Solder	85 °C	-25 °C
