MDSM-10R-15-20 Series

MDSM-10R 5431 15-20

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

MDSM-10R 5431 15-20

Part	Current - Switching	Circuit	Type	Operate Time	Voltage - Switching DC	Termination Style	Height Above Board	Height Above Board	Operate Range [Min]	Operate Range [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall	Length - Overall	Capacitance	Size - Body [diameter]	Size - Body [x]	Size - Body [x]	Size - Body [diameter]	Mounting Type	Current - Carry	Release Time	Power - Rated	Voltage - Switching AC [custom]
Littelfuse/Commercial Vehicle Products MDSM-10R-15-20	350 mA 500 mA	SPST-NO	Glass Body Reed	500 µs	200 V	Gull Wing	0.079 in	2 mm	15	20 AT	125 °C	-40 °C	15.62 mm	0.615 in	0.2 pF	0.071 in	10.16 mm	0.4 in	1.8 mm	Surface Mount	1 A	0.1 ms	10 W	140 V

Catalog

MDSM-10R 5431 15-20

Key Features

• Surface mount normally open switch capable of switching 200Vdc or 0.5A at up to 10 Watts

• Available sensitivity range of 10-25 AT

Description

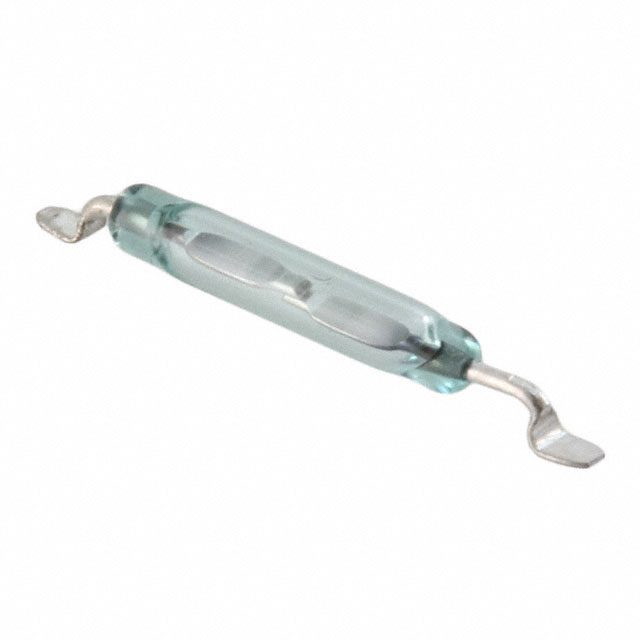

A sub-miniature, surface mount, normally open switch with a 10.16mm long x 1.80mm diameter (0.400" x 0.071") glass envelope. Capable of switching 200Vdc at 10W. Available sensitivity range of 10-25 AT. High insulation resistance of 1012 ohms minimum and low contact resistance of less than 120 milliohms. Available in surface mount version (MDSR-10). Ideally suited for reed relay applications, security, metering, limit sensing and telephone off-hook applications. Available in bulk packaging or on tape and reel.
