Schaffner FN3287 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 530V/305VAC 40A CHAS

Part	Frequency - Operating	Configuration	Current	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)	Termination Style	Filter Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated AC	Voltage - Rated AC (Phase to Phase)	Applications	Approval Agency
TE Connectivity AMP Connectors FN3287-40-33-C26-R65	60 Hz	Two Stage	40 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C	305 V 530 V	530 V	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3287-10-44-C26-R65	60 Hz	Two Stage	10 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C	305 V 530 V	530 V	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3287-125-35-C21-R65	60 Hz	Two Stage	125 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C	305 V 530 V	530 V	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3287-125-35-C33-R65	60 Hz	Two Stage	125 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C	305 V 530 V	530 V	Inverters Power Drive Systems

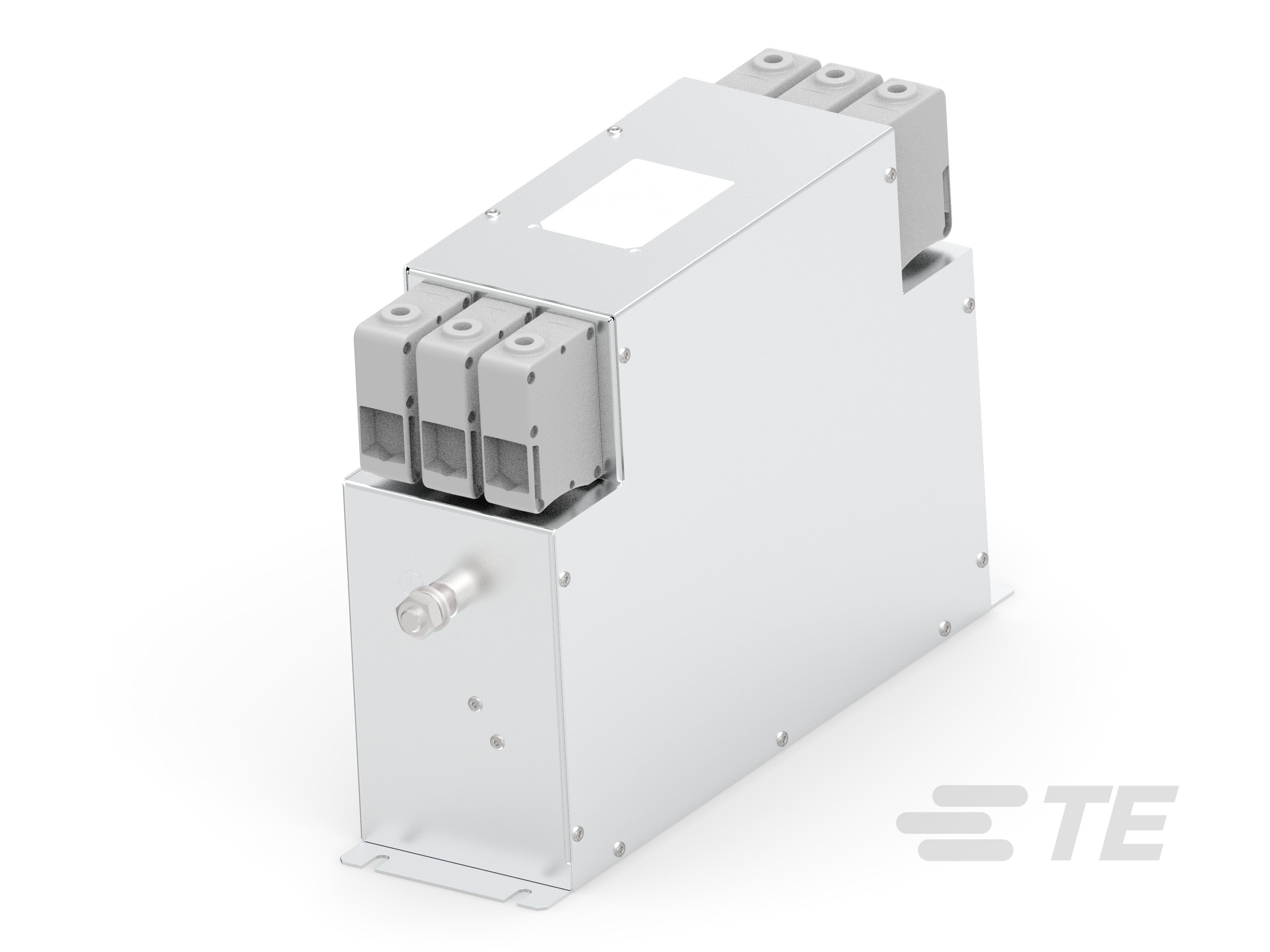

TE Connectivity AMP Connectors FN3287-230-40-C33-R65	60 Hz	Two Stage	230 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C		530 V	Inverters Power Drive Systems	CE ENEC UKCA UR
TE Connectivity AMP Connectors FN3287-20-33-C33-R65	60 Hz	Two Stage	20 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C	305 V 530 V	530 V	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3287-230-40-C26-R65	60 Hz	Two Stage	230 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C		530 V	Inverters Power Drive Systems	CE ENEC UKCA UR
TE Connectivity AMP Connectors FN3287-160-40-C26-R65	60 Hz	Two Stage	160 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C	305 V 530 V	530 V	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3287-63-53-C33-R65	60 Hz	Two Stage	63 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C	305 V 530 V	530 V	Inverters Power Drive Systems

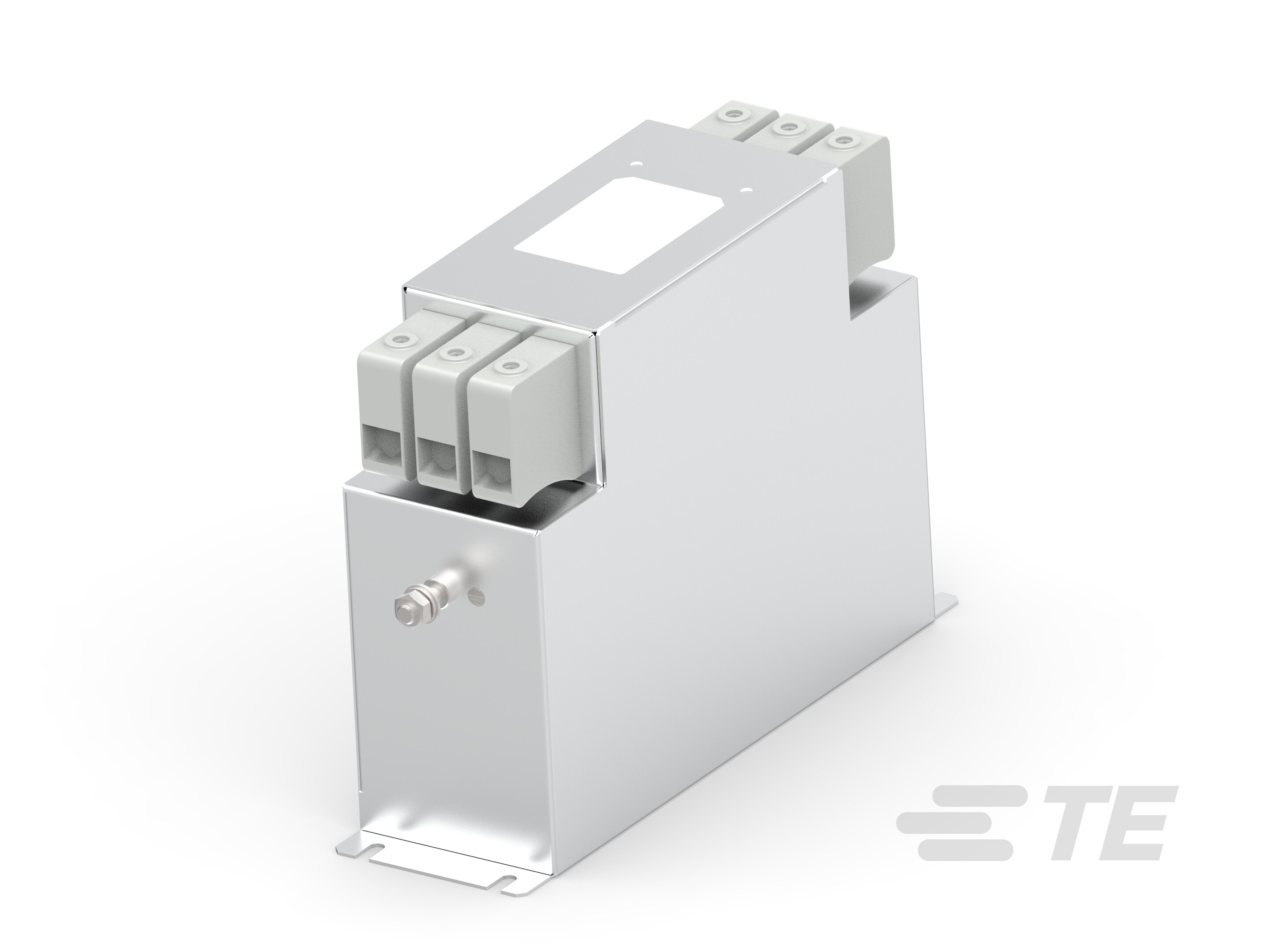

TE Connectivity AMP Connectors FN3287-100-35-C33-R65	60 Hz	Two Stage	100 A	Chassis Mount	305 V	Terminal Block	Three Phase (Delta)	-40 C	100 °C	305 V 530 V	530 V	Inverters Power Drive Systems
