BZV55C Series

Manufacturer: Taiwan Semiconductor Corporation

Catalog

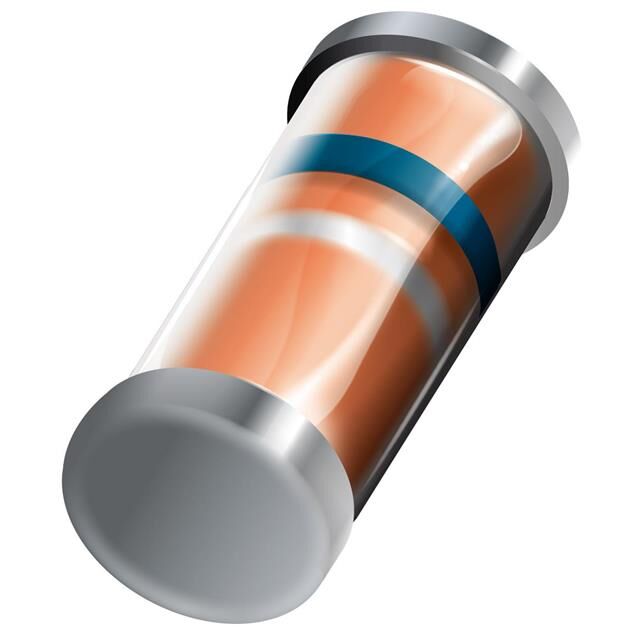

DIODE ZENER SINGLE 47V 5% 500MW 2-PIN MINI-MELF T/R

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Zener (Nom) (Vz)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Tolerance	Impedance (Max) (Zzt) [Max]	Power - Max [Max]	Mounting Type	Impedance (Max) (Zzt)
Taiwan Semiconductor Corporation BZV55C47 L0G	100 nA	Mini MELF	47 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %	110 Ohms	500 mW	Surface Mount
Taiwan Semiconductor Corporation BZV55C2V4 L0G	50 µA	Mini MELF	2.4 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %	85 Ohms	500 mW	Surface Mount
Taiwan Semiconductor Corporation BZV55C27 L0G	100 nA	Mini MELF	27 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %		500 mW	Surface Mount
Taiwan Semiconductor Corporation BZV55C3V0 L1G	4 µA	Mini MELF	3 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %	85 Ohms	500 mW	Surface Mount
Taiwan Semiconductor Corporation BZV55C10	100 nA	Mini MELF	10 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %		500 mW	Surface Mount	15 Ohms
Taiwan Semiconductor Corporation BZV55C30 L1G	100 nA	Mini MELF	30 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %		500 mW	Surface Mount
Taiwan Semiconductor Corporation BZV55C10 L0G	100 nA	Mini MELF	10 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %		500 mW	Surface Mount	15 Ohms
Taiwan Semiconductor Corporation BZV55C22 L0G	100 nA	Mini MELF	22 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %	55 Ohms	500 mW	Surface Mount
Taiwan Semiconductor Corporation BZV55C62 L0G	100 nA	Mini MELF	62 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %	150 Ohms	500 mW	Surface Mount
Taiwan Semiconductor Corporation BZV55C33 L1G	100 nA	Mini MELF	33 V	175 °C	-65 C	1 V	DO-213AC MINI-MELF SOD-80	5 %		500 mW	Surface Mount
