AFB0848 Series
Manufacturer: Delta Electronics
Beta
⌘K

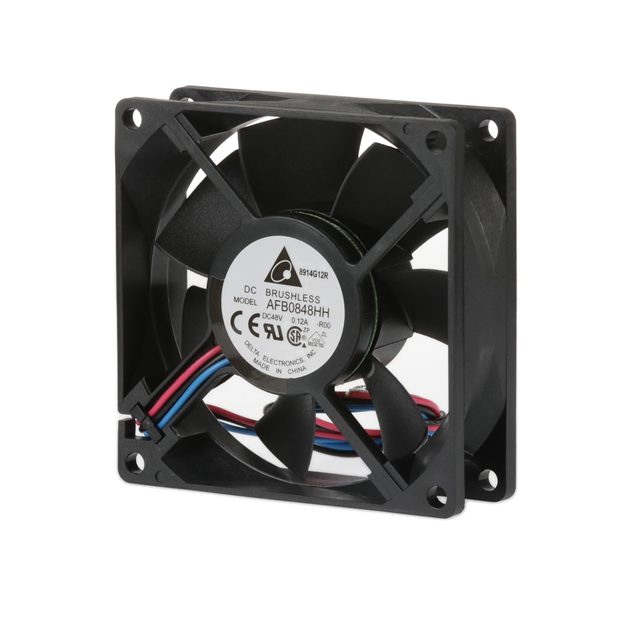

FAN AXIAL 80X25.4MM 48VDC WIRE
| Part | Material - Blade | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Bearing Type | Voltage - Rated | Fan Type | Width [y] | Static Pressure | Static Pressure | Air Flow | Air Flow | Features | Noise | Termination | Size / Dimension [z] | Size / Dimension [x] | RPM | Weight | Weight | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 28 V | 56 VDC | 70000 Hrs | 70 °C | -10 °C | 3.84 W | Ball | 48 VDC | Tubeaxial | 25.4 mm | 0.181 in H2O | 45.1 Pa | 37.4 CFM | 1.05 m³/min | Locked Rotor Sensor | 34 dB(A) | 3 Wire Leads | 80 mm | 80 mm | 3250 RPM | 0.176 lb | 80 g | CE CSA UL VDE |
