K88X-BD Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN D-SUB PLUG 25POS VERT SLDR
| Part | Color | Dielectric Material | Contact Material | Voltage Rating | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Connector Style | Contact Finish | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Type | Contact Type | Termination | Number of Rows [custom] | Current Rating (Amps) | Shell Material, Finish | Contact Finish Thickness | Mounting Type | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

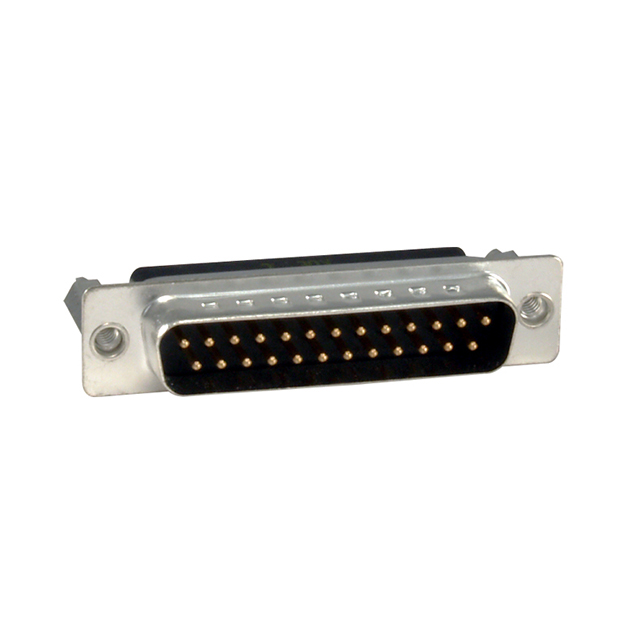

 Kycon, Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 30 VDC | Stamped | -55 C | 105 ░C | Board Side (4-40) | D-Sub | Gold | 25 | B DB | 3 | Plug Male Pins | Signal | Solder | 2 | 2 A | Nickel Plated Steel | Flash | Through Hole | UL94 V-0 | Grounding Indents |

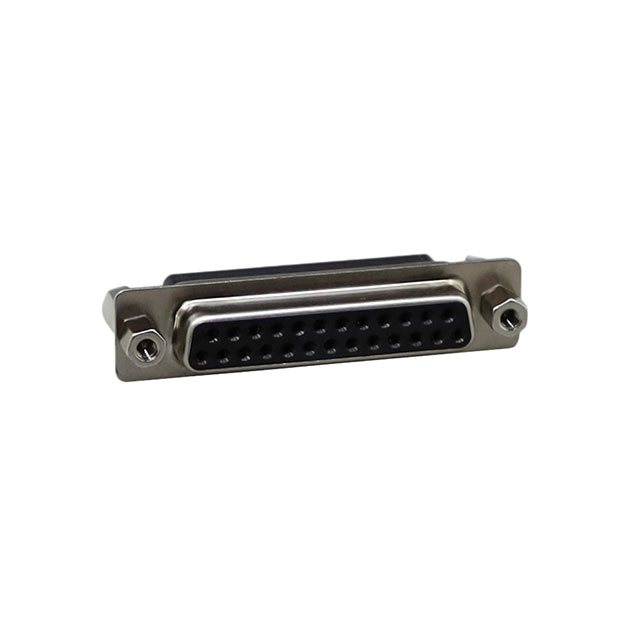

 Kycon, Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | Phosphor Bronze | 30 VDC | Stamped | -55 C | 105 ░C | Board Side (4-40) Mating Side Female Screwlock (4-40) | D-Sub | Gold | 25 | B DB | 3 | Receptacle Female Sockets | Signal | Solder | 2 | 2 A | Nickel Plated Steel | Flash | Through Hole | UL94 V-0 | Board Lock |
