282861 Series

Catalog

TERMI-BLOK PCB MOUNT 90 3P.7

Part	Screw Material - Plating	Wire Gauge [Max]	Wire Gauge [Min]	Clamp Material - Plating	Current	Wire Termination	Number of Levels	Color	Torque - Screw	Torque - Screw	Voltage	Mounting Type	Contact Material - Plating [custom]	Features	Pitch [x]	Pitch [x]	Mating Orientation	Positions Per Level	Screw Thread

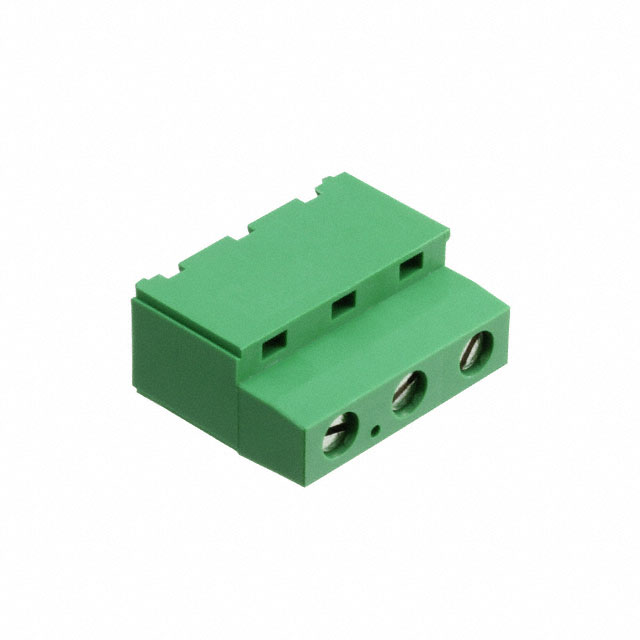

TE Connectivity Raychem Cable Protection 282861-3	Brass - Nickel Plated	30 AWG	12 AWG	Brass - Nickel Plated	24 A	Screw - Rising Cage Clamp	1	Green	0.79 Nm	7 Lb-In	300 V	Through Hole	Brass - Tin Plated	Interlocking (Side)	0.3 in	7.62 mm	Horizontal with Board	3	M3

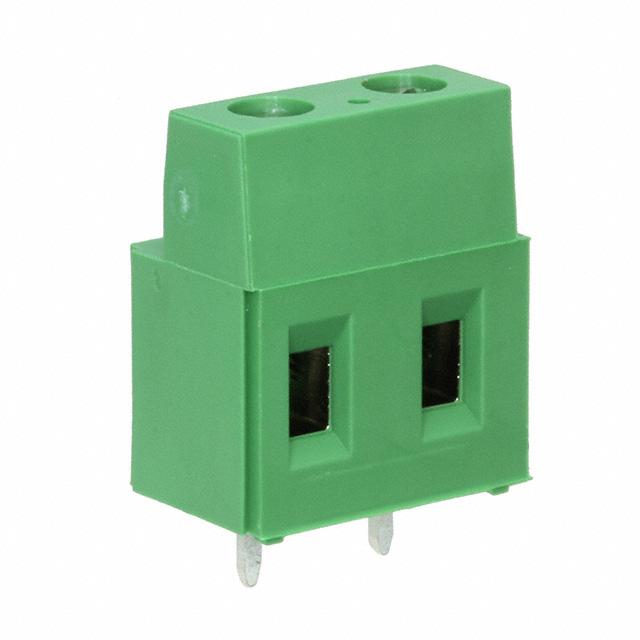

TE Connectivity Raychem Cable Protection 282861-2	Brass - Nickel Plated	30 AWG	12 AWG	Brass - Nickel Plated	24 A	Screw - Rising Cage Clamp	1	Green	0.79 Nm	7 Lb-In	300 V	Through Hole	Brass - Tin Plated	Interlocking (Side)	0.3 in	7.62 mm	Horizontal with Board	2	M3
