LB15RGW01 Series

Catalog

STANDARD SIZE SNAP-IN PUSHBUTTON

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Actuator Marking	Color - Actuator/Cap	Termination Style	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)	Actuator Type	Type	Switch Function	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color

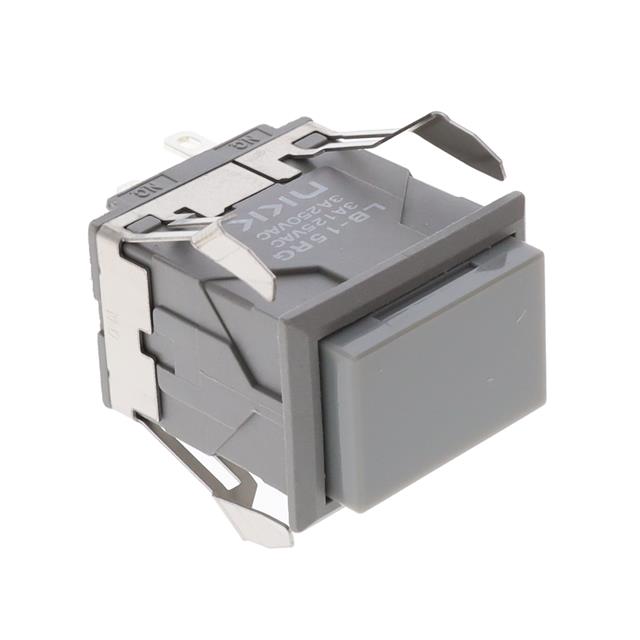

NKK Switches LB15RGW01-A	1000000 Cycles	100000 Cycles	125 V	No Marking	Black	Solder Quick Connect - 0.110" (2.8mm)	30 V	-25 °C	70 °C	SPDT	16.2 mm	22.4 mm	3 A	Button Rectangular	Standard	On-Mom	Panel Mount Snap-In
NKK Switches LB15RGW01-H	1000000 Cycles	100000 Cycles	125 V	No Marking		Solder Quick Connect - 0.110" (2.8mm)	30 V	-25 °C	70 °C	SPDT	16.2 mm	22.4 mm	3 A	Button Rectangular	Standard	On-Mom	Panel Mount Snap-In
NKK Switches LB15RGW01-JB	1000000 Cycles	100000 Cycles	125 V	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	30 V	-25 °C	70 °C	SPDT	16.2 mm	22.4 mm	3 A	Button Rectangular	Standard	On-Mom	Panel Mount Snap-In
NKK Switches LB15RGW01-01-JB	1000000 Cycles	100000 Cycles	125 V	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	30 V	-25 °C	50 °C	SPDT	16.2 mm	22.4 mm	3 A	Button Rectangular	Illuminated Standard	On-Mom	Panel Mount Snap-In	110 VAC	Neon White
NKK Switches LB15RGW01-6G-JB	1000000 Cycles	100000 Cycles	125 V	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	30 V	-25 °C	50 °C	SPDT	16.2 mm	22.4 mm	3 A	Button Rectangular	Illuminated Standard	On-Mom	Panel Mount Snap-In	3.6 VDC	Blue LED
