E9225 Series

Catalog

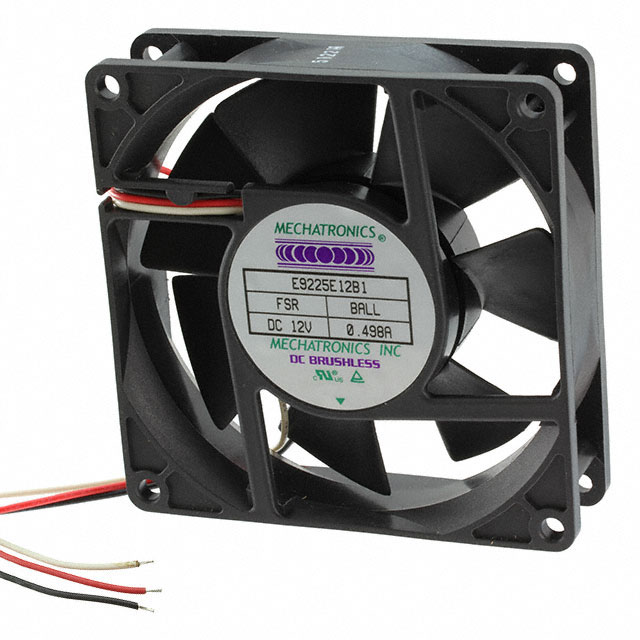

FAN AXIAL 92X25MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Termination	Approval Agency	Bearing Type	Air Flow	Air Flow	Fan Type	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Noise	Voltage - Rated	Features	RPM
Mechatronics Fan Group E9225X12B-FSR-CC	0.55 A	Polybutylene Terephthalate (PBT)	2 Wire Leads	CE cUL TUV UL	Ball	60 CFM	1.68 m³/min	Tubeaxial	111.13 g	0.245 lb	79.7 Pa	0.32 in H2O	25 mm	92 mm	92 mm	43 dB	12 VDC	Conformal Coating Thermal Overload Protector (TOP)	4000 RPM
Mechatronics Fan Group E9225M24B-FSR	0.125 Amps	Polybutylene Terephthalate (PBT)	2 Wire Leads	CE cUL TUV UL	Ball	44 CFM	1.23 m³/min	Tubeaxial	111.13 g	0.245 lb	47.3 Pa	0.19 in H2O	25 mm	92 mm	92 mm	32 dB	24 VDC	Thermal Overload Protector (TOP)	2800 RPM
Mechatronics Fan Group E9225X48B-FSR		Polybutylene Terephthalate (PBT)	2 Wire Leads	CE cUL TUV UL	Ball	60 CFM	1.68 m³/min	Tubeaxial	111.13 g	0.245 lb	79.7 Pa	0.32 in H2O	25 mm	92 mm	92 mm	43 dB	48 VDC	Thermal Overload Protector (TOP)	4000 RPM
Mechatronics Fan Group E9225M24B2-FSR	0.125 Amps	Polybutylene Terephthalate (PBT)	3 Wire Leads	CE cUL TUV UL	Ball	44 CFM	1.23 m³/min	Tubeaxial	111.13 g	0.245 lb	47.3 Pa	0.19 in H2O	25 mm	92 mm	92 mm	32 dB	24 VDC	Locked Rotor Sensor Thermal Overload Protector (TOP)	2800 RPM
Mechatronics Fan Group E9225M24B2-FSR-WS	0.125 Amps	Polybutylene Terephthalate (PBT)	4 Wire Leads	CE cUL TUV UL	Ball	44 CFM	1.23 m³/min	Tubeaxial	111.13 g	0.245 lb	47.3 Pa	0.19 in H2O	25 mm	92 mm	92 mm	32 dB	24 VDC	Alarm Sensor Locked Rotor Sensor Thermal Overload Protector (TOP)	2800 RPM
Mechatronics Fan Group E9225H12B3-FSR	360 mA	Polybutylene Terephthalate (PBT)	2 Wire Leads	CE cUL TUV UL	Ball	51 CFM	1.43 mł/min	Tubeaxial	111.13 g	0.245 lb	59.8 Pa	0.24 in H2O	25 mm	92 mm	92 mm	36 dB	12 VDC	Thermal Overload Protector (TOP) Thermistor	3200 RPM
Mechatronics Fan Group E9225M12B-FSR	0.235 A	Polybutylene Terephthalate (PBT)	2 Wire Leads	CE cUL TUV UL	Ball	44 CFM	1.23 m³/min	Tubeaxial	111.13 g	0.245 lb	47.3 Pa	0.19 in H2O	25 mm	92 mm	92 mm	32 dB	12 VDC	Thermal Overload Protector (TOP)	2800 RPM
Mechatronics Fan Group E9225H12B-FSR	360 mA	Polybutylene Terephthalate (PBT)	2 Wire Leads	CE cUL TUV UL	Ball	51 CFM	1.43 mł/min	Tubeaxial	111.13 g	0.245 lb	59.8 Pa	0.24 in H2O	25 mm	92 mm	92 mm	36 dB	12 VDC	Thermal Overload Protector (TOP)	3200 RPM
Mechatronics Fan Group E9225E24B2-FSR	0.255 A	Polybutylene Terephthalate (PBT)	3 Wire Leads	CE cUL TUV UL	Ball	56 CFM	1.57 m³/min	Tubeaxial	111.13 g	0.245 lb	69.7 Pa	0.28 in H2O	25 mm	92 mm	92 mm	39 dB(A)	24 VDC	Locked Rotor Sensor Thermal Overload Protector (TOP)	3600 RPM
Mechatronics Fan Group E9225E48B-FSR	85 mA	Polybutylene Terephthalate (PBT)	2 Wire Leads	CE cUL TUV UL	Ball	56 CFM	1.57 m³/min	Tubeaxial	111.13 g	0.245 lb	69.7 Pa	0.28 in H2O	25 mm	92 mm	92 mm	39 dB(A)	48 VDC	Thermal Overload Protector (TOP)	3600 RPM
