CT310 Series

Catalog

2D ANGULAR SENSOR, DFN-8 PACKAGE

Part	For Measuring	Package / Case	Output	Technology	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Signal	Voltage - Supply [Min]	Voltage - Supply [Max]	Actuator Type	Termination Style	Package / Case	Package / Case	Supplied Contents	Contents	Utilized IC / Part	Interface	Sensor Type
Allegro MicroSystems CT310LS-HD8	Angle Rotary	8-XFDFN Exposed Pad	Analog Voltage	Magnetoresistive	8-DFN (2x2)	125 °C	-40 C	Surface Mount	Cosine Sine	1 V	5.5 V	External Magnet Not Included	Gull Wing

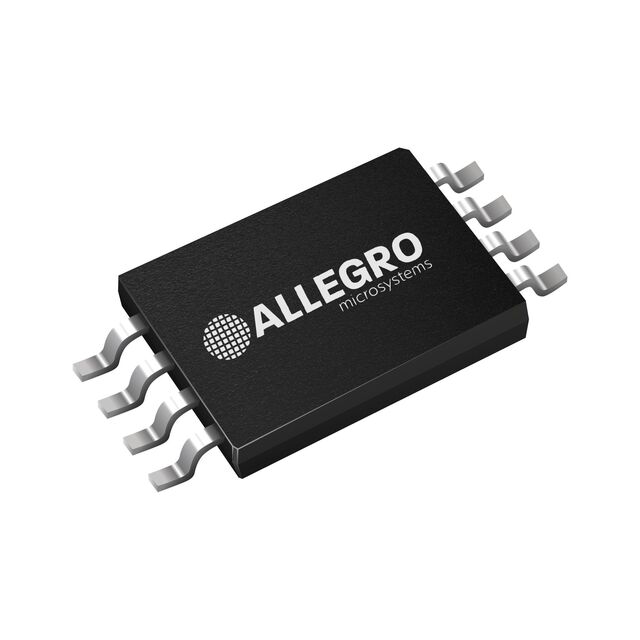

Allegro MicroSystems CT310LS-FT8	Angle Rotary	8-TSSOP	Analog Voltage	Magnetoresistive	8-TSSOP	150 °C	-40 C	Surface Mount	Cosine Sine	1 V	5.5 V	External Magnet Not Included	Gull Wing	0.173 in	4.4 mm
Allegro MicroSystems CT310LS-IT8	Angle Rotary	8-TSSOP	Analog Voltage	Magnetoresistive	8-TSSOP	85 °C	-40 C	Surface Mount	Cosine Sine	1 V	5.5 V	External Magnet Not Included	Gull Wing	0.173 in	4.4 mm
Allegro MicroSystems CT310LS-ID8	Angle Rotary	8-XFDFN Exposed Pad	Analog Voltage	Magnetoresistive	8-DFN (2x2)	85 °C	-40 C	Surface Mount	Cosine Sine	1 V	5.5 V	External Magnet Not Included	Gull Wing

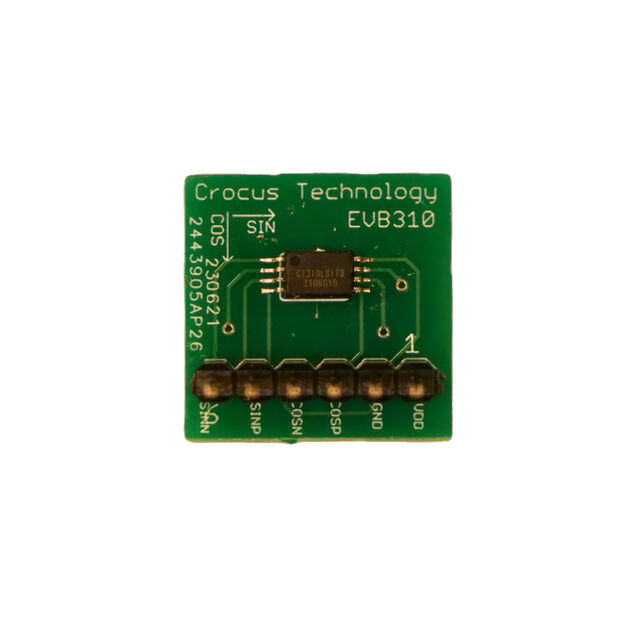

Allegro MicroSystems EVB310										1 V	5.5 V					Board(s)	Board(s)	CT310	Analog	Magnetic Rotary Position
Allegro MicroSystems CT310LS-FD8	Angle Rotary	8-XFDFN Exposed Pad	Analog Voltage	Magnetoresistive	8-DFN (2x2)	150 °C	-40 C	Surface Mount	Cosine Sine	1 V	5.5 V	External Magnet Not Included	Gull Wing
Allegro MicroSystems CT310LS-HT8	Angle Rotary	8-TSSOP	Analog Voltage	Magnetoresistive	8-TSSOP	125 °C	-40 C	Surface Mount	Cosine Sine	1 V	5.5 V	External Magnet Not Included	Gull Wing	0.173 in	4.4 mm
