120521 Series

Catalog

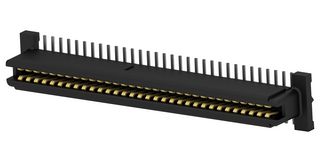

CONN IEEE 1386 RCP 64 POS 1MM SOLDER ST TOP ENTRY SMD T/R

Part	Mounting Type	Number of Positions	Features	Contact Finish	Pitch	Pitch	Height Above Board	Height Above Board	Mated Stacking Heights	Connector Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 1-120521-1	Surface Mount	64	Board Guide	Gold	1 mm	0.039 in	0.212 in	5.38 mm	8 mm 9 mm 10 mm	Receptacle Outer Shroud Contacts	2	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 120521-1	Surface Mount	64	Board Guide	Gold	1 mm	0.039 in	0.212 in	5.38 mm	8 mm 9 mm 10 mm	Receptacle Outer Shroud Contacts	2	30 Áin	0.76 Ám
