629W21W Series
Manufacturer: EDAC Inc.
Beta
⌘K

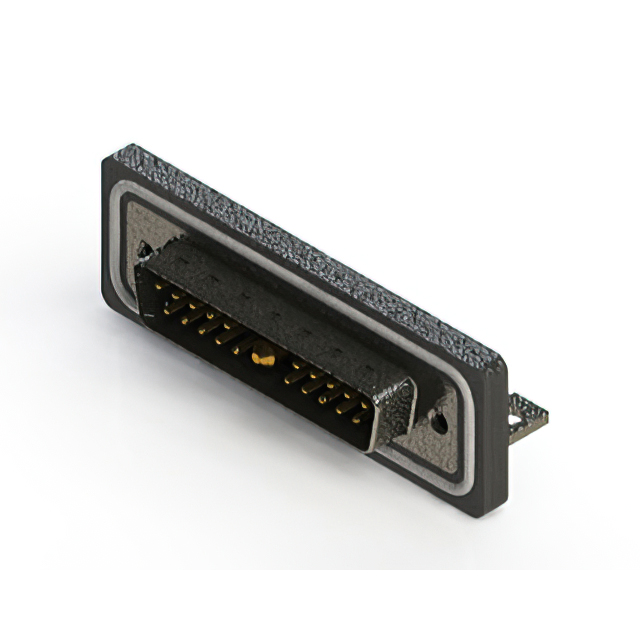

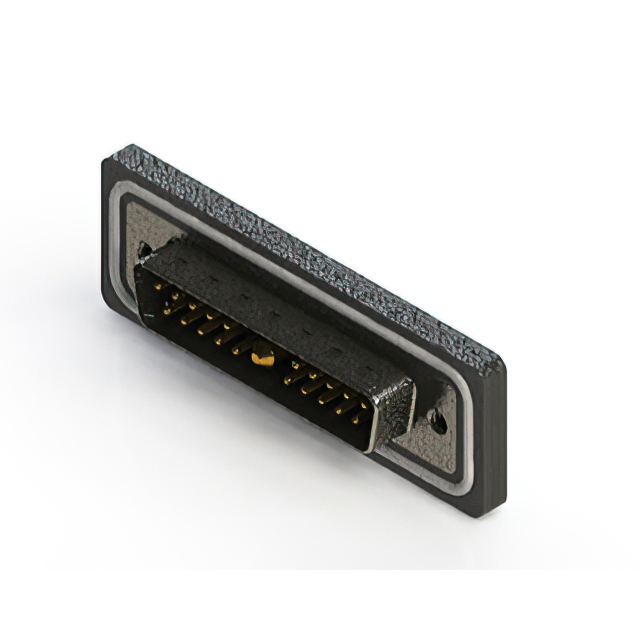

CONN D-SUB PLUG 21POS R/A SLDR
| Part | Voltage Rating | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Flange Feature | Flange Feature | Features | Connector Type | Number of Positions | Current Rating (Amps) | Mounting Type | Contact Type | Number of Rows [custom] | Termination | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Ingress Protection | Material Flammability Rating | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell | 4-40 | Grounding Indents Shielded | Plug Male Pins | 21 | 5 A 30 A | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | UL94 V-0 | ||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell (M3) | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Plug Male Pins | 21 | 5 A 30 A | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | ||||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell (M3) | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Plug Male Pins | 21 | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | 5 µin | 0.127 µm | IP67 - Dust Tight Waterproof | UL94 V-0 | 20A 5A | |||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell | 4-40 | Grounding Indents Shielded | Plug Male Pins | 21 | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | UL94 V-0 | 10A 5A | ||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell | 4-40 | Grounding Indents Mounting Brackets Shielded | Plug Male Pins | 21 | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | 5 µin | 0.127 µm | IP67 - Dust Tight Waterproof | UL94 V-0 | 20A 5A | ||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell (M3) | Grounding Indents Shielded | Plug Male Pins | 21 | 5 A 40 A | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | UL94 V-0 | |||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell | 4-40 | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | 21 | 5 A 40 A | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | 5 µin | 0.127 µm | IP67 - Dust Tight Waterproof | UL94 V-0 | ||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell (M3) | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Plug Male Pins | 21 | 5 A 40 A | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | 15 µin | 0.38 µm | IP67 - Dust Tight Waterproof | UL94 V-0 | |||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell | 4-40 | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | 21 | 5 A 40 A | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | |||
 EDAC Inc. | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 125 °C | Copper Alloy | Gold | Nickel Plated Steel | 21W1 B DB | 3 | Housing/Shell | 4-40 | Grounding Indents Shielded | Plug Male Pins | 21 | 5 A 40 A | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Solder | Combo D-Sub | 5 µin | 0.127 µm | IP67 - Dust Tight Waterproof | UL94 V-0 |
