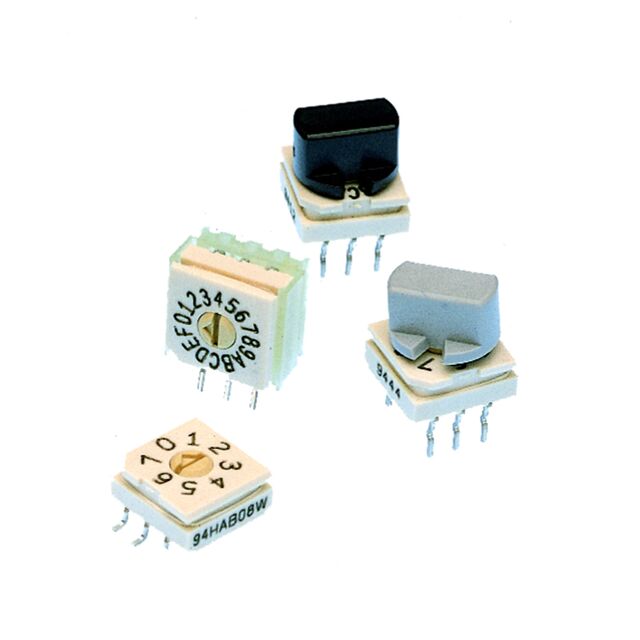

94HCB10 Series

Catalog

SWITCH ROTARY DIP BCD 0.1A 50V

Part	Mechanical Life	Length	Length	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Mounting Type	Pitch	Pitch	Contact Material	Contact Finish	Termination Style	Washable	Actuator Level	Current Rating (Amps)	Circuit	Number of Positions	Features	Actuator Type
Grayhill Inc. 94HCB10RAT	10000 Steps	10.92 mm	0.43 in	Plastic	85 °C	-40 C	10.16 mm	0.4 in	50 V	Right Angle Through Hole	2.54 mm	0.1 "	Copper Alloy	Gold	PC Pin		Raised	100 mA	BCD	10	Sealed	Rotary with Shaft
