8233A Series
Manufacturer: Belden Inc.
Beta
⌘K

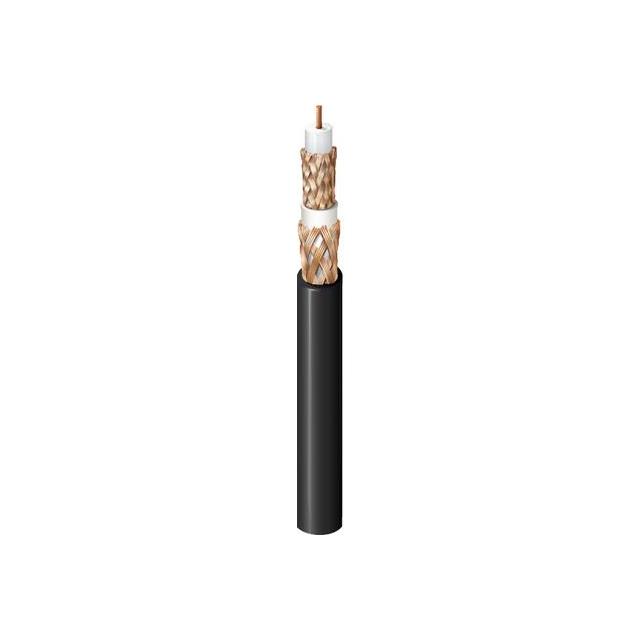

CABLE TRIAXIAL RG-11 14AWG 4000'
| Part | Shield Coverage | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Jacket (Insulation) Material | Usage | Wire Gauge | Conductor Strand | Length | Length | Shield Type | Cable Type | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 % | 84 | 0.285 in | 7.24 mm | Copper Bare | Copper Bare | 80 °C | -40 C | 12.07 mm | 0.475 in | RG-11 | Poly-Vinyl Chloride (PVC) | Video | 14.5 AWG | Solid | 1219.2 m | 4000 ' | Braid | Triaxial | Black |
