FB10S015 Series

Catalog

CONN FPC BOTTOM 15POS 0.3MM R/A

Part	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Actuator Color	Housing Color	Current Rating (Amps)	Mounting Type	Pitch	Pitch	FFC, FCB Thickness [custom]	Termination	Housing Material	Cable End Type	Contact Material	Connector/Contact Type	Contact Finish	Number of Positions	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Locking Feature	Flat Flex Type

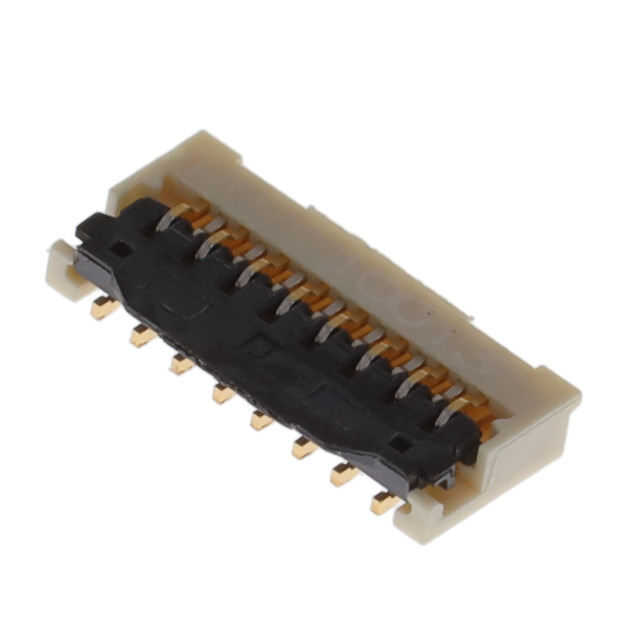

JAE Electronics FB10S015JT1R6000	1.25 Áin	0.03 Ám	20	Black	White	0.35 A	Right Angle Surface Mount	0.012 in	0.3 mm	0.2 mm	Solder	Plastic	Tabbed or Tapered	Phosphor Bronze	Contacts Bottom	Gold	15	Plastic	85 °C	-40 C	0.88 mm	0.035 in	50 V	Flip Lock	FPC
