302-R30 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

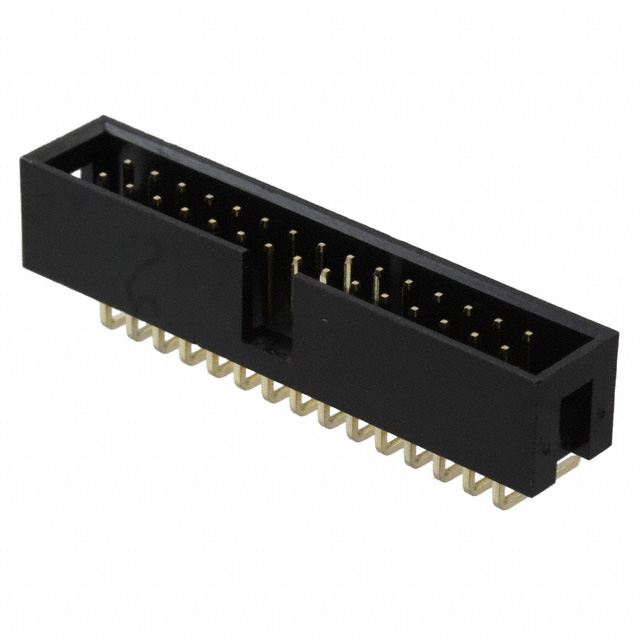

CONN HEADER R/A 30POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Insulation Color | Number of Positions Loaded | Connector Type | Insulation Material | Termination | Number of Rows [custom] | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Shrouding | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish - Post | Current Rating (Amps) | Style | Voltage Rating | Number of Positions | Features | Contact Finish - Mating | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness - Mating | Contact Shape | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Push-Pull | Black | All | Header | Polyester Glass Filled | Solder | 2 | UL94 V-0 | 0.122 in | 3.1 mm | Shrouded - 4 Wall | 0.1 " | 2.54 mm | Male Pin | Gold | 3 A | Board to Cable/Wire | 250 V | 30 | Keying Slot | Gold | 0.358 " | 9.1 mm | -40 C | 105 ░C | Right Angle Through Hole | Flash | Square | Brass | 0.1 in | 2.54 mm |
