VESD03 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
TVS DIODE 3VWM 8.7VC SOT323
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Unidirectional Channels | Capacitance @ Frequency | Grade | Qualification | Power - Peak Pulse | Current - Peak Pulse (10/1000µs) | Voltage - Clamping (Max) @ Ipp [Max] | Power Line Protection | Voltage - Reverse Standoff (Typ) | Supplier Device Package | Mounting Type | Type | Voltage - Breakdown (Min) [Min] | Package / Case | Unidirectional Channels [custom] | Applications | Voltage - Clamping (Max) @ Ipp |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 150 °C | -55 °C | 2 | 112 pF | Automotive | AEC-Q101 | 100 W | 11.6 A | 8.7 V | 3 V | SOT-323 | Surface Mount | Zener | 4.4 V | SC-70 SOT-323 | ||||
 Vishay General Semiconductor - Diodes Division | 150 °C | -55 °C | 112 pF | Automotive | AEC-Q101 | 100 W | 11.6 A | 8.7 V | 3 V | SOD-523 | Surface Mount | Zener | 4.4 V | SC-79 SOD-523 | 1 | ||||

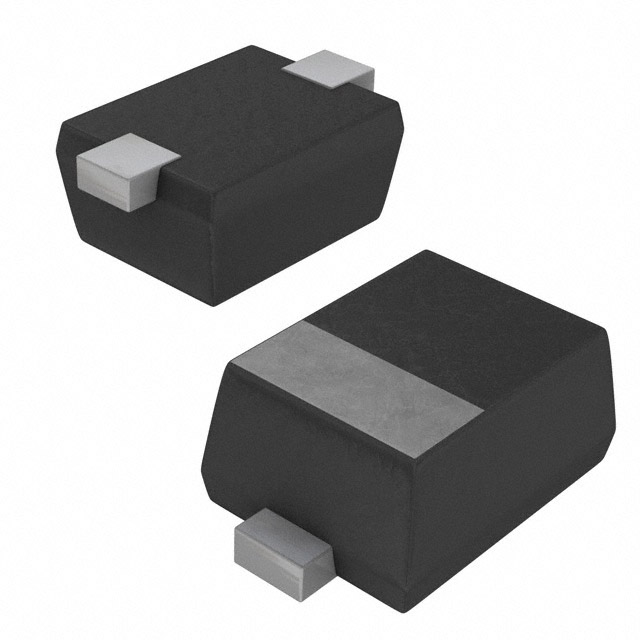

 Vishay General Semiconductor - Diodes Division | 125 °C | -40 C | 1 MHz 78 pF | 95 W | 9.5 A | 10 V | 3.3 V | SOD-923 | Surface Mount | Zener | 5 V | SOD-923 | 1 | General Purpose | |||||
Vishay General Semiconductor - Diodes Division | 150 °C | -55 °C | 2 | 112 pF | Automotive | AEC-Q101 | 100 W | 11.6 A | 8.7 V | 3 V | SOT-323 | Surface Mount | Zener | 4.4 V | SC-70 SOT-323 | ||||
 Vishay General Semiconductor - Diodes Division | 125 °C | -40 C | 1 MHz 78 pF | 95 W | 9.5 A | 10 V | 3.3 V | LLP1006-2L | Surface Mount | Zener | 5 V | SOD-882 | 1 | General Purpose | |||||
Vishay General Semiconductor - Diodes Division | 125 °C | -40 C | 110 pF | 108 W | 9 A | 3 V | SOD-523 | Surface Mount | Zener | 4 V | SC-79 SOD-523 | 1 | General Purpose | 12 V | |||||
Vishay General Semiconductor - Diodes Division | 125 °C | -40 C | 110 pF | 9 A | 12 V | 3 V | SOD-523 | Surface Mount | Zener | 4 V | SC-79 SOD-523 | 1 | General Purpose | ||||||
 Vishay General Semiconductor - Diodes Division | 125 °C | -40 C | 25 pF | 31 W | 3.5 A | 9 V | 3.3 V | LLP1006-2L | Surface Mount | Zener | 5 V | SOD-882 | 1 | General Purpose | |||||
Vishay General Semiconductor - Diodes Division | 150 °C | -55 °C | 112 pF | Automotive | AEC-Q101 | 100 W | 11.6 A | 8.7 V | 3 V | SOD-523 | Surface Mount | Zener | 4.4 V | SC-79 SOD-523 | 1 | ||||
 Vishay General Semiconductor - Diodes Division | 150 °C | -55 °C | 112 pF | Automotive | AEC-Q101 | 100 W | 11.6 A | 8.7 V | 3 V | DFN1006-2A | Surface Mount | Zener | 4.45 V | 0402 (1006 Metric) | 1 |
