SDS107 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN D-SUB RCPT 15POS R/A SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Dielectric Material | Color | Voltage Rating | Number of Rows [custom] | Contact Finish | Contact Finish Thickness | Number of Positions | Shell Size, Connector Layout | Connector Style | Contact Type | Backset Spacing | Backset Spacing | Mounting Type | Flange Feature | Termination | Features | Connector Type | Current Rating (Amps) | Material Flammability Rating | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

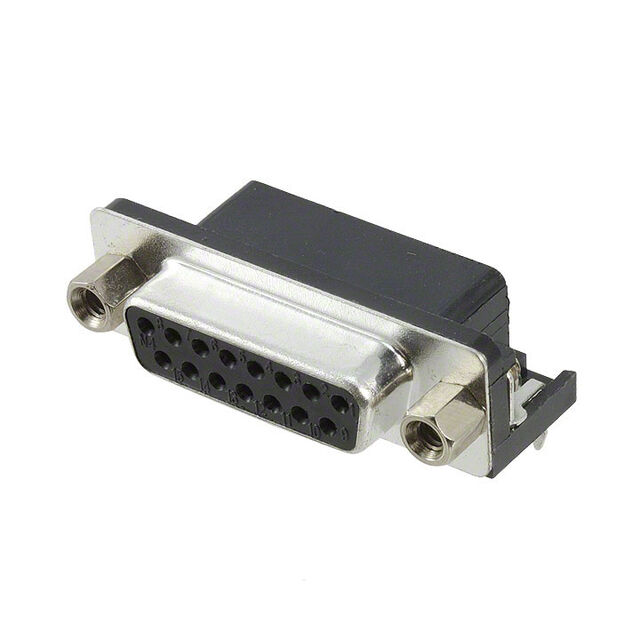

 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 15 | 2 | D-Sub | Signal | 7.2 mm | 0.283 in | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Board Lock | Receptacle Female Sockets | 3 A | UL94 V-0 | ||||||

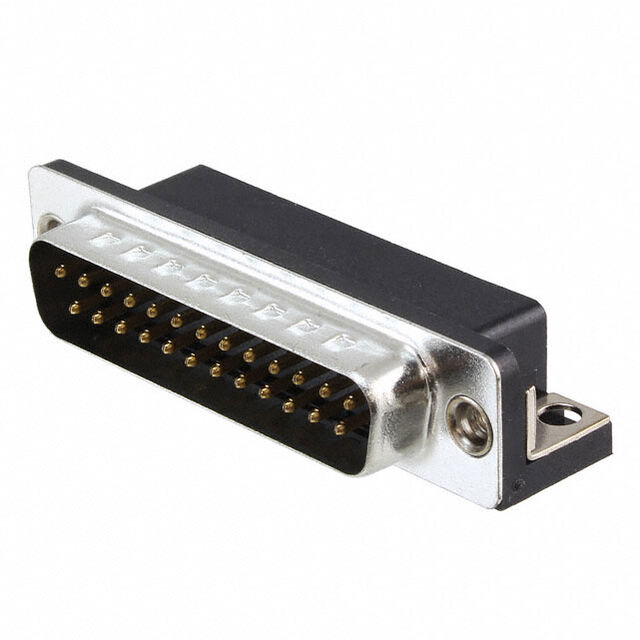

 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 25 | D-Sub | Signal | 7.2 mm | 0.283 in | Right Angle Through Hole | Housing/Shell | Solder | Ground Strap Grounding Indents | Plug Male Pins | 3 A | UL94 V-0 | 4-40 | B DB | 3 | ||||
 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 25 | D-Sub | Signal | 7.2 mm | 0.283 in | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Board Lock Grounding Indents | Plug Male Pins | 3 A | UL94 V-0 | B DB | 3 | |||||

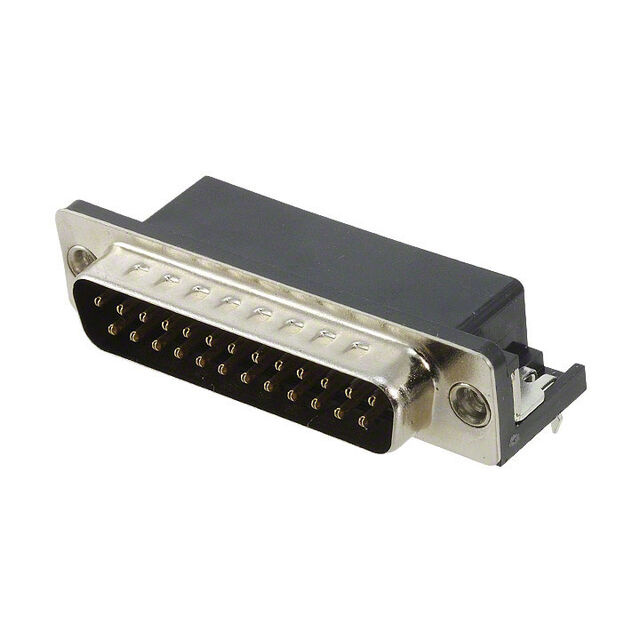

Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 25 | D-Sub | Signal | 7.2 mm | 0.283 in | Right Angle Through Hole | Housing/Shell | Solder | Board Lock Grounding Indents | Plug Male Pins | 3 A | UL94 V-0 | 4-40 | B DB | 3 | ||||

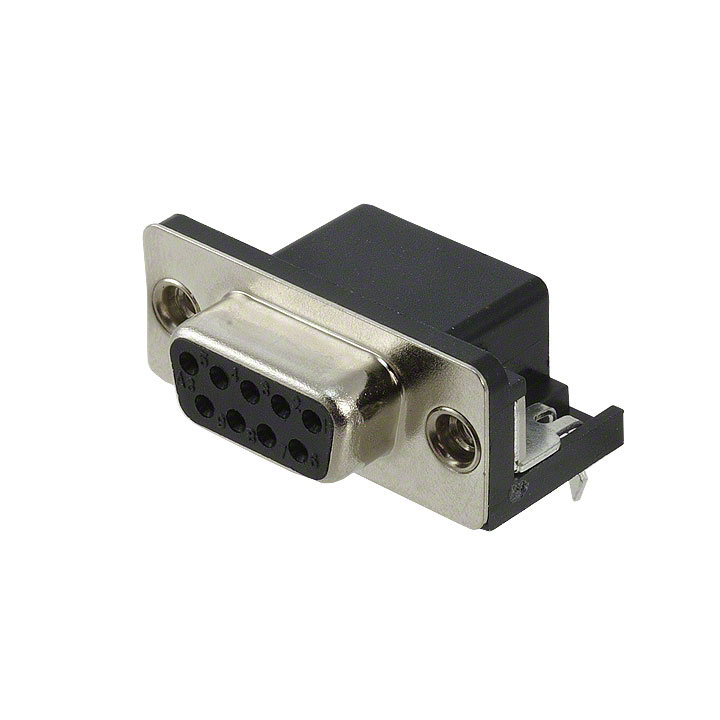

 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 9 | D-Sub | Signal | 9.4 mm | 0.37 in | Right Angle Through Hole | Housing/Shell | Solder | Board Lock | Receptacle Female Sockets | 3 A | UL94 V-0 | 4-40 | Nickel Plated Steel | 1 | DE E | |||
 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 25 | D-Sub | Signal | 9.4 mm | 0.37 in | Right Angle Through Hole | Housing/Shell | Solder | Board Lock Grounding Indents | Plug Male Pins | 3 A | UL94 V-0 | 4-40 | B DB | 3 | Nickel Plated Steel | |||

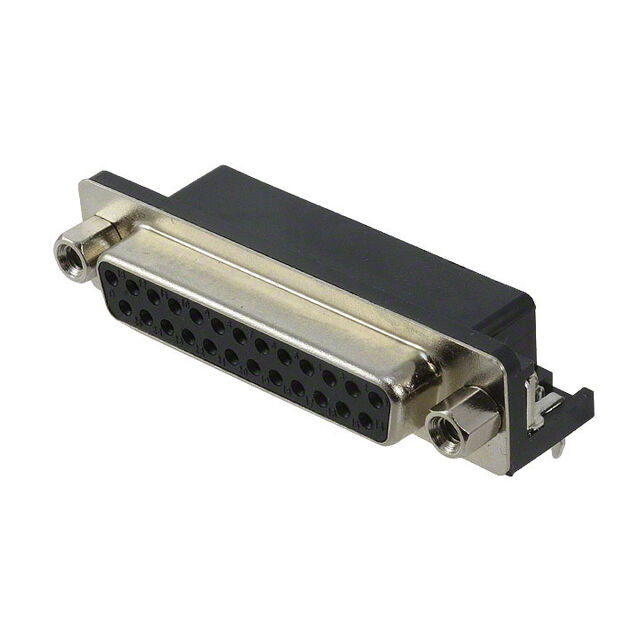

 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 25 | D-Sub | Signal | 7.2 mm | 0.283 in | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Board Lock | Receptacle Female Sockets | 3 A | UL94 V-0 | B DB | 3 | Nickel Plated Steel | ||||
Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 37 | 4 | D-Sub | Signal | 7.2 mm | 0.283 in | Right Angle Through Hole | Housing/Shell | Solder | Board Lock | Receptacle Female Sockets | 3 A | UL94 V-0 | 4-40 | DC C | ||||

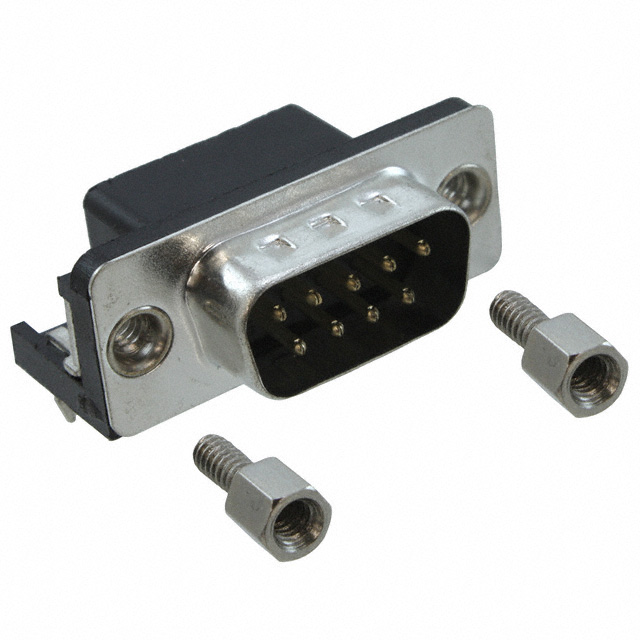

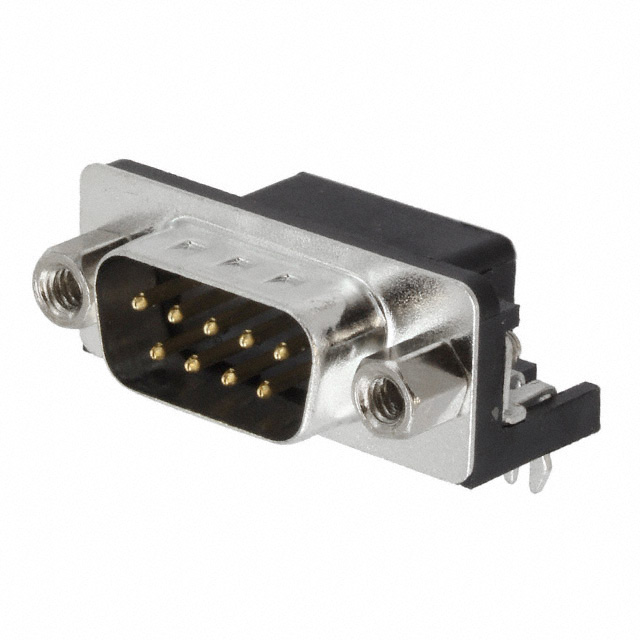

 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 9 | D-Sub | Signal | 7.2 mm | 0.283 in | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Board Lock Grounding Indents | Plug Male Pins | 3 A | UL94 V-0 | 1 | DE E | |||||

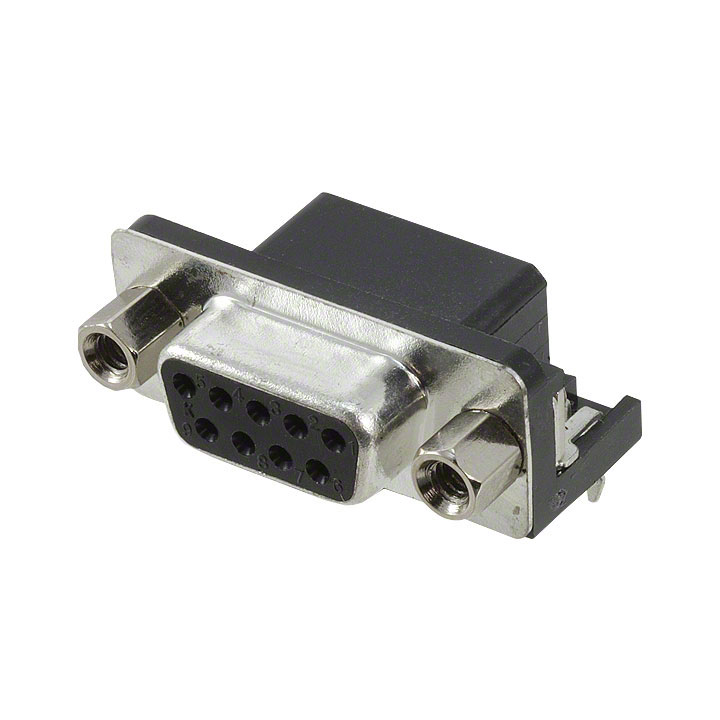

 Sullins Connector Solutions | Brass | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 V | 2 | Gold | Flash | 9 | D-Sub | Signal | 7.2 mm | 0.283 in | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | Board Lock | Receptacle Female Sockets | 3 A | UL94 V-0 | 1 | DE E |
