MW170KB1503 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 15V 15W
| Part | Applications | Input Type | Input Connector | Operating Temperature [Max] | Operating Temperature [Min] | No Load Power Consumption | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Cord Length | Cord Length | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Form | Approval Agency | Voltage - Output | Polarization | Region Utilized | Current - Output (Max) [Max] | Output Connector [diameter] | Output Connector [x] | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

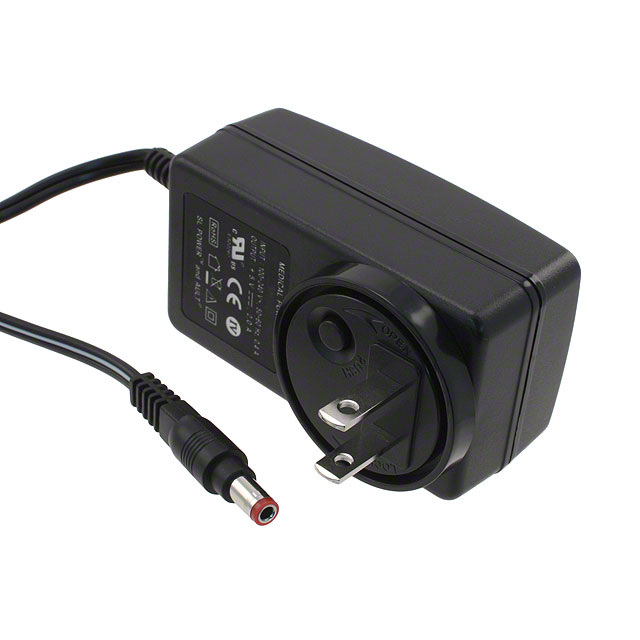

 SL POWER / Advanced Energy | Medical | Fixed Blade Multi-Blade | NEMA 1-15P Multi-Blade | 40 °C | 0 °C | 500 mW | 15 W | 100 VAC | 240 VAC | Level IV | 70.9 " | 1.8 m | 1.26 " | 33 mm | 3.3 " | 46 mm | 1.81 in | 84.6 mm | Wall Mount | CE cULus | 15 V | Positive Center | North America | 1 A | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug |

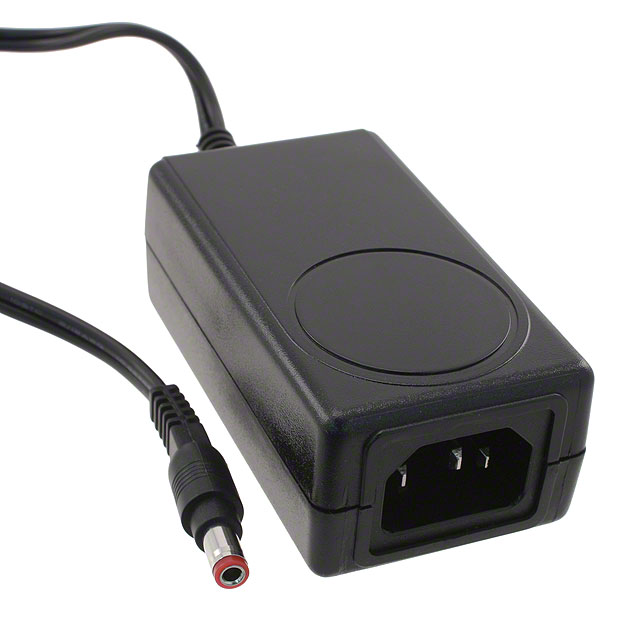

 SL POWER / Advanced Energy | Medical | Cord (Sold Separately) | IEC 320-C14 | 40 °C | 0 °C | 500 mW | 15 W | 100 VAC | 240 VAC | Level IV | 70.9 " | 1.8 m | 1.26 " | 33 mm | 3.3 " | 46 mm | 1.81 in | 84.6 mm | Desktop (Class I) | CE cULus | 15 V | Positive Center | International | 1 A | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug |
