BQ25606 Series
Manufacturer: Texas Instruments
Beta
⌘K

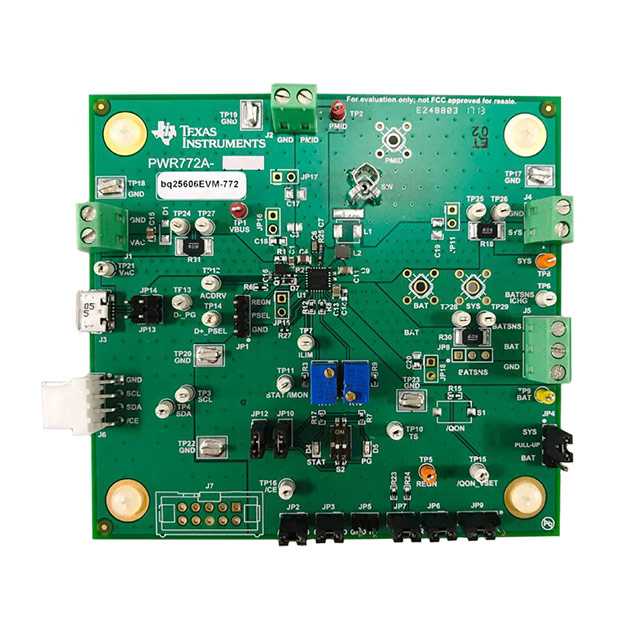

EVAL BOARD FOR BQ25606
| Part | Utilized IC / Part | Function | Supplied Contents | Type | Fault Protection | Current - Charging | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Charge Current - Max [Max] | Mounting Type | Battery Pack Voltage | Supplier Device Package | Voltage - Supply (Max) [Max] | Battery Chemistry | Number of Cells | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | BQ25606 | Battery Charger | Board(s) | Power Management | |||||||||||||
 Texas Instruments | Over Temperature Over Voltage Short Circuit | Constant - Programmable | 85 °C | -40 °C | USB | 3 A | Surface Mount | 4.4 V | 24-VQFN (4x4) | 13.5 V | Lithium Ion/Polymer | 1 | 24-VFQFN Exposed Pad | ||||
 Texas Instruments | Over Temperature Over Voltage Short Circuit | Constant - Programmable | 85 °C | -40 °C | USB | 3 A | Surface Mount | 4.4 V | 24-VQFN (4x4) | 13.5 V | Lithium Ion/Polymer | 1 | 24-VFQFN Exposed Pad |
