CXM-14 Series

Catalog

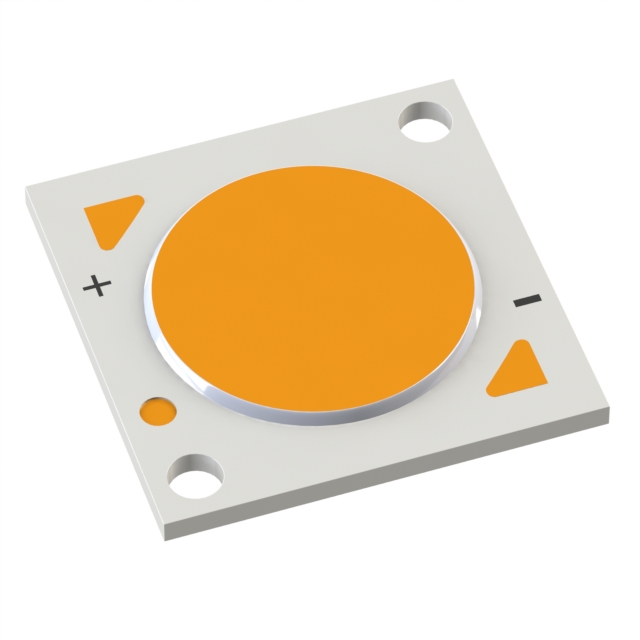

LED COB CXM-14 COOL WHT SQ 6500K

...

Part	CRI (Color Rendering Index)	Configuration	Color	CCT (K)	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Viewing Angle	Type	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test	Lens Type	Current - Test	Height [z]	CCT (K)
Luminus Devices Inc. CXM-14-65-80-36-TA60-F7-3	80	Square	Cool White	6500 K	1.8 A	14.3 mm	4055 lm	120 °	Chip On Board (COB)	169 lm/W	33.3 V	19 mm	19 mm	85 °C	Flat	720 mA	1.4 mm
Luminus Devices Inc. CXM-14-30-90-36-TU31-F4-2
Luminus Devices Inc. CXM-14-35-80-36-AA12-F3-3	80	Square	Warm White	3500 K	1 A	13.5 mm	2185 lm	120 °	Chip On Board (COB)	130 lm/W	35 V			85 °C	Flat	480 mA	1.37 mm	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-14-57-80-36-AC40-F5-2
Luminus Devices Inc. CXM-14-27-80-36-AC00-F2-3	80	Square	Warm White	2700 K	1 A	13.5 mm	1920 lm	120 °	Chip On Board (COB)	111 lm/W	36 V	19 mm	19 mm	85 °C	Flat	480 mA	1.37 mm	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-14-40-80-36-AA10-F3-3	80	Square	Neutral White	4000 K	1 A	13.5 mm	2375 lm	120 °	Chip On Board (COB)	143 lm/W	34.5 V			85 °C	Flat	480 mA	1.37 mm	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-14-30-80-36-AC00-F2-2	80	Square	Warm White	3000 K	1 A	13.5 mm	2030 lm	120 °	Chip On Board (COB)	121 lm/W	35 V	19 mm	19 mm	85 °C	Flat	480 mA	1.37 mm
Luminus Devices Inc. CXM-14-30-80-36-TC60-F7-3	80	Square	Warm White	3000 K	1.8 A	14.3 mm	3955 lm	120 °	Chip On Board (COB)	165 lm/W	33.3 V	19 mm	19 mm	85 °C	Flat	720 mA	1.4 mm	3-Step MacAdam Ellipse
Luminus Devices Inc. CXM-14-65-80-36-AC30-F4-3	80	Square	Cool White	6500 K	1.44 A	14.3 mm		120 °	Chip On Board (COB)	154 lm/W	34 V	19 mm	19 mm	85 °C	Flat	720 mA	1.37 mm
Luminus Devices Inc. CXM-14-57-80-36-TA60-F7-2	80	Square	Cool White	5700 K	1.8 A	14.3 mm		120 °	Chip On Board (COB)		33.3 V	19 mm	19 mm	85 °C	Flat	720 mA	1.4 mm	2-Step MacAdam Ellipse
