HLW19S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

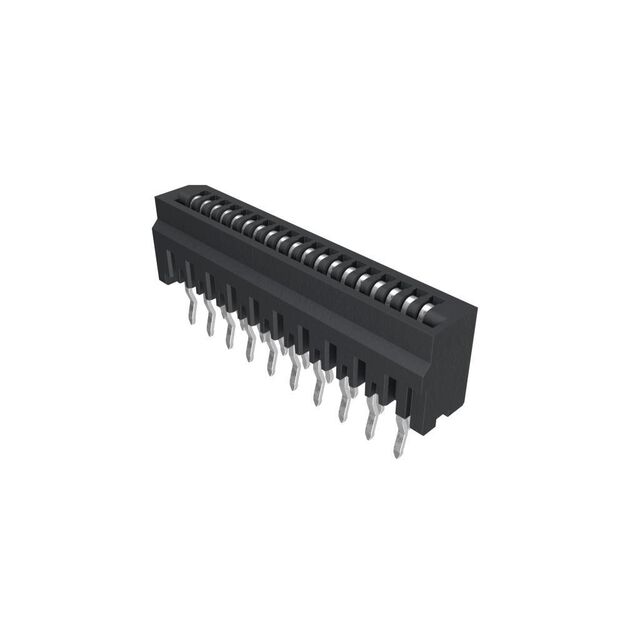

CONN FFC FPC VERT 19POS 1MM PCB
| Part | Housing Color | Housing Material | Mating Cycles | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | FFC, FCB Thickness | Material Flammability Rating | Connector/Contact Type | Termination | Number of Positions | Pitch [x] | Pitch [x] | Mounting Type | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | Polybutylene Terephthalate (PBT) Glass Filled | 30 | 100 V | 85 °C | -55 °C | Phosphor Bronze | 0.33 mm | UL94 V-0 | Contacts Vertical - 1 Sided | Kinked Pin | 19 | 0.039 in | 1 mm | Through Hole | FFC FPC | 5.9 mm | 0.232 in | Tin |
