2302317 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

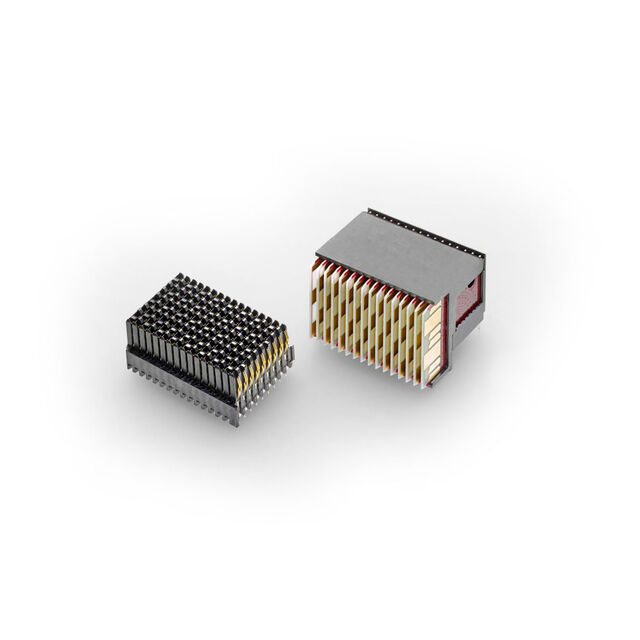

RA ASSY, 7 ROW, CENT DP, MULTIGI
| Part | Number of Columns | Mounting Type | Number of Positions Loaded | Pitch [x] | Pitch [x] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Connector Style | Contact Finish | Connector Usage | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Rows | Connector Type | Number of Positions | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Termination | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 16 | Board Edge Right Angle Through Hole | All | 0.071 in | 1.8 mm | 32 | 40 | 8 | Center MULTIG | Gold | Daughtercard | 50 µin | 1.27 µm | Black | 7 | Plug Male Blades | 112 | Board Guide | -55 °C | 125 °C | 50 VAC | Press-Fit | UL94 V-0 |
