895-076 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 76POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Rows [custom]	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions	Contact Material	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Card Type	Pitch	Pitch	Color	Number of Positions/Bay/Row [custom]	Contact Type	Termination	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Features
EDAC Inc. 895-076-524-512	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold	Side Mount Opening Unthreaded	0.128 "	3.25 mm	76	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Solder	Female	125 °C	-40 C

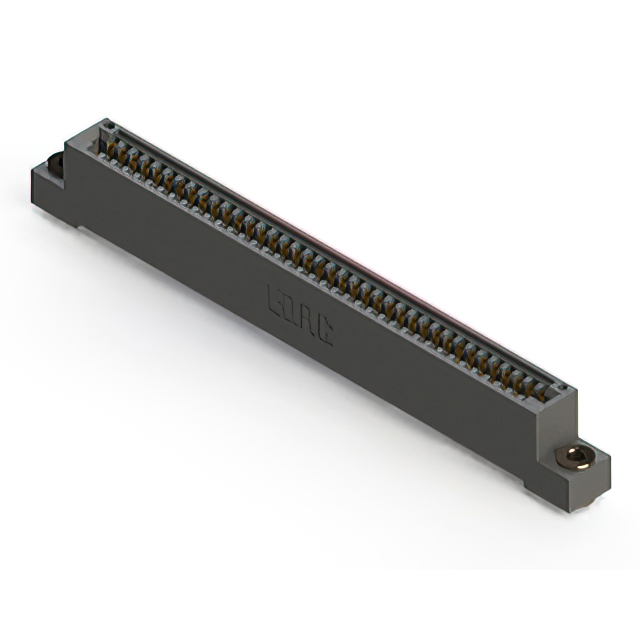

EDAC Inc. 895-076-555-203	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold	Floating Bobbin Flush Mount	0.116 "	2.95 mm	76	Copper Alloy	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Solder	Female	125 °C	-40 C	Card Extender
EDAC Inc. 895-076-541-508	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold	4-40 Threaded Insert Top Mount Opening			76	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Wire Wrap	Female	125 °C	-40 C

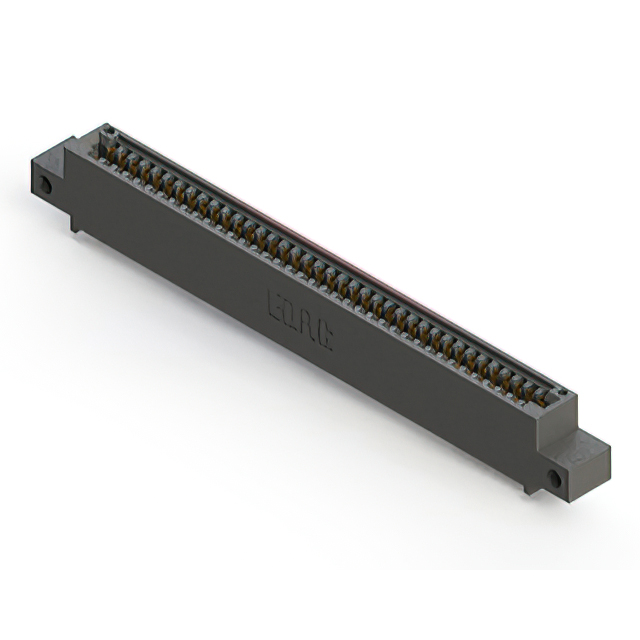

EDAC Inc. 895-076-556-512	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold	Side Mount Opening Unthreaded	0.128 "	3.25 mm	76	Copper Alloy	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Solder	Female	125 °C	-40 C	Card Extender
EDAC Inc. 895-076-523-802	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold		0.128 "	3.25 mm	76	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Solder	Female	125 °C	-40 C
EDAC Inc. 895-076-558-804	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold		0.156 "	3.96 mm	76	Copper Alloy	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Solder	Female	125 °C	-40 C
EDAC Inc. 895-076-541-507	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold	M3 Threaded Insert Top Mount Opening			76	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Wire Wrap	Female	125 °C	-40 C
EDAC Inc. 895-076-555-804	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold		0.156 "	3.96 mm	76	Copper Alloy	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Solder	Female	125 °C	-40 C	Card Extender
EDAC Inc. 895-076-541-502	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold		0.128 "	3.25 mm	76	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Wire Wrap	Female	125 °C	-40 C

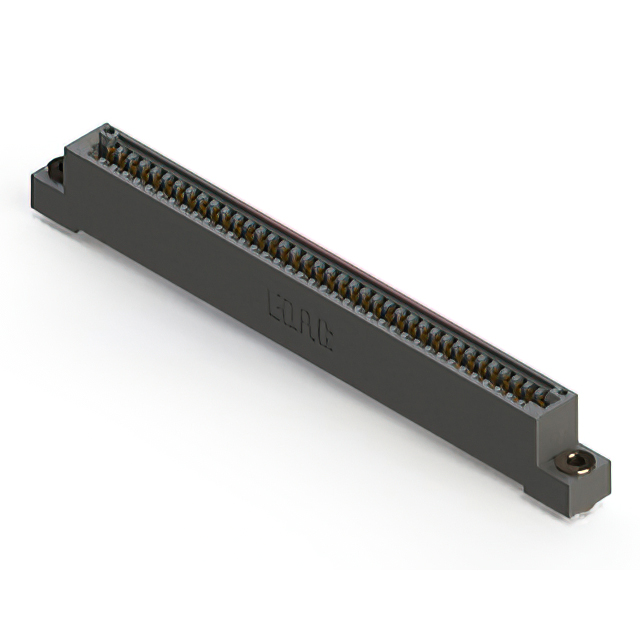

EDAC Inc. 895-076-556-203	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Dual	2	Gold	Floating Bobbin Flush Mount	0.116 "	2.95 mm	76	Copper Alloy	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	38	Cantilever	Solder	Female	125 °C	-40 C	Card Extender
